Quick Details
-
Dimension(L*W*H):
-
5950x2100x2550mm
-
Weight:
-
9200 KG
-
Drilling Diameter:
-
140-325mm, 140-325mm
-
Drilling Depth:
-
Max.380m
-
Max. Depth of Drilling:
-
380m
-
Feed Stroke:
-
6.6m
-
Working Pressure:
-
1.7-3.1MPa
-
Air Consumption:
-
17-35m3/min
-
Diameter of Rod:
-
89mm, 102mm
-
Lifting Power:
-
24T
-
Rotation Torque:
-
6500-9000N.m
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
jialongli
-
Voltage:
-
/
-
Dimension(L*W*H):
-
5950x2100x2550mm
-
Weight:
-
9200 KG
-
Drilling Diameter:
-
140-325mm, 140-325mm
-
Drilling Depth:
-
Max.380m
-
Max. Depth of Drilling:
-
380m
-
Feed Stroke:
-
6.6m
-
Working Pressure:
-
1.7-3.1MPa
-
Air Consumption:
-
17-35m3/min
-
Diameter of Rod:
-
89mm, 102mm
-
Lifting Power:
-
24T
-
Rotation Torque:
-
6500-9000N.m
Product Description

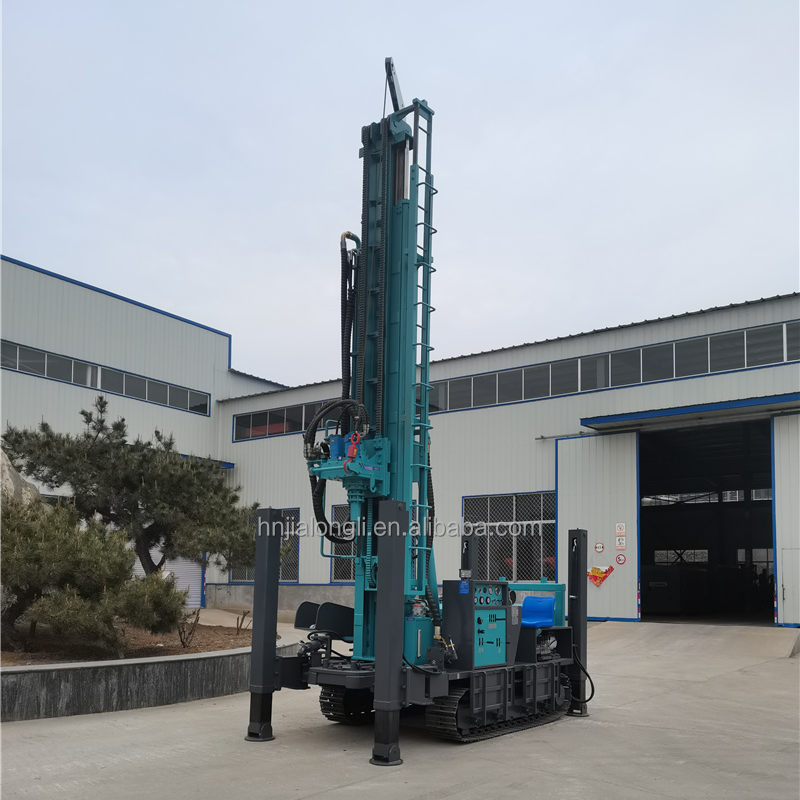

JL-380 water well drill rig the drilling diameter is 140-325mm and the drilling depth can reach to 380 meters.
JL-380 can meet most of the farming or construction water well requirement, besides, it has a small size, light weight, flexible movement, convenient transportation, etc.
Specification
|
Model
|
JL-380
|
|
Drilling Depth
|
380m
|
|
Dia. Hole
|
φ140-325mm
|
|
Working Pressure
|
1.7-3.4MPa
|
|
Air Consumption
|
17-36m³/min
|
|
Length of Rod
|
1.5m,2m,3m.6m
|
|
Dia. Of Rod
|
φ89,φ102
|
|
Diesel Engine
|
Yuchai
|
|
Engine Power
|
96Kw/2200pm
|
|
Weight
|
9200kgs
|
|
Dimension
|
5950x2100x2550mm
|
|
Dth Hammer
|
4",5",6",8" Drill hammer or CIR110, 130, 150,170
|
