Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Voltage:
-
380V(Custom other voltages)
-
Dimension(L*W*H):
-
2000*3000*300
-
Power (kW):
-
5
-
Weight (KG):
-
2000
-
Product name:
-
Stone Cnc Router
-
Keywords:
-
stone cnc router machine
-
Name:
-
3d stone cnc router marble granite engraving
-
Type:
-
cnc router for stone
-
Machine name:
-
cnc stone engraving machine cnc router
-
Machine structure:
-
Heavy duty thickened bridge steel
-
Engraving tool:
-
43.175/4/6/8/10/12.7mm
-
File format:
-
G-code/HPGL
-
Control System:
-
NCStudio
-
Motor:
-
AC servo, with reducer
Quick Details
-
Working Table Size(mm):
-
2000*3000mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Voltage:
-
380V(Custom other voltages)
-
Dimension(L*W*H):
-
2000*3000*300
-
Power (kW):
-
5
-
Weight (KG):
-
2000
-
Product name:
-
Stone Cnc Router
-
Keywords:
-
stone cnc router machine
-
Name:
-
3d stone cnc router marble granite engraving
-
Type:
-
cnc router for stone
-
Machine name:
-
cnc stone engraving machine cnc router
-
Machine structure:
-
Heavy duty thickened bridge steel
-
Engraving tool:
-
43.175/4/6/8/10/12.7mm
-
File format:
-
G-code/HPGL
-
Control System:
-
NCStudio
-
Motor:
-
AC servo, with reducer
Product Description
Specification
|
Model
|
4025-4D
|
2030-2D
|
3015-2D
|
1325-1D
|
|||
|
Working size
|
4000mm*2500mm
|
2000*3000mm
|
3000*1500mm
|
1300*2500mm
|
|||
|
Machine structure
|
Heavy duty thickened bridge steel
|
|
|
|
|||
|
Independent Control Cabinet
|
Largeindependent control box for stone machine
|
|
|
|
|||
|
Voltage
|
AC380V/50HZ
|
|
|
|
|||
|
Engraving tool
|
43.175/4/6/8/10/12.7mm
|
|
|
|
|||
|
File format
|
G-code/HPGL
|
|
|
|
|||
|
Spindle
|
380V/5.5KW*4
|
|
|
|
|||
|
Spindle speed
|
24000rpm/min
|
|
|
|
|||
|
Control System
|
NCStudio
|
|
|
|
|||
|
Motor
|
AC servo, with reducer
|
|
|
|
|||
|
Table
|
New thickened T-shaped aluminum prople + hard PVC
|
|
|
|
|||
|
Lubrication system
|
Automatic oil lubrication system
|
|
|
|
|||
|
Cooling system
|
Water pump cooling/industrial cooling
|
|
|
|
|||
|
Repeatability
|
0.01mm
|
|
|
|
|||
|
Instruction
|
G-code/HPGL/ENG/MMG/NC/U00
|
|
|
|
|||
Product Advantages

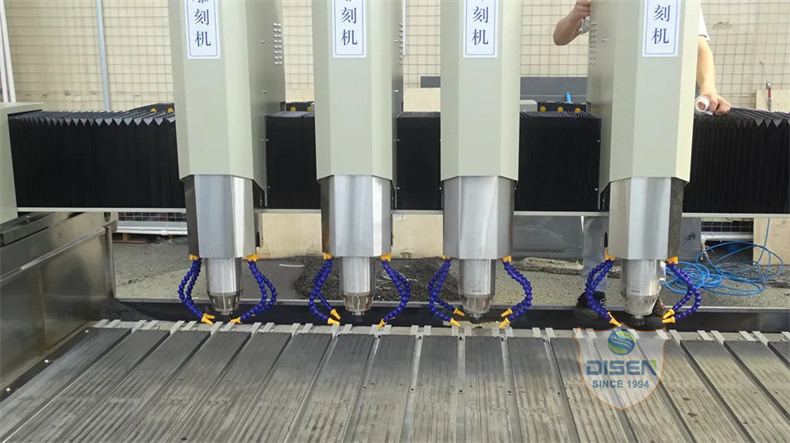

The three shafts are exclusively protected by full dust and water-proof process to ensure that the guide rail, gear and rack are free from dust and waste cutting, and the service life of accessories is extended. The lathe bed is made of high-quality steel structure and welded seamlessly. The gantry is processed by the machining center after being reinforced by the large tube to ensure the gantry has sufficient stability in the processing process. High precision rack and pinion drive, equipped with high-power 5.5kW water-cooled spindle, large cutting force, high efficiency, suitable for long-time engraving. The cable of the whole machine adopts CNC special high flexible anti-interference cable lt adopts Taiwan linear square guide rail, double row and four row sliding blocks. with large bearing capacity, stable operation, no shaking and vibration, high precision long service life and accurate cutting. This equipment is CNC digital control, with the function of power-offmemory, with the function of knife breaking and carving after power failure. Automatic oil lubrication svstem is adopted to maintain the slide guide rail bv itself and the whole machine is free of maintenance.
The three shafts are exclusively protected by full dust and water-proof process to ensure that the guide rail, gear and rack are free from dust and waste cutting, and the service life of accessories is extended. The lathe bed is made of high-quality steel structure and welded seamlessly. The gantry is processed by the machining center after being reinforced by the large tube to ensure the gantry has sufficient stability in the processing process. High precision rack and pinion drive, equipped with high-power 5.5kW water-cooled spindle, large cutting force, high efficiency, suitable for long-time engraving. The cable of the whole machine adopts CNC special high flexible anti-interference cable lt adopts Taiwan linear square guide rail, double row and four row sliding blocks. with large bearing capacity, stable operation, no shaking and vibration, high precision long service life and accurate cutting. This equipment is CNC digital control, with the function of power-offmemory, with the function of knife breaking and carving after power failure. Automatic oil lubrication svstem is adopted to maintain the slide guide rail bv itself and the whole machine is free of maintenance.
