Quick Details
-
Brand Name:
-
DJYOKE
-
Model Number:
-
HL-12-18W-300MA-WZ
-
Output Frequency:
-
0
-
Efficiency:
-
86%
-
Size:
-
88*38*22mm
-
Protections:
-
Short Circuit Overtemp Overload Overvolt
-
Weight:
-
34.8g
-
Color:
-
White
-
Feature:
-
Small Size
-
Type:
-
Consant Current
-
Application:
-
LED Lighting
-
Product:
-
LED Power Suply
-
Service:
-
Customised OEM ODM
Quick Details
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
0.04
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DJYOKE
-
Model Number:
-
HL-12-18W-300MA-WZ
-
Output Frequency:
-
0
-
Efficiency:
-
86%
-
Size:
-
88*38*22mm
-
Protections:
-
Short Circuit Overtemp Overload Overvolt
-
Weight:
-
34.8g
-
Color:
-
White
-
Feature:
-
Small Size
-
Type:
-
Consant Current
-
Application:
-
LED Lighting
-
Product:
-
LED Power Suply
-
Service:
-
Customised OEM ODM
Main products
product details

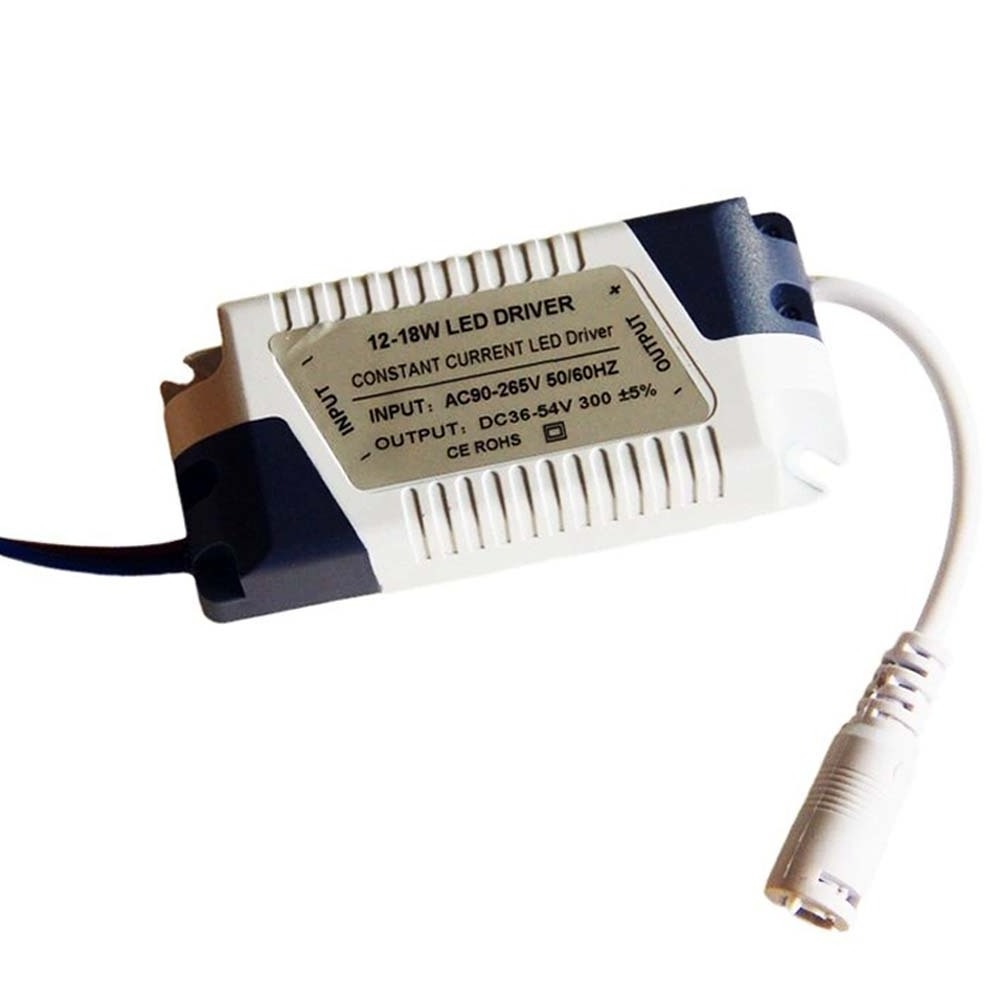

led driver 12-18w DC 36-65V 300mA plastic housing constant current led driver ic internal bulb light 18w led power supply 03
led driver 12-18w 300mA plastic box constant current led driver ic internal bulb light 18w led driver 4
|
1.Input parameters
|
Parameters
|
Unit
|
Test description
|
Minimum
|
Typical
|
Maximum
|
||||
|
|
Input Voltage
|
V(AC)
|
Normal
|
90
|
220
|
265
|
||||
|
|
Input frequency
|
HZ
|
Normal
|
50
|
50
|
60
|
||||
|
|
Power factor
|
PF
|
Normal
|
0.578
|
0.619
|
0.665
|
||||
|
|
Input Inrush Current
|
A
|
Cold start under normal conditions
|
|
|
|
||||
|
2.Output parameters
|
Parameters
|
Unit
|
Minimum
|
Typical
|
Maximum
|
|
||||
|
|
Output current
|
MA
|
216
|
273
|
285
|
|
||||
|
|
Output voltage
|
V
|
36
|
48
|
65
|
|
||||
|
|
Output ripple
|
MV
|
|
|
|
|
||||
|
|
Constant current accuracy
|
%
|
|
|
|
|
||||
|
3.Overall performance
36V 300MA Test condition
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output Voltage(V)
|
Output current(MA)
|
Power factor
|
Efficience
|
||||
|
|
90
|
12.01
|
36
|
278
|
0.629
|
0.83
|
||||
|
|
100
|
12.24
|
36
|
285
|
0.632
|
0.84
|
||||
|
|
110
|
11.97
|
36
|
283
|
0.620
|
0.85
|
||||
|
|
120
|
12.02
|
36
|
285
|
0.615
|
0.85
|
||||
|
|
170
|
11.67
|
36
|
280
|
0.636
|
0.86
|
||||
|
|
220
|
11.47
|
36
|
278
|
0.603
|
0.87
|
||||
|
|
240
|
11.59
|
36
|
278
|
0.593
|
0.86
|
||||
|
|
265
|
11.60
|
36
|
278
|
0.578
|
0.86
|
||||
|
42V 300MA Test condition
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
90
|
13.73
|
42
|
274
|
0.627
|
0.84
|
||||
|
|
100
|
14.07
|
42
|
282
|
0.632
|
0.84
|
||||
|
|
110
|
13.81
|
42
|
281
|
0.623
|
0.85
|
||||
|
|
120
|
13.86
|
42
|
283
|
0.620
|
0.86
|
||||
|
|
170
|
13.40
|
42
|
278
|
0.643
|
0.87
|
||||
|
|
220
|
13.26
|
42
|
275
|
0.611
|
0.87
|
||||
|
|
240
|
13.24
|
42
|
276
|
0.601
|
0.88
|
||||
|
|
265
|
13.33
|
42
|
276
|
0.587
|
0.87
|
||||
|
48V 300MA Test condition
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
90
|
15.03
|
48
|
262
|
0.628
|
0.84
|
||||
|
|
100
|
15.77
|
48
|
277
|
0.630
|
0.84
|
||||
|
|
110
|
15.62
|
48
|
278
|
0.625
|
0.85
|
||||
|
|
120
|
15.66
|
48
|
281
|
0.624
|
0.86
|
||||
|
|
170
|
15.10
|
48
|
276
|
0.649
|
0.88
|
||||
|
|
220
|
14.97
|
48
|
273
|
0.619
|
0.88
|
||||
|
|
240
|
14.97
|
48
|
274
|
0.608
|
0.88
|
||||
|
|
265
|
14.98
|
48
|
274
|
0.596
|
0.88
|
||||
|
54V 300MA Test condition
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
90
|
15.83
|
54
|
245
|
0.632
|
0.84
|
||||
|
|
100
|
17.12
|
54
|
268
|
0.630
|
0.85
|
||||
|
|
110
|
17.36
|
54
|
275
|
0.626
|
0.86
|
||||
|
|
120
|
17.42
|
54
|
278
|
0.624
|
0.87
|
||||
|
|
170
|
16.91
|
54
|
274
|
0.654
|
0.87
|
||||
|
|
220
|
16.65
|
54
|
271
|
0.625
|
0.88
|
||||
|
|
240
|
16.77
|
54
|
272
|
0.616
|
0.88
|
||||
|
|
265
|
16.63
|
54
|
272
|
0.601
|
0.88
|
||||
|
60V 300MA Test condition
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
90
|
16.30
|
60
|
227
|
0.636
|
0.84
|
||||
|
|
100
|
17.92
|
60
|
253
|
0.632
|
0.85
|
||||
|
|
110
|
18.84
|
60
|
269
|
0.626
|
0.86
|
||||
|
|
120
|
19.08
|
60
|
274
|
0.626
|
0.86
|
||||
|
|
170
|
18.58
|
60
|
271
|
0.658
|
0.88
|
||||
|
|
220
|
18.20
|
60
|
268
|
0.635
|
0.88
|
||||
|
|
240
|
18.35
|
60
|
270
|
0.617
|
0.88
|
||||
|
|
265
|
18.42
|
60
|
270
|
0.605
|
0.88
|
||||
|
65V 300MA Test condition
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
90
|
16.67
|
65
|
216
|
0.642
|
0.84
|
||||
|
|
100
|
18.44
|
65
|
240
|
0.634
|
0.85
|
||||
|
|
110
|
19.71
|
65
|
260
|
0.628
|
0.86
|
||||
|
|
120
|
20.25
|
65
|
268
|
0.626
|
0.86
|
||||
|
|
170
|
20.06
|
65
|
272
|
0.665
|
0.88
|
||||
|
|
220
|
19.87
|
65
|
268
|
0.635
|
0.88
|
||||
|
|
240
|
19.85
|
65
|
268
|
0.625
|
0.88
|
||||
|
|
265
|
19.77
|
65
|
268
|
0.610
|
0.88
|
||||
|
4. Using environment
Parameters
|
Parameters
|
Unit
|
Test description
|
Minimum
|
Typical
|
Maximum
|
|
|
Working ambient temperature
|
℃
|
Full load operation
|
-18
|
+40
|
+60
|
|
|
Storage ambient temperature
|
℃
|
|
-25
|
25
|
+75
|
