Quick Details
-
Voltage:
-
380v
-
Application:
-
sawmills, wood cutting, all workshop for sawing wood
-
Weight (KG):
-
11000 KG
-
Power (kW):
-
2.2kw
-
Max.Working Width(mm):
-
400mm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Automatic twin circular blade sawmill line
-
Max sawing diameter:
-
400mm
-
Max sawing length:
-
4000mm
-
Log loading:
-
Automatic loading deck(1set)
-
Log turning:
-
Pneumatic(4units)
-
Log locking:
-
Pneumatic(4units)
-
Cutting speed:
-
Adjustable by frequency converter
-
Carriage walking motor:
-
2.2kw
-
Length of carriage track:
-
9000mm
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YSDMILL
-
Usage:
-
wood cutting
-
Voltage:
-
380v
-
Application:
-
sawmills, wood cutting, all workshop for sawing wood
-
Weight (KG):
-
11000 KG
-
Power (kW):
-
2.2kw
-
Max.Working Width(mm):
-
400mm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Automatic twin circular blade sawmill line
-
Max sawing diameter:
-
400mm
-
Max sawing length:
-
4000mm
-
Log loading:
-
Automatic loading deck(1set)
-
Log turning:
-
Pneumatic(4units)
-
Log locking:
-
Pneumatic(4units)
-
Cutting speed:
-
Adjustable by frequency converter
-
Carriage walking motor:
-
2.2kw
-
Length of carriage track:
-
9000mm
Specification
|

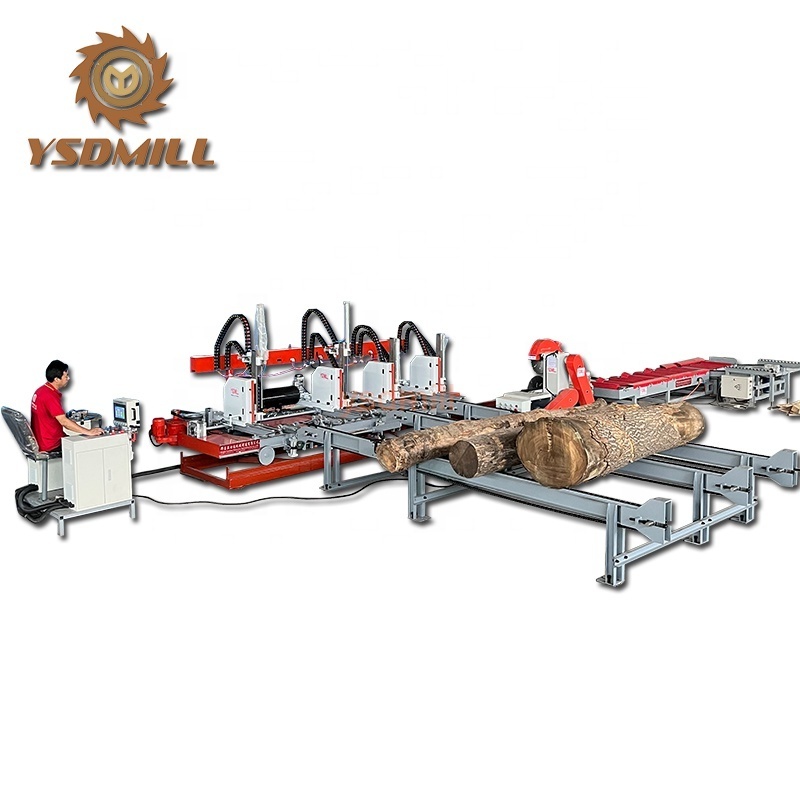

Automatic twin circular blade sawmill line
|
|
|
|
|||
|
Model
|
YACL40-4000
|
YSL40-1200
|
YSL40-1500
|
|||
|
Max sawing diameter
|
400mm
|
1200MM
|
1500MM
|
|||
|
Max sawing length
|
4000mm
|
3000MM
|
3000MM
|
|||
|
Log loading
|
Automatic loading deck(1set)
|
Hydraulic
|
Hydraulic
|
|||
|
Log turning
|
Pneumatic(4units)
|
4 Units
|
4 Units
|
|||
|
Log locking
|
Pneumatic(4units)
|
|
|
|||
|
Moveable headblocks(Taper)
|
Pneumatic(2units)
|
|
|
|||
|
Cutting speed
|
Adjustable by frequency converter
|
|
|
|||
|
Cutting measurement
|
Automatic
|
|
|
|||
|
Carriage walking motor
|
2.2kw
|
|
|
|||
|
Measurement motor
|
1.5kw
|
4kw
|
7.5kw
|
|||
|
Voltage
|
380V/50Hz/3Phase
|
|
|
|||
|
Board discharge roller conveyor length
|
4500mm
|
|
|
|||
|
Roller conveyor width
|
650mm
|
|
|
|||
|
Qty of chain arm
|
2units
|
|
|
|||
|
Length of carriage track
|
9000mm
|
|
|
|||
|
Custom made service are provided
|
2500KG
|
3100KG
|
4000KG
|
|||
Product Description
Details Images
Automatic
log
loading system
Sawmill wood cutting roller conveyor machine for timber stack
Pneumatic automatic lock log headblocks, with automatic hook in and hook out.
Automatic
log turning,
log locking
High quality motor, stronger power, longer service life
Touch screen with joy stick, japan and germany electric parts for reliable operation.
Packing & Delivery
Plastic film outside or as customer requirement
