Quick Details
-
Model Number:
-
HY-F35/50/75/100/120/150DC
-
Place of Origin:
-
Anhui, China
-
Material:
-
Full High Quality SUS304
-
Volume:
-
35L/50L/75L/100L/120L/150L
-
Working Pressure:
-
0.22 Mpa
-
Max Working Pressure::
-
0.23 Mpa
-
Working Temperature:
-
134℃
-
Heat average:
-
≤±1℃
-
Timer:
-
0~99min or 0~99hour59min
-
Adjustment of temperature:
-
105~134℃
-
Sterilization Objects:
-
All Food in vacuum package, canning, bottle,glass jar
-
Autoclave Application:
-
Food Sterilization
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Brand Name:
-
HOUYUAN MEDICAL
-
Model Number:
-
HY-F35/50/75/100/120/150DC
-
Place of Origin:
-
Anhui, China
-
Material:
-
Full High Quality SUS304
-
Volume:
-
35L/50L/75L/100L/120L/150L
-
Working Pressure:
-
0.22 Mpa
-
Max Working Pressure::
-
0.23 Mpa
-
Working Temperature:
-
134℃
-
Heat average:
-
≤±1℃
-
Timer:
-
0~99min or 0~99hour59min
-
Adjustment of temperature:
-
105~134℃
-
Sterilization Objects:
-
All Food in vacuum package, canning, bottle,glass jar
-
Autoclave Application:
-
Food Sterilization

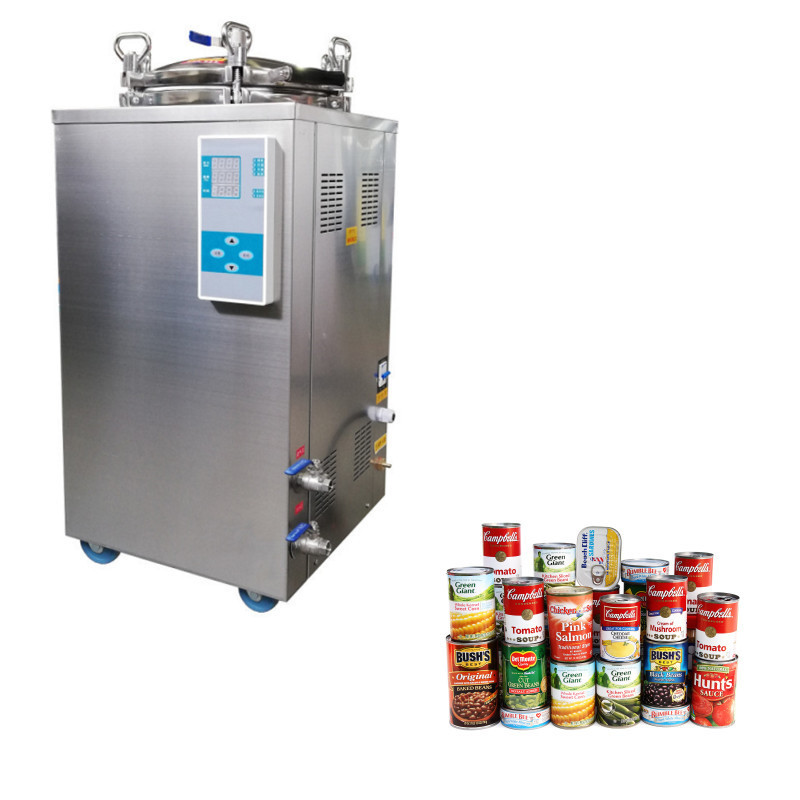

35 Liter Counter Pressure Autoclave Small Retort Autoclave For Food Sterilization
This counter pressure retort is a vertical type food sterilizer, widely used in food sterilization, suitable for all kinds of canned food, bottle food, vacuum packaging food, etc.
Main Features:
Safety performance:
When the steam over-pressure is 0.25MPa, the pressure will be released automatically. When the temperature exceeds 140 ℃, the power supply will be cut off automatically, and the double safety protection, water cut-off and overheating protection, and current overload automatic cut-off safety interlock device protection will be provided.
* Equipped with timer to automatically control the sterilization time.
* This product is equipped with safety valve, with steam over-pressure 0.25MPa self relief, when the temperature exceeds 140 ℃, the power supply is automatically cut off, double safety protection, water cut-off overheating protection, current overload automatic cut-off safety interlock device protection, safe and reliable use.
* This product is suitable for the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is an ideal equipment for aseptic test in Food Research Institute.
* The whole machine is made of high-quality stainless steel, which has the advantages of corrosion resistance, easy maintenance and long service life.
|
Model
|
HY-F35DC
|
HY-F50DC
|
HY-F75DC
|
HY-F100DC
|
HY-F120DC
|
HY-F150DC
|
|||||
|
Volume
|
35 liter
|
50 liter
|
75 liter
|
100 liter
|
120 liter
|
150 liter
|
|||||
|
Chamber
|
318*450mm
|
340*550mm
|
400*600mm
|
440*650mm
|
480*660mm
|
510*740mm
|
|||||
|
Sterilizing Baskets
|
2pcs
|
2pcs
|
2pcs
|
2pcs
|
2pcs
|
2pcs
|
|||||
|
Basket Size
per pc
|
290*190mm
|
315*250mm
|
370*250mm
|
410*250mm
|
445*250mm
|
480*270mm
|
|||||
|
Working Pressure
|
0.22MPa
|
|
|
|
|
|
|||||
|
Working Temperature
|
134℃
|
|
|
|
|
|
|||||
|
Max. Working Pressure
|
0.23MPa
|
|
|
|
|
|
|||||
|
Heat Average
|
≤±1℃
|
|
|
|
|
|
|||||
|
Temperature Range
|
105~134℃
|
|
|
|
|
|
|||||
|
Timer
|
0~99min or 0~99hour59min
|
|
|
|
|
|
|||||
|
Voltage
|
AC110-220V±10%, 50-60Hz
|
|
|
|
|
|
|||||
|
Power Supply
|
2.5KW
|
3KW
|
4.5KW
|
4.5KW
|
6KW
|
6KW
|
|||||
|
Overall Size mm
|
470*450*840
|
520*500*970
|
550*530*990
|
580*560*1060
|
630*610
*1130
|
660*640
*1130
|
|||||
|
Transportation Size mm
|
570*570*1000
|
610*610*1130
|
650*650*1150
|
680*680*1220
|
730*730
*1280
|
760*760
*1280
|
|||||
|
G.W./N.W.
|
64/46 KG
|
75/56 KG
|
90/67 KG
|
98/73 KG
|
126/101 KG
|
136/111 KG
|
|||||
