Quick Details
-
Voltage:
-
380V
-
Power:
-
9Kw
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1000*1200
-
Product name:
-
Retort
-
Material:
-
SUS304
-
Function:
-
sterilization
-
Type:
-
water spray
-
Control system:
-
PLC
-
Package:
-
Wooden Case
-
Feature:
-
Rapid Sterilization
-
Color:
-
Silver
-
Sterilizing way:
-
121℃ Sterilization
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KTL
-
Voltage:
-
380V
-
Power:
-
9Kw
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1000*1200
-
Product name:
-
Retort
-
Material:
-
SUS304
-
Function:
-
sterilization
-
Type:
-
water spray
-
Control system:
-
PLC
-
Package:
-
Wooden Case
-
Feature:
-
Rapid Sterilization
-
Color:
-
Silver
-
Sterilizing way:
-
121℃ Sterilization

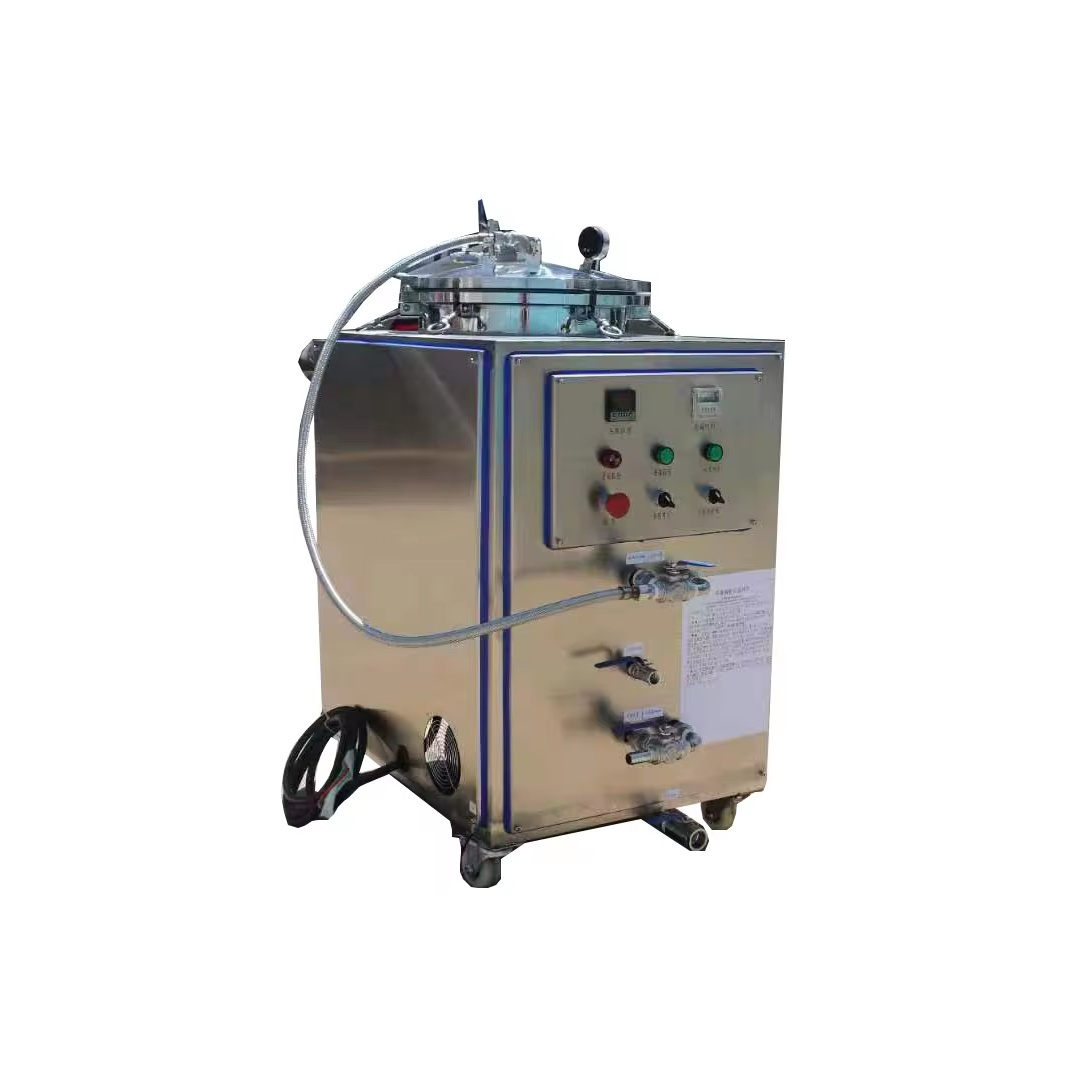

Equipment Description
KTL series high temperature autoclave adopts microcomputer program control and electric heating method. Water is injected directly into the sterilization chamber to heat and produce high-pressure steam required for sterilization.
After sterilization, compressed air is supplied from the outside and cooled for 3 minutes, and the internal temperature will be reduced by 30 to 40 ° C. The sterilizer is designed for boiling sterilization and rapid cooling pressure sterilization. The boiling point range is set to ≤ 100 °C. Rapid cooling pressure sterilization range temperature pre-selected from 105 °c to 134 °c.
The heating tube has overload protection and a buzzer will sound an alarm to indicate the sterilized end. Easy to operate, safe and reliable, suitable for food packaging and utensils and other items disinfection and sterilization.
Equipment Advantages
Equipment characteristics
(1) Built-in electric heat pipe heating, heating efficiency is high, heating speed is fast;
(2) Built-in stainless steel basket, hand wheel rotation, pan cover translation opening, screw structure seal; Easy and fast operation;
(3) The equipment has time control, temperature control, liquid level control, water shortage alarm, sterilization end buzzer prompt function, easy to use and reliable
Equipment technical parameters
|
Model number
|
KTL-50L
|
KTL-100L
|
KTL-150L
|
||
|
Volume
|
50L
|
100L
|
150L
|
||
|
Material
|
SUS 304
|
|
|
||
|
Operating temperature
|
80-125℃
|
|
|
||
|
Working pressure
|
0.12-0.2MPA
|
|
|
||
|
Internal dimension
|
400*600mm
|
400*800mm
|
500*800mm
|
||
|
Power
|
4.5KW
|
12KW
|
15KW
|
||
Scope of application
