Quick Details
-
Type:
-
Continuous Geared Hinges
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOTI
-
Model Number:
-
YHG011
-
Product Name:
-
Continuous Geared Hinges
-
Material:
-
Aluminum
-
Finish:
-
Clear Aluminum/Dark Bronze Anodized
-
Normal Size:
-
83"/95"/119"/Customized
-
Feature:
-
Easy Installation
-
Screw:
-
Supplied
-
MOQ:
-
100PCS
-
Brand:
-
Yoti
-
Origin:
-
CN
Quick Details
-
Warranty:
-
1 Year
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Type:
-
Continuous Geared Hinges
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOTI
-
Model Number:
-
YHG011
-
Product Name:
-
Continuous Geared Hinges
-
Material:
-
Aluminum
-
Finish:
-
Clear Aluminum/Dark Bronze Anodized
-
Normal Size:
-
83"/95"/119"/Customized
-
Feature:
-
Easy Installation
-
Screw:
-
Supplied
-
MOQ:
-
100PCS
-
Brand:
-
Yoti
-
Origin:
-
CN
Product Description
Yoti Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
|
Length (inches)
|
Length (mm)
|
Hole Count (Door)
|
Hole Count (Jamb)
|
|
83
|
2108
|
19
|
19
|
|
95
|
2413
|
20
|
20
|
|
119
|
3023
|
23
|
23
|
◇

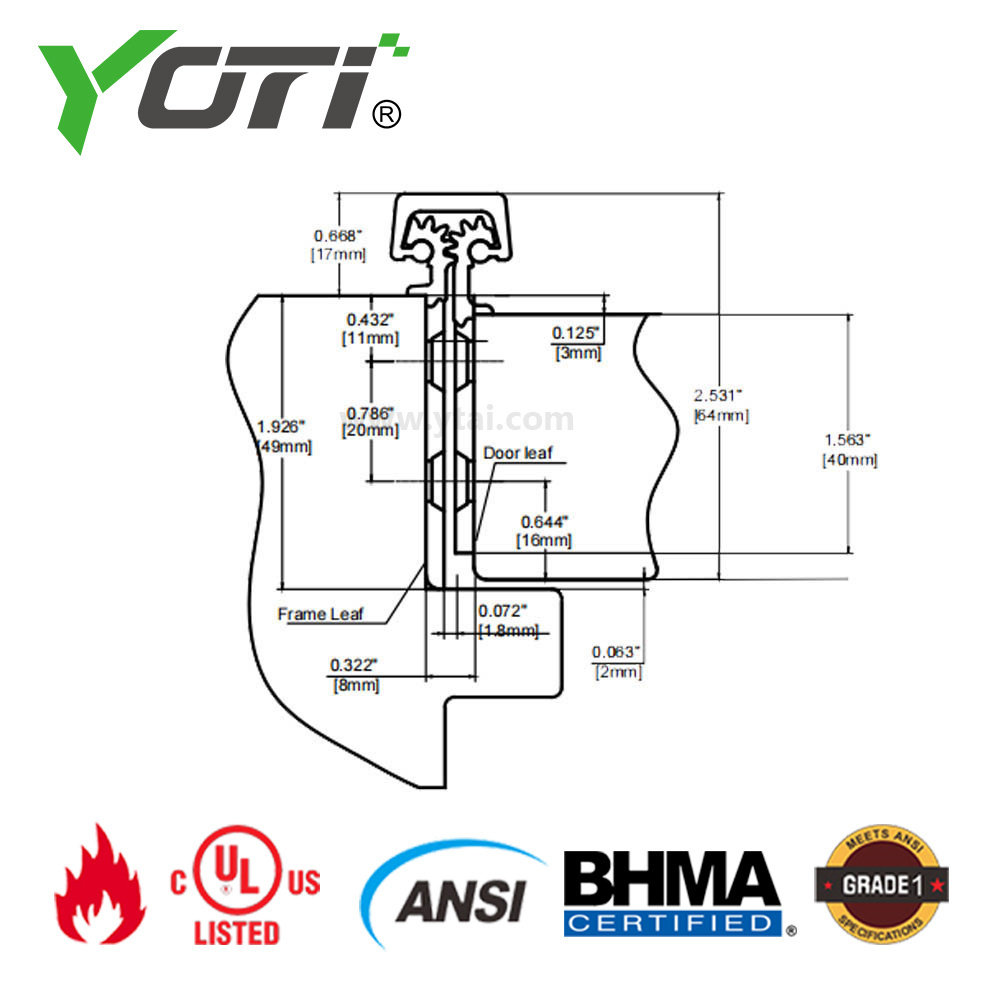

CLEARANCE: 5/16" (8 mm) hinge side
Plus standard lockside clearance
◇FASTENERS: #12-24 X 11/16" Flat Head Self-Drill Screws
◇LENGTH OPITIONS: 83" & 95" & 119“ & Custom
◇DOOR REINFORCEMENT:
None needed to 200 lbs
Use 16 gauge channel over 200 lbs
Use 16 gauge channel over 200 lbs
◇FRAME REINFORCEMENT: None needed to 200 lbs
Use 16 gauge channel over 200 lbs
◇FIRE RATING: Up to 3 Hours.
Use 16 gauge channel over 200 lbs
◇FIRE RATING: Up to 3 Hours.
◇SPECIAL FEATURES:
For new construction
For renovation with new door and / or frames
No mortising of doors or frame required
Will cover hinge cut outs in frames
Flush mount no inset
Frame and door leaf alignment ribs for proper hinge location
No mortising of doors or frame required
Will cover hinge cut outs in frames
Flush mount no inset
Frame and door leaf alignment ribs for proper hinge location
