Quick Details
-
Brand Name:
-
AIK
-
Model Number:
-
100-02
-
Measurement parameters:
-
Wind speed and wind direction
-
Power Supply:
-
12...24VDC
-
Operating temperature:
-
-40 ... +85 °C (-40 ... +185°F)
-
Relative humidity:
-
0 ... 100 %RH
-
Air Pressure:
-
10 ... 1100hPa
-
Power consumption:
-
8...15mA at 12VDC
-
Interface:
-
RS232/RS485
-
Communication protocols:
-
ASCII,Hexadecimal and Customized
-
Dimension:
-
16mm*16mm*18.5mm
-
Certification:
-
ISO9001
Quick Details
-
Warranty:
-
2 Years
-
Type:
-
ultrasonic, Ultrasonic
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AIK
-
Model Number:
-
100-02
-
Measurement parameters:
-
Wind speed and wind direction
-
Power Supply:
-
12...24VDC
-
Operating temperature:
-
-40 ... +85 °C (-40 ... +185°F)
-
Relative humidity:
-
0 ... 100 %RH
-
Air Pressure:
-
10 ... 1100hPa
-
Power consumption:
-
8...15mA at 12VDC
-
Interface:
-
RS232/RS485
-
Communication protocols:
-
ASCII,Hexadecimal and Customized
-
Dimension:
-
16mm*16mm*18.5mm
-
Certification:
-
ISO9001
wind speed and wind direction sensor
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

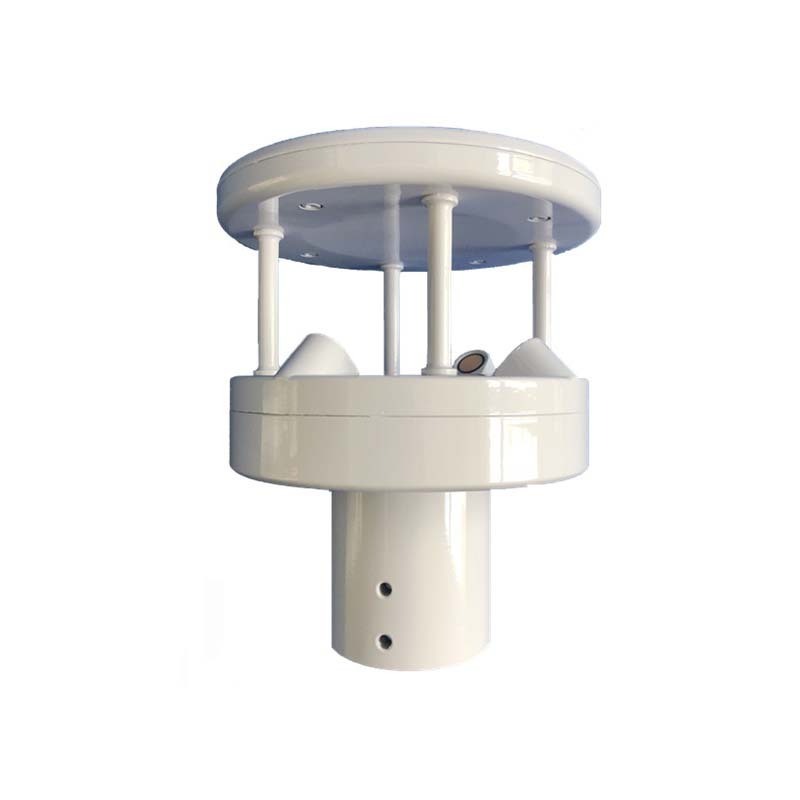

100-02SH series ultrasonic wind speed&direction sensor is a portable digital sensor developed by our company combined with years
of experience in meteorological product development and using the latest wind measurement technology (ultrasonic).
The sensor can measure wind speed and direction at the same time. It has the characteristics of compact structure, no moving
parts, sturdiness and durability, easy installation and maintenance-free features. It is an intelligent design specially designed
for a wide range of meteorological products and inconvenient on-site installation and maintenance sensor.
The sensor has low power consumption and can be equipped with a solar charging board for mobile weather monitoring.
FEATURE:
* No moving parts
* Compact and easy installation
* Strong anti-interference
* High accuracy
* maintenance-free
APPLICATION:
* Environmental monitoring
* Airport
* Bridge and Tunnel engineering
* Emergency meteorological
* Traffic
* Urban environment
* Automatic weather station
* hydraulic engineering
* Wind power station
of experience in meteorological product development and using the latest wind measurement technology (ultrasonic).
The sensor can measure wind speed and direction at the same time. It has the characteristics of compact structure, no moving
parts, sturdiness and durability, easy installation and maintenance-free features. It is an intelligent design specially designed
for a wide range of meteorological products and inconvenient on-site installation and maintenance sensor.
The sensor has low power consumption and can be equipped with a solar charging board for mobile weather monitoring.
FEATURE:
* No moving parts
* Compact and easy installation
* Strong anti-interference
* High accuracy
* maintenance-free
APPLICATION:
* Environmental monitoring
* Airport
* Bridge and Tunnel engineering
* Emergency meteorological
* Traffic
* Urban environment
* Automatic weather station
* hydraulic engineering
* Wind power station
Product Description
Specification
|
item
|
value
|
|
Warranty
|
2 Years
|
|
Type
|
ultrasonic
|
|
Certification
|
ISO9001
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Jiangsu
|
|
Brand Name
|
AIK
|
|
Model Number
|
100-02
|
|
Measurement parameters
|
Wind speed and wind direction
|
|
Type
|
Ultrasonic
|
|
Power Supply
|
12...24VDC
|
|
Operating temperature
|
-40 ... +85 °C (-40 ... +185°F)
|
|
Relative humidity
|
0 ... 100 %RH
|
|
Air Pressure
|
10 ... 1100hPa
|
|
Power consumption
|
8...15mA at 12VDC
|
|
Interface
|
RS232/RS485
|
|
Communication protocols
|
ASCII,Hexadecimal and Customized
|
|
Dimension
|
16mm*16mm*18.5mm
|
Wind Measurement Performance
|
Observation range
|
0 ... 60 m/s (134 mph)
|
|
|
Response time
|
0.25 s
|
|
|
Available variables
|
Average, Maximum, and Minimum
|
|
|
Accuracy
|
±3 % at 10 m/s (22 mph)
|
|
|
Output resolution
|
0.1 m/s (km/h, mph, knots)
|
|
|
Wind direction
|
|
|
|
Azimuth
|
0 ... 360°
|
|
|
Response time
|
0.25 s
|
|
|
Available variables
|
Average, Maximum, and Minimum
|
|
|
Accuracy
|
±3°
|
|
|
Output resolution
|
0. 1°
|
|
