Quick Details
-
Model Number:
-
LCZ-35
-
Coil Number:
-
Yes
-
Use:
-
Measurement Protection
-
Coil Structure:
-
Yes
-
Product:
-

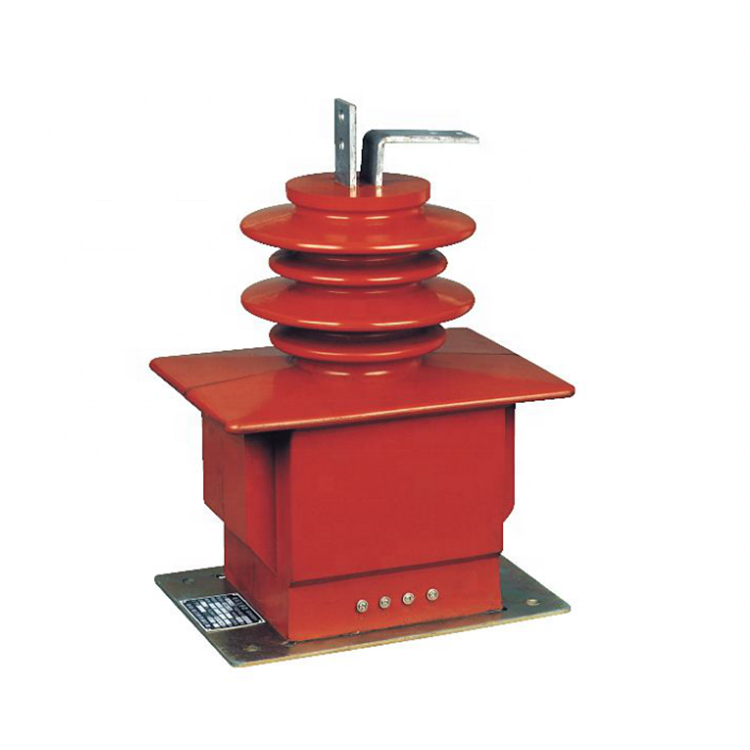

LCZ-35 Current Transformer
-
Rated Voltage:
-
35kV
-
Product name:
-
Current Transformer
-
Rated frequency:
-
50Hz/60Hz
-
Rated Second Current:
-
5A(2A,1A)
-
Type:
-
Full-Enclosed Post-Type
-
Material:
-
Copper
-
Port:
-
Ningbo/Shanghai
-
Certification:
-
ISO9001
-
OEM:
-
Offered
-
Rated Primary Voltage:
-
35
-
Rated Secondary Voltage:
-
35
-
Power:
-
Yes
Quick Details
-
Phase:
-
Single
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AISO/OEM
-
Model Number:
-
LCZ-35
-
Coil Number:
-
Yes
-
Use:
-
Measurement Protection
-
Coil Structure:
-
Yes
-
Product:
-
LCZ-35 Current Transformer
-
Rated Voltage:
-
35kV
-
Product name:
-
Current Transformer
-
Rated frequency:
-
50Hz/60Hz
-
Rated Second Current:
-
5A(2A,1A)
-
Type:
-
Full-Enclosed Post-Type
-
Material:
-
Copper
-
Port:
-
Ningbo/Shanghai
-
Certification:
-
ISO9001
-
OEM:
-
Offered
-
Rated Primary Voltage:
-
35
-
Rated Secondary Voltage:
-
35
-
Power:
-
Yes
outdoor 35 kv current transformer/CT transformer/high frequency transformer
Summary
The outdoor 35 kv current transformer/CT transformer/high frequency transformer of type LB6-35 is oil insulated and outdoor product. It is used for metering electric energy, current and relay protection in electric system up to rated frequency 50Hz or 60Hz and rated voltage 35kV.
Outdoor 35 kV High Frequency Current Transformer Very Easy Use transformer
Technical parameter
1. Rated insulation level: 40.5/95/185 kV;
2. The load power factor: COS $= 0. 8 (lag);
3. Rated secondary current: 5 A or 1A
4. The product standard: GB1208-2006 and IEC 60044-1 ;
5. Other technical parameters see table follow: Outdoor 35 kV High Frequency Current Transformer Very Easy Use
| Ratde primary current(A) | Accuracy classes(1S/2S) | Rated secondary output (VA) | 4S thermo stability current(kA virtual value) | Dynamic stability current(kApeak) | |||
| 0.2S,0.2 | 0.5S,0.5 | 10P10 | 10P15 | ||||
| 15 | 0.2S/10P 0.5S/10P 0.2/10 0.5/10P 0.2/0.5 | 20 | 40 | 30 | 20 | 3.15 | 7.8 |
| 20 | 4.5 | 11 | |||||
| 30 | 6.3 | 15 | |||||
| 40 | 9 | 22.5 | |||||
| 50 | 12.5 | 3.5 | |||||
| 75 | 16 | 37.5 | |||||
| 100 | 25 | 62.5 | |||||
| 150 | 31.5 | 78 | |||||
| 200 | |||||||
| 300 | 30 | 50 | 60 | 50 | |||
| 400 | 50 | ||||||
| 500 | |||||||
| 600 | |||||||
| 800 | 45 | 100 | |||||
| 1000 | 55 | ||||||
| 1200 | 63 | 130 | |||||
| 1500 | 72 | ||||||
| 2000 | 80 | ||||||
Outline and installation dimension
