Quick Details
-
Brand Name:
-
Zhixinjie
-
Power:
-
2.5 W
-
Dimension(L*W*H):
-
2400mm*1200mm*1700mm
-
Weight:
-
500 KG
-
Production Capacity:
-
400-600 pics/ per minute
-
Product unfolded size:
-
200mm*150-180mm
-
function:
-
Folding, cutting and counting of non-woven fabrics
-
Folding method:
-
1/2 folding or N/Z folding or 1/4 folding
-
Discharging method:
-
Counting arrangement, output slot output
-
Applicable raw materials:
-
40-80gms non-woven fabric
-
Inside diameter of paper tube:
-
3inch(75mm)
-
Speed:
-
100-800pc/min
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
Quick Details
-
Voltage:
-
220v
-
Marketing Type:
-
Hot product 2020 and competitive price
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhixinjie
-
Power:
-
2.5 W
-
Dimension(L*W*H):
-
2400mm*1200mm*1700mm
-
Weight:
-
500 KG
-
Production Capacity:
-
400-600 pics/ per minute
-
Product unfolded size:
-
200mm*150-180mm
-
function:
-
Folding, cutting and counting of non-woven fabrics
-
Folding method:
-
1/2 folding or N/Z folding or 1/4 folding
-
Discharging method:
-
Counting arrangement, output slot output
-
Applicable raw materials:
-
40-80gms non-woven fabric
-
Inside diameter of paper tube:
-
3inch(75mm)
-
Speed:
-
100-800pc/min
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
Specification
|
Device name
|

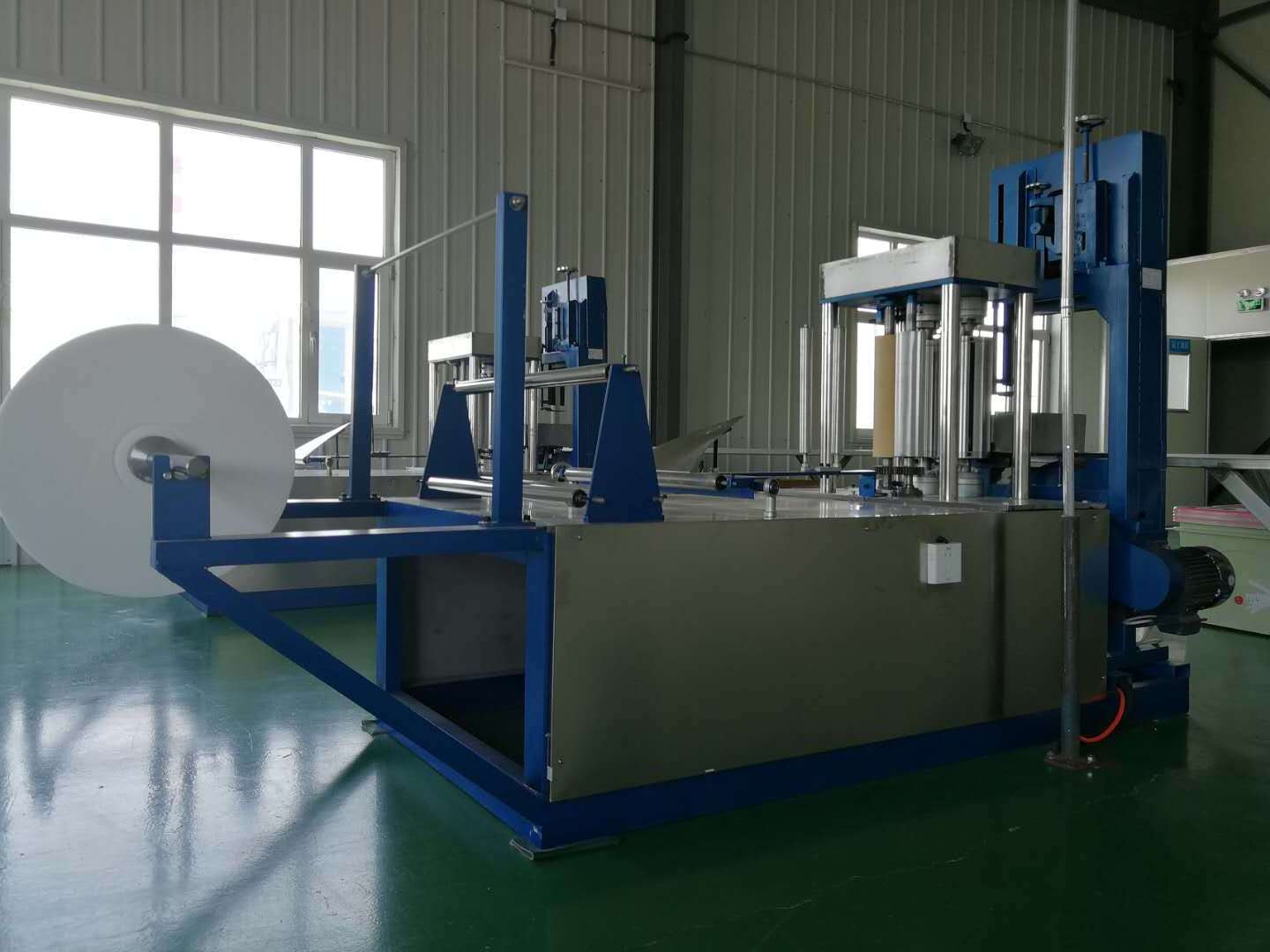

Non-woven fabric folding machine
|
|
Model
|
YWJ-NWF
|
|
function
|
Folding, cutting and counting of non-woven fabrics
|
|
Applicable products
|
hotel and family, etc.
|
|
Folding method
|
1/2 folding or N/Z folding or 1/4 folding
|
|
Discharging method
|
Counting arrangement, output slot output
|
|
Width of raw material
|
150-180mm for 1/2 folding，
200-360mm for 1/4 folding， 200-400mm for N/Z folding Need to change different shapers |
|
Product unfolded size
|
200mm*150-180mm
|
|
Folded size
|
100*150-180mm
|
|
Applicable raw materials
|
40-80gms non-woven fabric
|
|
Inside diameter of paper tube
|
3inch（75mm）
|
|
Material diameter
|
≦1000mm
|
|
Production rate
|
400-600 pics/ per minute
|
|
Equipment power
|
2.5kw
|
|
weight
|
500kg
|
|
Equipment area
|
2400mm*1200mm*1700mm
|
Product Description
Products Description
Packing & Delivery
Manufacturing Technique
Equipment configuration
1. Taida frequency converter speed control, stable equipment, simple operation;
2. the stainless steel folding shaper and the clip cutter, the product cleanliness is high.
3. The folding shaper is folded horizontally, and the contact surface is made of stainless steel.
4. The equipment is not stainless steel with a thick nickel plating process to ensure the long-term use of pit corrosion.
5. with heavy fuselage, the problem of shaking in the high speed running light machine is eliminated, and the operation is safe and stable.
6. Coiling synchronous traction mechanism and manual tension trimming device;
7. Customizing the three-phase motor and electrical components;
FAQ
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
