Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
China
-
Weight (KG):
-
80 KG
-
Software:
-
JCZ EZCAD Software
-
Laser source:
-
IPG Raycus Max JPT
-
Marking Speed:
-
0-10000mm/s
-
Laser Power:
-
20W/30W/50W/100W
-
Function:
-
Deep Engraving
-
Product name:
-
Laser Marking Machine
-
Marking material:
-
Gold Silver Cutting Marking
-
Cooling system:
-
Ari Cooling
-
Laser head:
-
Sino-galvo Laser Head
-
Machine type:
-
Mini Portable Laser Marker
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, Dst
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
China
-
Weight (KG):
-
80 KG
-
Software:
-
JCZ EZCAD Software
-
Laser source:
-
IPG Raycus Max JPT
-
Marking Speed:
-
0-10000mm/s
-
Laser Power:
-
20W/30W/50W/100W
-
Function:
-
Deep Engraving
-
Product name:
-
Laser Marking Machine
-
Marking material:
-
Gold Silver Cutting Marking
-
Cooling system:
-
Ari Cooling
-
Laser head:
-
Sino-galvo Laser Head
-
Machine type:
-
Mini Portable Laser Marker

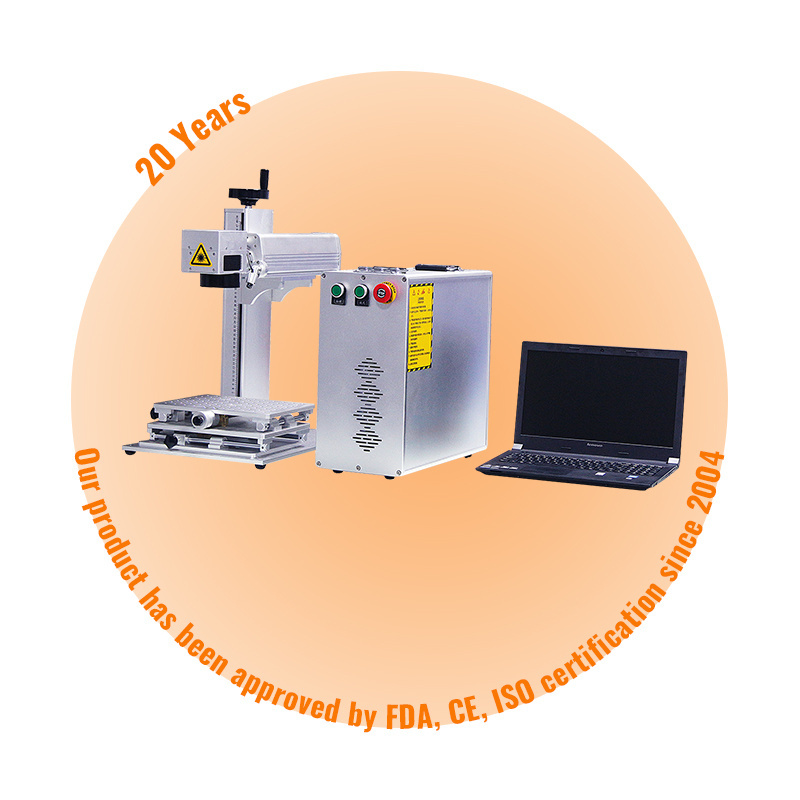

Gold silver jewelry Raycus fiber laser marking cutting engrave machine
50W laser machine can cut 0.1 to 1mm silver gold sheet.The 50w cutting time depend on the cutting area and complex difference pattern.To cut simple drawing or design ,the cutting time will take shortly.
The laser source is core part for laser machine. Here are some brand as you can option
IPG, Raycus,MAX,CAS and so on. Different brand laser source which the price is big different.
Main Features:
1.
Fiber laser
German IPG fiber laser or China fiber laser Optional (different price) fiber laser servicetime 100,000 hours.
2. High speed galvo scanner
German or China made Optional (different price)
3.
Easy Operate without route maintenance
4.
Higher precision,faster speed.
5. Air cooling, s
mall size,low power consumption.
6. Red light preview,
how the marking position before lasering
7.
Up and Down Lifter laser head (desktop model) and up and down worktable ( Portalble model).
easy to marking engraving different workpiece .
8. Rotary attachment optional, can e
ngrave and mark inside and outside ring jewellery
9. High temperature resistance,
perfect for marking medical equipment etc that requires sterilization
10. The durable & fine marking quality, widely
use in jewelry, mobile phones, and other high value items
The advantages of fiber lasers over other types include:
Light is already coupled into a flexible fiber: The fact that the light is already in a fiber allows it to be easily delivered to a movable focusing element. This is important for laser cutting, welding, and folding of metals and polymers.
High output power: Fiber lasers can have active regions several kilometers long, and so can provide very high optical gain. They can support kilowatt levels of continuous output power because of the fiber's high surface area to volume ratio, which allows efficient cooling.
High optical quality: The fiber's waveguiding properties reduce or eliminate thermal distortion of the optical path, typically producing a diffraction-limited, high-quality optical beam.
Compact size: Fiber lasers are compact compared to rod or gas lasers of comparable power, because the fiber can be bent and coiled to save space.
Reliability: Fiber lasers exhibit high temperature and vibrational stability, extended lifetime, and maintenance-free turnkey operation.
High peak power and nanosecond pulses enable effective marking and engraving.
The additional power and better beam quality provide cleaner cut edges and faster cutting speeds.
Lower cost of ownership.
Fiber lasers are now being used to make high-performance surface-acoustic wave (SAW) devices. These lasers raise throughput and lower cost of ownership in comparison to older solid-state laser technology.
Fiber laser can also refer to the machine tool that includes the fiber resonator.
Fiber laser marking machine
Fiber laser marking machine is the use of laser beam in a variety of different material surface marked with a permanent mark. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "mark" the trace by the physical changes of the surface material caused by the light, or to burn the part of the material by light. , Text, bar code and other graphics.
Fiber laser source
Fi ber lasers refer to lasers doped with rare earth element glass fiber as a gain medium. Fiber lasers can be developed on the basis of fiber amplifiers: in the role of pump light, it is easy to form high power density in the fiber, resulting in laser working material Energy level "number of particles inversion", when appropriate to join the positive feedback loop (constitute the resonant cavity) can form a laser oscillation output.
| NO. | Item Name | Parameter |
| 1 | Laser Power | 20W/30W/50W/100W |
| 2 | Laser Wavelength | 1064nm |
| 3 | Laser Type | Fiber Laser |
| 4 | Laser Beam Quality | M2:1.5 |
| 5 | Repeat Positining Accurancy | 0.05mm |
| 6 | Mini Linear Width | 0.01mm |
| 7 | Marking Depth | 0.01-0.5mm |
| 8 | Working Area | 100*100mm |
| 9 | Voltage |
220V 50HZ |
|
|
Q: Which countries are your laser machinery sold to ?
A: Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Brazil, Australia, Singapore, Saudi Arabic, Turkey,India,Italy,and other countries.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping .For some small parts installation,We will send details training video , user's manual along with the machine .95% coustomers can learn by themselves.
Q:What's the package?
A: We have 3 layer's package.For the outside,we adopt wooden case.In the middle,the machine is covered by foam, to protect the machine from shaking.For the inside layer,the machine is covered by thickening plastic bag for waterproof.
Q: How long is the delivery time?
A: The products will be delivered to the customer within one week after the order is confirmed.
Q: Will the package be damaged during transportation?
A: Our packages take all damage factors into considerarion and make sure the product will be in safe transportation. We have expored to 180 countries worldwide. So transportation won't be problem for us and customers will defintely receive products in good condition
