Quick Details
-
Rated Voltage:
-
220V/380V
-
Rated Current:
-
45A/26A
-
Speed:
-
3000/3600
-
Frequency:
-
50/60HZ, 50HZ
-
Engine type:
-
Single cylinder,tilt,4-stroke,air-cooled,OHV,gasoline engine
-
Excitation mode:
-
Self excitation constant voltage(AVR)
-
Starting system:
-
Electric start gasoline generator
-
Quality control:
-
CE,EPA,ISO 9001
-
Packing size:
-
1020*670*750mm
-
Net/Gross weight:
-
175/197Kg
-
voltage:
-
220V/380V
-
speed:
-
3000/3600
-
brand:
-
shraise
-
Certification:
-
ISO9001CE
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SHRAISE
-
Model Number:
-
6500CX
-
Rated Voltage:
-
220V/380V
-
Rated Current:
-
45A/26A
-
Speed:
-
3000/3600
-
Frequency:
-
50/60HZ, 50HZ
-
Engine type:
-
Single cylinder,tilt,4-stroke,air-cooled,OHV,gasoline engine
-
Excitation mode:
-
Self excitation constant voltage(AVR)
-
Starting system:
-
Electric start gasoline generator
-
Quality control:
-
CE,EPA,ISO 9001
-
Packing size:
-
1020*670*750mm
-
Net/Gross weight:
-
175/197Kg
-
voltage:
-
220V/380V
-
speed:
-
3000/3600
-
brand:
-
shraise
-
Certification:
-
ISO9001CE
|
|
|
2500CX
|
3500CX
|
6500CX
|
RZ15000CXE
|
|||||
|
|
|
|
|
|
|
|||||
|
Structure Type
|
|
Frame type
|
|
Frame type,4 small wheels
|
|
|||||
|
Performance
|
|
|
|
|
|
|||||
|
Rated Power
|
|
2.0 kW
|
2.8kW
|
5.0kW
|
7.2kW
|
|||||
|
Maximum power
|
|
2.2 kW
|
3.1kW
|
5.5kW
|
8.0kW
|
|||||
|
Rated Frequency
|
|
50Hz
|
|
|
|
|||||
|
Rated Voltage
|
|
220V
|
|
|
|
|||||
|
Noise Leve
|
|
72dBa (at 7 meters)
|
|
|
|
|||||
|
Output type
|
|
Windproof three holes / DC output: DC12V8.3A/European socket(Option)
|
|
|
|
|||||
|
Fuel tank Capacity
|
|
15 L
|
15L
|
25L
|
33 L
|
|||||
|
Working Time
|
|
8.5 H
|
8.5H
|
9H
|
7.5 H
|
|||||
|
Start System
|
|
Hand start
|
Hand start
|
Hand start/Electric start（Optional）
|
Electric start
|
|||||
|
Engine
|
|
|
|
|
|
|||||
|
Engine Model
|
|
JH168F(GX160)
|
JH200F-A(CP200)
|
JH188F(GX390)
|
JH2V78F-C(GX690)
|
|||||
|
Engine Type
|
|
Single cylinder,4-stroke,air-cooled
|
Single cylinder,4-stroke,air-cooled
|
Single cylinder,4-stroke,air-cooled
|
V-Twin,4-stroke,air-cooled
|
|||||
|
Bore x Stroke
|
|
68 x 45
|
68x54
|
88x64
|
2-78×72
|
|||||
|
Curbic cc
|
|
163cc
|
196cc
|
389cc
|
688cc
|
|||||
|
Fuel type
|
|
90#automotive unleaded gasoline
|
|
|
|
|||||
|
Lube Brand
|
|
SAE15W/40
|
|
|
|
|||||
|
Lube Capacity
|
|
0.67L
|
0.67L
|
1.17L
|
1.7L
|
|||||
|
Excitation method
|
|
Brushed all copper
|
|
|
|
|||||
|
Excitation mode
|
|
AVR automatic adjustment
|
|
|
|
|||||
|
Boxed data
|
|
|
|
|
|
|||||
|
Unit size
|
|
590×435×440mm
|
590×435×440mm
|
700×535×545mm
|
972×622×600mm
|
|||||
|
Packing Size
|
|
610×450×470mm (Cartont)
|
610×450×470mm (Cartont)
|
720×550×570mm（Carton）
|
1020×670×750mm（Wooden tray、Carton）
|
|||||
|
Net/Gross
|
|
44/46kg
|
44/46kg
|
80/83kg
|
175/197kg
|
|||||

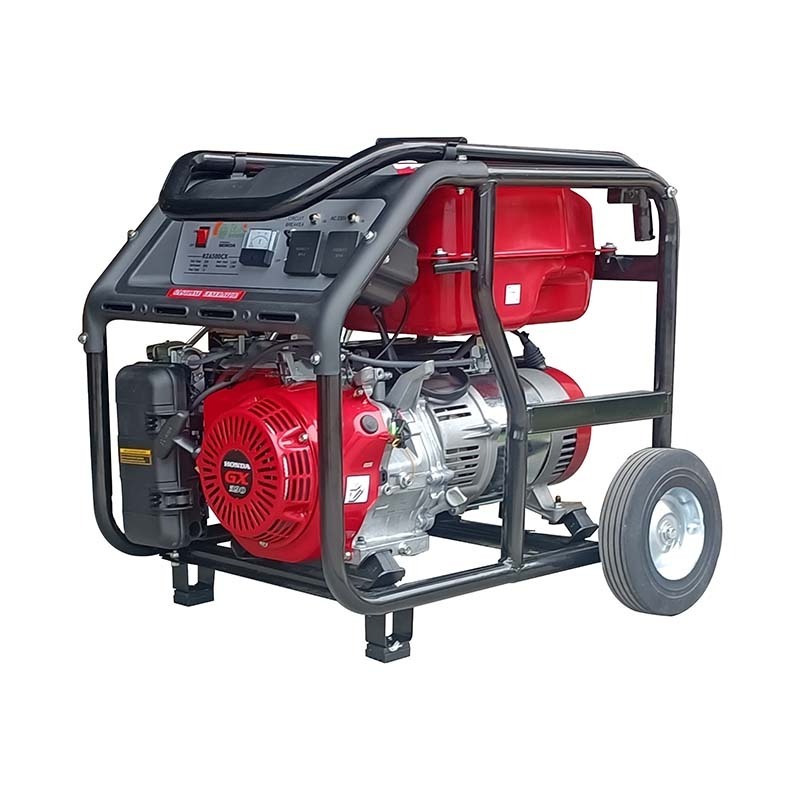

Product Details
Title goes here.
32mm round tube support, protect the core components, make the generator more durable, special shock absorbing foot to protect the core, reduce damage
Long term warranty
RZ series commercial engines use high quality commercial grade accessories to make the engine more durable, OHV technology to provide the engine with sufficient power.
Humanization design
Integrated control panel, easy to operate, more durable industrial accessories, and can be configured for different countries of the control panel, perfect to meet the needs of users.
Lower noise
Built-in patented honeycomb two-stage muffler for lower noise, up to 70 dB (7 m).
Copper motor
The motor adopts all-copper motor, which can keep running for a long time without losing power. AVR technology ensures stable voltage output.
Run for a long time
25L large fuel tank, can run for more than 8 hours at full load, save the time of frequent refueling, so that the work is more efficient.
