Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
4620*1440*2590 with bucket
-
Machine Weight:
-
3100 kg
-
Bucket capacity:
-
0.6CBM
-
Marketing Type:
-
New Product 2021
-
Product name:
-

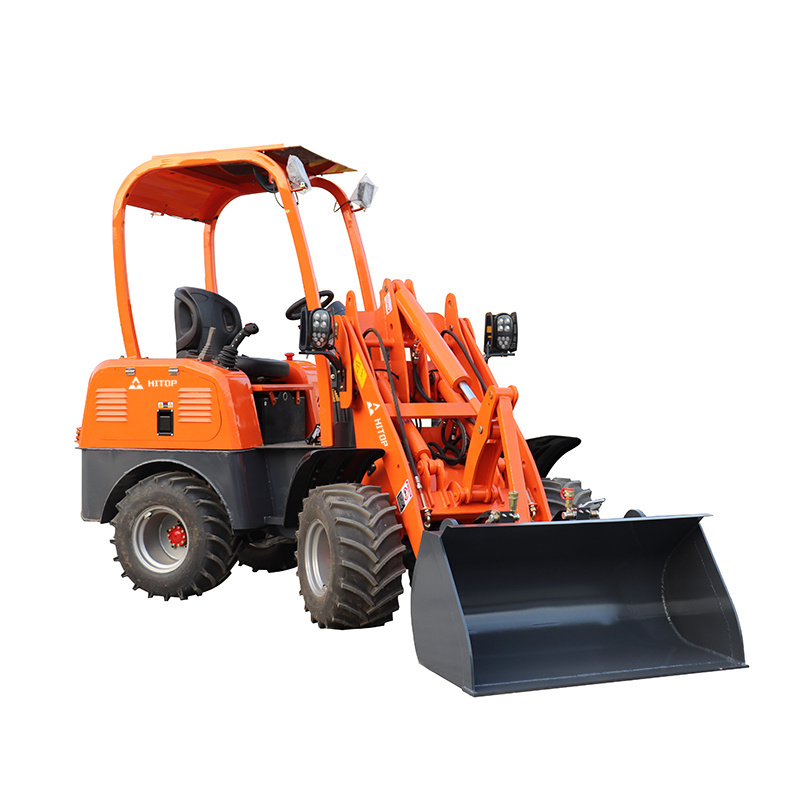

new mini 1 ton electric wheel loader for sale
-
Rated load:
-
1 ton
-
Power type:
-
Lead-acid battery / Lithium battery
-
Model:
-
HL910E
-
Keyword:
-
mini loader, electric wheel loader
-
Color:
-
Customer's Requiement
-
Driving motor:
-
11KW AC
-
Lifting motor:
-
10KW AC
-
Tire size:
-
10-16.5
-
Drive Mode:
-
4X4 (4WD)
Quick Details
-
Engine Brand:
-
Torch
-
Power:
-
11KW, 10KW
-
Brand Name:
-
HITOP
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
4620*1440*2590 with bucket
-
Machine Weight:
-
3100 kg
-
Bucket capacity:
-
0.6CBM
-
Marketing Type:
-
New Product 2021
-
Product name:
-
new mini 1 ton electric wheel loader for sale
-
Rated load:
-
1 ton
-
Power type:
-
Lead-acid battery / Lithium battery
-
Model:
-
HL910E
-
Keyword:
-
mini loader, electric wheel loader
-
Color:
-
Customer's Requiement
-
Driving motor:
-
11KW AC
-
Lifting motor:
-
10KW AC
-
Tire size:
-
10-16.5
-
Drive Mode:
-
4X4 (4WD)
Hitop 500kg 800kg 1 Ton Curtis Controller 600kg Mini Lithium Battery Powered Electric Wheel Loader with Attachment
Product Description
Specification
|
No.
|
Item
|
Unit
|
Parameter
|
|
1
|
Overall dimension (L*W*H)
|
mm
|
4620*1440*2590 with bucket
|
|
|
|
|
4010*1440*2590 without bucket
|
|
2
|
Wheel base
|
mm
|
1150
|
|
3
|
Tread base
|
mm
|
1890
|
|
4
|
Max. dumping height
|
mm
|
2250
|
|
5
|
Max. dump distance
|
mm
|
850
|
|
6
|
Max. discharging angle
|
°
|
35
|
|
7
|
Max. turning angle
|
°
|
35
|
|
8
|
Seat height
|
mm
|
1600
|
|
9
|
Min. ground clearance
|
mm
|
1600
|
|
10
|
Min turning radius
|
mm
|
3200
|
|
11
|
Time in total
|
S
|
8
|
|
12
|
Battery capacity
|
V/AH
|
48V / 400AH (Lead-acid battery)
|
|
13
|
Driving motor (AC)
|
KW
|
11
|
|
14
|
Lifting motor (AC)
|
KW
|
10
|
|
15
|
Tire
|
|
10-16.5
|
|
16
|
Working time
|
H
|
8~9 hours
|
|
17
|
Whole weight
|
KG
|
3100
|
|
18
|
Rated load
|
KG
|
800-1000
|
|
19
|
AC motor controller
|
|
American Curtis
|
|
20
|
Drive Mode
|
|
4X4 (4WD)
|
Electric Wheel Loader Features
Battery driven loaders underground leads to cleaner air, less noise and less heat. These are just some of the benefits of
switching to battery power instead of diesel. Add lower operational costs to the equation for the electric loaders to make it even
more interesting. Even in the toughest underground environments, the operator enjoys a quiet, ergonomically designed cabin with
easy, safe access to all service points. All this can improve the operator’s health and satisfaction of their work environment.
The batteries are designed with productivity and performance in focus. The high-energy density batteries are easily swappable for
continuous applications. Boost your productivity and take a big step toward a more sustainable operation.
