Quick Details
-
Operating System:
-
Android 12
-
Type:
-
Tablet PC
-
Weight:
-
1.85KG, 2000g(battery included)
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
QS
-
Model Number:
-
1003
-
O.S:
-
Android 12
-
SDK:
-
Android SDK + JDK + Eclipse
-
HDMI OTG Pogo pin:
-
Port
-
Battery:
-
10000mAh rechargeable lithium polymer battery(removable)
-
Display:
-
10.1 inch IPS 1920x1200 pixs
-
Sensor:
-
G-sensor,Vibrating motor
-
Camera:
-
Back:AF 5.0M Pixels autofocus with LED flash light
-
Card slot:
-
1pcs SIM slot ,1pcs PSM slot,1pcs TF slot
-
Quick charge:
-
5V-3A 9V-2A Quick charge
Quick Details
-
Screen Size:
-
10"
-
Memory Capacity:
-
6GB
-
Display resolution:
-
1920x1200
-
Operating System:
-
Android 12
-
Type:
-
Tablet PC
-
Weight:
-
1.85KG, 2000g(battery included)
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
QS
-
Model Number:
-
1003
-
O.S:
-
Android 12
-
SDK:
-
Android SDK + JDK + Eclipse
-
HDMI OTG Pogo pin:
-
Port
-
Battery:
-
10000mAh rechargeable lithium polymer battery(removable)
-
Display:
-
10.1 inch IPS 1920x1200 pixs
-
Sensor:
-
G-sensor,Vibrating motor
-
Camera:
-
Back:AF 5.0M Pixels autofocus with LED flash light
-
Card slot:
-
1pcs SIM slot ,1pcs PSM slot,1pcs TF slot
-
Quick charge:
-
5V-3A 9V-2A Quick charge

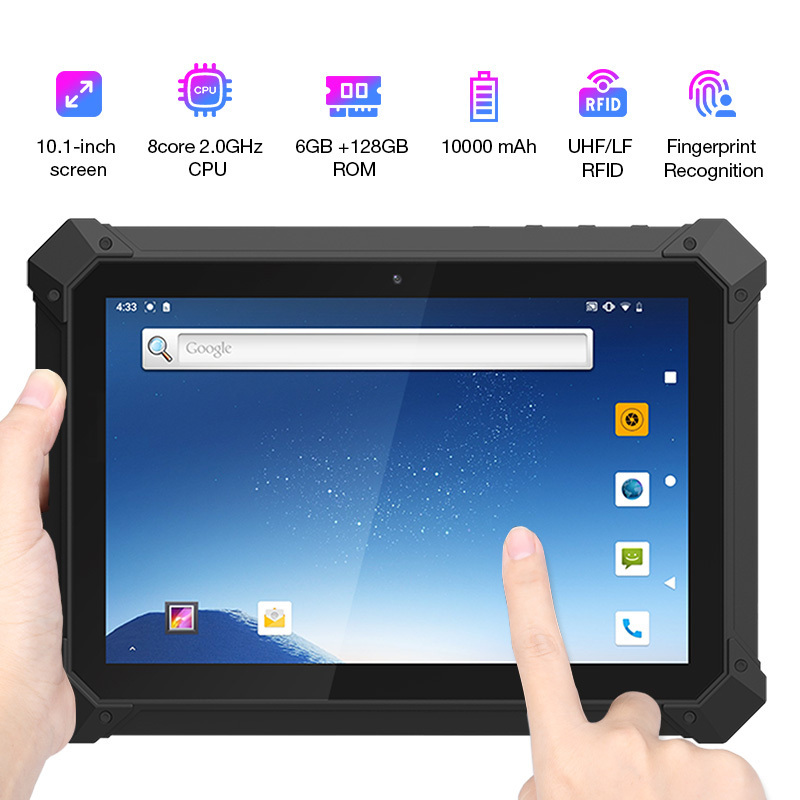

IP67 Waterproof 10 Inches Android Rugged Industrial Tablet PC with NFC/GPS/GMS/Barcode scanner/HDMI/RJ45/POGO pin
10.1 inch FHD
Support multi-touch , 1920*1200
Multi-functional Tablet
Default: cortex-A53 octa-core 2.0Ghz Processor, 128 G ROM + 6G RAM,5M/8M camera,NFC,10000mAh capacity battery
Optional: 2D scanner, UHF RFID reader, Fingerprint reader(FBI)
IP67 Industrial Protection
Water-proof design Rubber stopper on each port to prevent Water in
|
Structural Parameters |
|
|
Size |
280*198*28 mm |
|
Weight |
2000g(battery included) |
|
Keypad |
Power button,scanner button, volume button |
|
Battery |
10000mAh rechargeable lithium polymer battery(removable) |
|
Standby time>500h(Only with the host battery installed) |
|
|
Working time>12h(It depends on usage and network environment) |
|
|
Charger time 3 h |
|
|
Speaker |
support |
|
Shake |
support |
|
Display |
10.1 inch 1920*1200 FHD Screen |
|
Touch Panel |
G + G glass, support multi touch, support glove or wet hand operation |
|
Sensor |
G-sensor,Vibrating motor |
|
Camera |
Front:AF 5.0M Pixels autotocus with LED flash light Back:AF13.0M Pixels autofocus with LED flash light |
|
Card slot |
1pcs SIM slot ,1pcs PSM slot,1pcs TF slot |
|
Interface |
Micro USB/MINI USB Extend Serial Port/USB 2.0/HDMI/RJ45/POGO PIN |
|
Earphone |
3.5mm standard headphone interface |
|
Quick charge |
5V-3A 9V-2A Quick charge |
|
System Configuration |
|
|
CPU |
Cortex-a53 octa core 64 bit 2.0GHz high performance processor |
|
RAM+ROM |
6GB+128GB |
|
Operating Environment |
|
|
O.S |
Android 12(64 bit) |
|
SDK |
Android SDK + JDK + Eclipse |
|
P-Language |
Java |
|
Develop Tools |
Eclipse/Android Studio |
|
Working Environment |
|
|
Operating Temp. |
-20 ℃~+50 ℃ |
|
Storage Temp. |
-40 ℃~+70 ℃ |
|
Humidity |
0 ~ 95% (non-condensing) |
|
Drop specification |
Within the scope of operation, 6 sides are subjected to the impact of 1.5m falling to the concrete |
|
Electrostatic Protection |
± 15 kV air discharge, ± 8 kV contact discharge |
|
Rolling Test |
After 1000 rolling times and 0.25m, the six contact surfaces still run stably, reaching IEC rolling specifications |
|
Sealing |
IP67, up to IEC sealing standard |
|
Communication Transmission |
|
|
WLAN |
2.4g/5g dual band, support 802.11 a / B / g / N / AC /, IPv4, IPv6; |
|
WWAN |
2G: 850/900/1800/1900MHz |
|
3G: CDMA EVDO: BC0 |
|
|
WCDMA850/900/1900/2100MHz |
|
|
4G:B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
|
|
Vo-LTE |
Support VO LTE HD video voice call |
|
Blue tooth |
BT4.1 |
|
GNSS |
GPS/BEIDOU/GLONASS A-GPS |
|
NFC |
|
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2 |
| Tag standard | M1(S50,S70),CPU card,NFC |
|
Barcode scanner(optional) |
|
| Scanning engine | Newland N1 2D scanner , support scan ning 1D or 2D code |
|
1D |
UPC/EAN,Code129,code39,code11,codabar, MSI |
|
2D |
QR,PDF417,Mirco QR,RSS,Aztec,Maxincode |
|
UHF reader (Optional) |
|
|
Frequency |
902-928MHz or 865-868MHz |
|
Read distance |
1-3M |
|
Fingerprint reader(optional) |
|
|
FBI certificate |
|
