Quick Details
-
Size:
-
12500*2490*1548mm
-
Place of Origin:
-
China
-
outer size:
-
12500*2490*1548mm
-
Tow height:
-
1300mm
-
Suspension:
-
3-axis mechanical suspension
-
leaf spring:
-
90*13*10-6 pieces
-
Axle:
-
13 Ton FUWA
-
Tire:
-
12R22.5
-
Landing gear:
-
JOST
-
Brake System:
-
T30/30+T30 Spring Brake Chamber
-
voltage:
-
24V
-
Lamps:
-
LED
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
JSXT24020501
-
Size:
-
12500*2490*1548mm
-
Place of Origin:
-
China
-
outer size:
-
12500*2490*1548mm
-
Tow height:
-
1300mm
-
Suspension:
-
3-axis mechanical suspension
-
leaf spring:
-
90*13*10-6 pieces
-
Axle:
-
13 Ton FUWA
-
Tire:
-
12R22.5
-
Landing gear:
-
JOST
-
Brake System:
-
T30/30+T30 Spring Brake Chamber
-
voltage:
-
24V
-
Lamps:
-
LED
Products Description
Advantages:
Factory direct exporting, with high quality and lower price.
More than 18 years of manufacturing experience.
One of the biggest manufacturer of semi trailer in China, with 730,000 square meters of factory and more than 30,000 units annual output.
Excellent after-sale service.
Details Images
Specification
|
Dimensions
|
12500*2490*1548mm
|
|
Total weight
|
50 tons
|
|||
|
Tare weight
|
about 7000kg
|
|
|
|
|||
|
Specification
|
outer size
|
12500*2490*1548mm
|
wheelbase
|
1310mm
|
|||
|
|
Tow height
|
1300mm
|
track
|
1840mm
|
|||
|
Frame main
configuration |
Beam
|
Q345 carbon steel, height of carbon steel is 500mm, the upper wing plate is 14mm, the lower wing plate is 16mm, and the vertical
plate is 8mm; double. |
|
|
|||
|
Accessories
|
Suspension
|
3-axis mechanical suspension, leaf spring 90*13*10-6 pieces
|
|
|
|||
|
|
Axle
|
13 Ton FUWA
|
Number of axles
|
3 pcs
|
|||
|
|
Tire
|
12R22.5
|
Number of tires
|
12 pcs
|
|||
|
|
Rim
|
9.0-22.5
|
Number
|
12 pcs
|
|||
|
Landing gear
|
JOST
|
|
Traction
|
2'' or 3.5''
|
|||
|
Brake system
|
Moving: Drum type double air pipe pneumatic brake
|
|
|
|
|||
|
|
Pneumatic : WABCO RE 6 relay valve; T30/30 Spring brake chamber;40L air tanks *2.
|
|
|
|
|||
|
Electric circuit system
|
sockets
|
7 hole Circuit sockets
|
voltage
|
24V
|
|||
|
|
Lamps
|
LED,Two rear taillights (including two turning, etc., two brake lights, two constant lights), eight side lights, two rear tail
triangle reflectors. |
|
|
|||
|
|
|
|
|
|
|||
|
Spare tire carrier
|
1 piece
|
|
|
|
|||
|
Tools
|
1 piece of tools, Cranking bar and spanner
|
|
|
|
|||

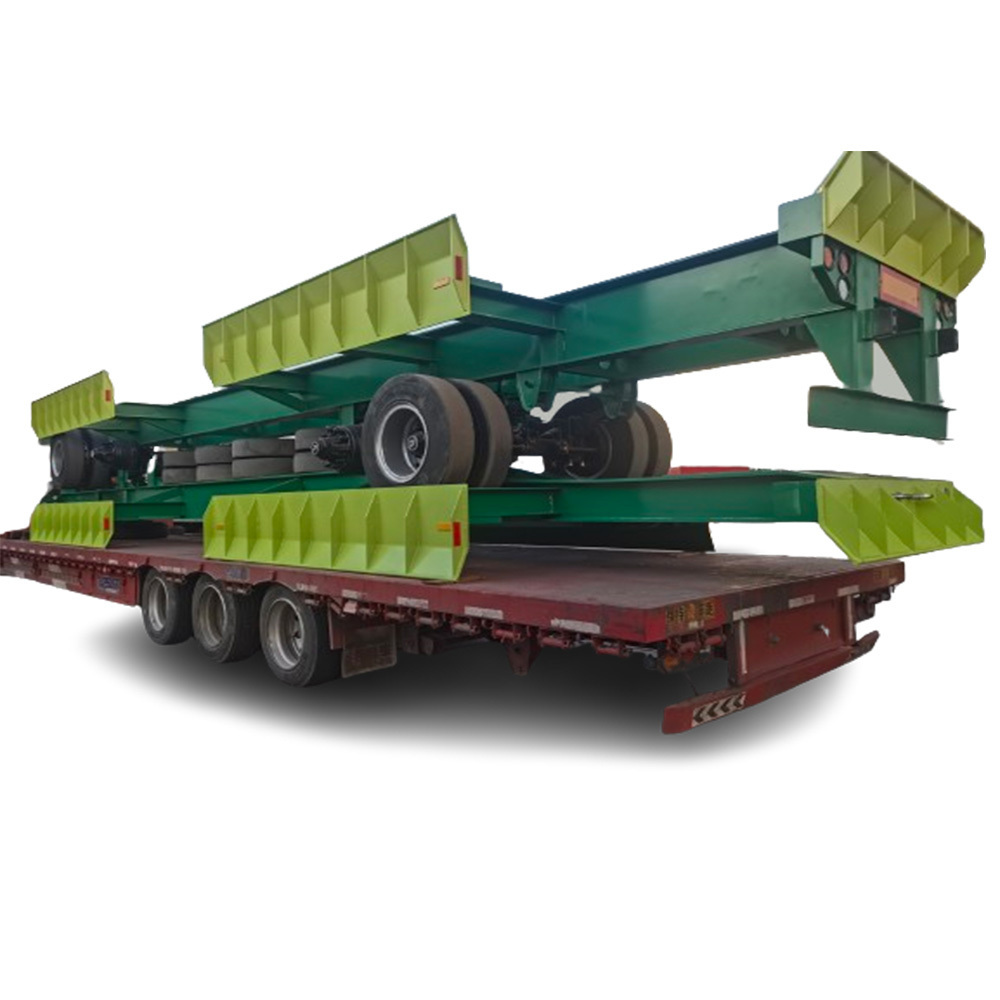

Shipping
Certifications
Related Products
FAQ
Q1: Can I get some samples?
A:Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Q2: Do you receive customized order?
A: Certainly. Our company has rich production experience and we can customize all kinds of semi-trailers at a reasonable price
Q3: What's the lead time?
A: The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, the time can only be negotiated according to your order quantity at that time.
Q4: What's your warranty terms?
A: Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality..we provide technical support for our products.besides,we also provide you spare parts as long as you need .
Q5: What's your payment terms?
A: TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
