Quick Details
-
Product name:
-

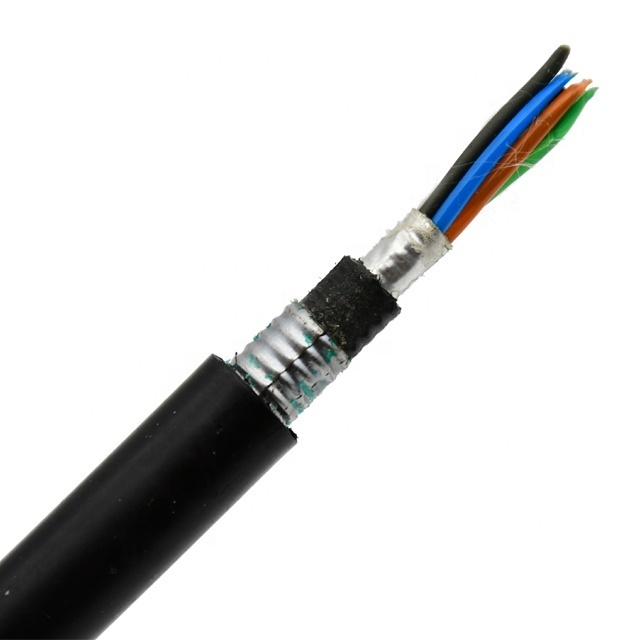

GYTA Fiber Optic Cable
-
Fiber counts:
-
2-288 core
-
Fiber Type:
-
G652D
-
structure:
-
Stranded loose tube
-
Armored:
-
Aluminum Tape
-
Color:
-
Black
-
Outer sheath:
-
PE
-
Packing:
-
Wooden drum
-
Temperature: -40 to +70 °C:
-
-40 to +70 °C
-
Application:
-
Aerial Duct
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
GYTA
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
GYTA Fiber Optic Cable
-
Fiber counts:
-
2-288 core
-
Fiber Type:
-
G652D
-
structure:
-
Stranded loose tube
-
Armored:
-
Aluminum Tape
-
Color:
-
Black
-
Outer sheath:
-
PE
-
Packing:
-
Wooden drum
-
Temperature: -40 to +70 °C:
-
-40 to +70 °C
-
Application:
-
Aerial Duct
Product Description
Structure And Section
GYTA
Application
♦Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable
♦Laying method: overhead, pipeline
♦Working temperature: -40℃~+60℃
♦Bend radius: Static 10 times the cable diameter
♦Dynamic 20 times optical cable diameter
Features
1.Structure: 1+5 / 1+6 (1 ‘steel-wire strength member’+5 Loose tube)
2. Fiber core: 2-288 cores
3.Fiber Type: G652D
4. Armored: Aluminum Tape
5.Jacket: PE
6.Application: Aerial , Duct
Specification
|
No. of cable
|
|
24
|
|
96
|
|
144
|
|||||
|
Fiber Model
|
|
G.652B
|
|
|
|
|
|||||
|
Design(StrengthMember+Tube&Filler)
|
|
1+5
|
|
1+8
|
|
1+12
|
|||||
|
Central Strength Member
|
Material
|
Steel Wire
|
|
|
|
|
|||||
|
|
Diameter（±0.05）mm
|
1.5
|
|
2.1
|
|
2.1
|
|||||
|
Additional Sheath
|
Material
|
MDPE
|
|
|
|
|
|||||
|
|
Thickness（±0.03）mm
|
—
|
|
0.7
|
|
2.1
|
|||||
|
Loose Tube
|
Material
|
PBT
|
|
|
|
|
|||||
|
|
Diameter（±0.06）mm
|
1.8
|
|
2.1
|
2.1
|
|
|||||
|
|
Thickness（±0.03）mm
|
0.32
|
|
0.35
|
0.35
|
|
|||||
|
|
The Max.Core NO./Tube
|
6
|
|
12
|
12
|
|
|||||
|
Filler Rope
|
Material
|
LDPE
|
|
|
|
|
|||||
|
|
Colour
|
White
|
|
|
|
|
|||||
|
|
Diameter（±0.06）mm
|
1.8
|
——
|
|
|
|
|||||
