Quick Details
-
Type::
-
Testers &Tools
-
Use::
-
FTTH
-
Model::
-
CT-50
-
Fiber Type::
-
Single Fiber
-
Fiber Count::
-
12 Fibers
-
Cladding diameter::
-
125um
-
Cleaving angle::
-
Typical 0.5 degress
-
Blade life::
-
60000 fibers
-
Coating diameter::
-
160um to 900um 2 to 3mm cord & drop cable
-
Warranty Time::
-
1 Year
Quick Details
-
Brand Name:
-
Fujikra
-
Place of Origin:
-
Japan
-
Model Number:
-
CT-50
-
Type::
-
Testers &Tools
-
Use::
-
FTTH
-
Model::
-
CT-50
-
Fiber Type::
-
Single Fiber
-
Fiber Count::
-
12 Fibers
-
Cladding diameter::
-
125um
-
Cleaving angle::
-
Typical 0.5 degress
-
Blade life::
-
60000 fibers
-
Coating diameter::
-
160um to 900um 2 to 3mm cord & drop cable
-
Warranty Time::
-
1 Year
Recommend Products
Products Description

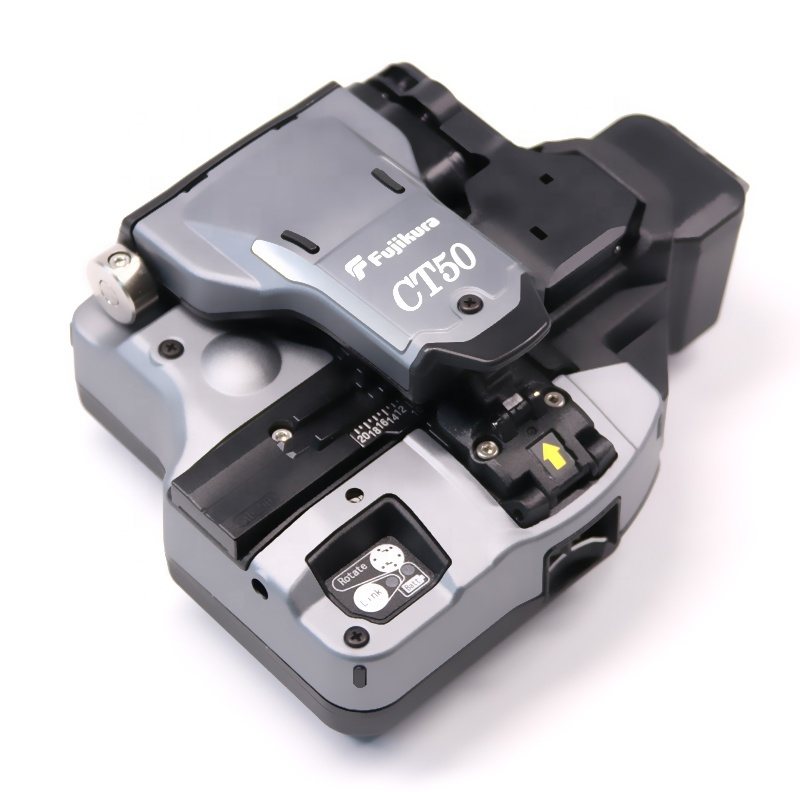

The CT50 offers enhanced drop impact resistance compared to other existing cleavers and allows workers to replace the cleaving blade, providing customers with a drastic reduction in handling time and maintenance costs. The CT50 changes the position of the cleaving blade automatically and in accordance with the condition of the cleaving state of optical fibers on a fusion splicer through wireless communication. In addition,the CT50 can complete cleaving works including scrap collection, with a single-step.
Features:
* Applicable for up to 12-fiber cleaving
* Automatic cleaving blade rotation via wireless communication
* User replaceable fiber clamps and cleaving blade
* Blade life up to 60,000 cleaves
* Wide lever opening angle allows easy fiber placement
* Single-action operation including fiber scrap collection
*
Cutting angle: Typical 0.5°
*
Fiber count:Up to 12
*
Fiber diameter: 125μm
*
Coating diameter: 160um to 900um 2 to 3mm cord&drop cable)
*
Resistance features*3:Dust resistance: Exposure to dust (0.1 to 500μm dia. Alumina Silicate)
*
Rain resistance: H=10mm/hr for 10min
|
Model Number
|
CT50
|
|
Fiber Count
|
Up to 12
|
|
Coating Diameter
|
160 to 900μm 2 to 3mm cord and drop cable
|
|
Cladding Diameter
|
125µm
|
|
Cleave Length
|
5-20mm with AD-10-M24
10mm using fiber holders |
|
Cleave Angle Capability
|
Typical 0.5 degrees
|
|
Wireless connectivity
|
Wireless technical standard:Bluetooth®4.1 LE*2 OS : Andoroid 5.0 or above, iOS 8.0 or above
|
|
Power supply
|
AAA (LR03) dry battery: 2pc
|
|
Operation condition
|
0 to 95% RH and 0 to 40°C (non-dew)
|
|
Storage condition
|
0 to 95% RH and -40 to 80°C (non-dew)
|
