Quick Details
-
Screw Speed (rpm):
-
20 - 60 rpm
-
Screw L/D Ratio:
-
4.8
-
Brand Name:
-
honghesheng
-
Voltage:
-
Customer's Request
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Power (kW):
-
30
-
Weight (KG):
-
1500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field maintenance and repair service, Video technical support, Field installation, commissioning and training, Online support
-
Type:
-
Rubber Extruder
-
diameter:
-
120/150/200mm
-
Color:
-
Customers' Demand
-
Weight:
-
7000kg
-
Power(W):
-
110kw
-
Certification:
-
CE ISO
Quick Details
-
Output (kg/h):
-
400 kg/h
-
Place of Origin:
-
Shandong, China
-
Screw diameter (mm):
-
150 mm
-
Screw Speed (rpm):
-
20 - 60 rpm
-
Screw L/D Ratio:
-
4.8
-
Brand Name:
-
honghesheng
-
Voltage:
-
Customer's Request
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Power (kW):
-
30
-
Weight (KG):
-
1500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field maintenance and repair service, Video technical support, Field installation, commissioning and training, Online support
-
Type:
-
Rubber Extruder
-
diameter:
-
120/150/200mm
-
Color:
-
Customers' Demand
-
Weight:
-
7000kg
-
Power(W):
-
110kw
-
Certification:
-
CE ISO

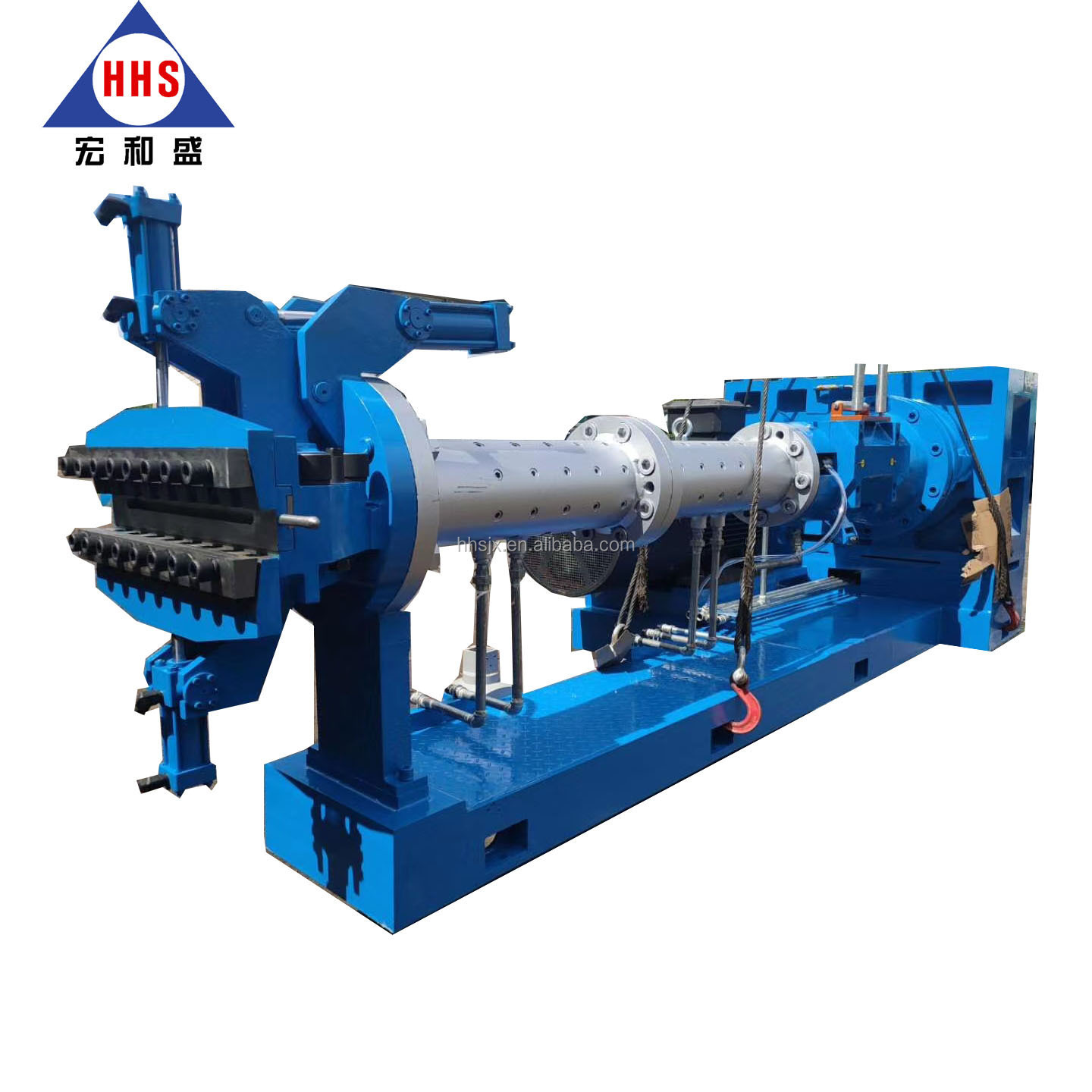

Silicone Pin Barrel Cold Feed Hose Extruder Machine
Rubber extruder machinery is one of the most widely used important equipments. It is mainly used in tire tread, gaskets, tape, and other rubber extrusion.
It is energy saving, high productivity , good plasitcization and refined glue quality characteristic.
Usage of Our Rubber Extruder Machine
For profiling of extrudand,rubber covering of filter cable of rubber compound,rubber covering of press and tinsel,etc.
Features of Our Rubber Extruder Machine
1 The machine is equipped with inner tube and tire tread extrusion heads ,and can also be equipped with other extrusion heads as required by users.
2 A machine body temperature measuring and indicating device is installed.The feeding zone over 150 is equipped with side rolls for the enhancement of feeding capability.
3 The screws and bushes are subjected to nitrogenation treatment to get enough strength and wear-resistance.
4 The reducer has a forced lubrication unti,which is featured by high transmission efficiency,long service life and low noise.
5 The machine over 150 is driven by a variable-speed motor.
6 The side rolls are designed as side-open type for easy rubber removal
Technical Parameters of Our Rubber Extruder Machine
|
Parameters |
Version |
||||
|
XJ-65 |
XJ-85 |
XJ-115 |
XJ-150 |
XJ-200 |
|
|
Screw outer diameter |
65 |
85 |
115 |
150 |
200 |
|
Length –diameter ratio |
4 |
4.3 |
4.8 |
4.43 |
4.35 |
|
Compression ration |
|
1.3 |
1.3 |
1.34 |
|
|
Screw rotation speed(min) |
20.27.35.47 |
28.40.56.80 |
33.46.60 |
27-81 |
22.4-67.2 |
|
Power |
7.5 |
11/15 |
22 |
18.3-55 |
25-75 |
|
Product capacity(kg/h) |
50-80 |
70-210 |
100-420 |
700-1200 |
1500-2200 |
|
Steam pressure |
0.2-0.3 |
0.3-0.4 |
0.4-0.6 |
0.6 |
0.6-0.8 |
|
Cooling water pressure |
0.2-0.3 |
0.2-0.3 |
0.2-0.3 |
0.2 |
0.2-0.3 |
|
Compress air pressure |
|
|
|
|
0.3-0.6 |
|
Size |
1630*604*1050 |
2050*700*1200 |
1630*604*1050 |
3411*814*1470 |
4564*1800*150 |
|
Weight (kg) |
1200 |
2500 |
3000 |
5000 |
8000 |
|
400 |
Machine pictures of Our Rubber Machine
Qingdao Honghesheng Industry Co., LTD, which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…The products have been sold to 20 provinces in China and exported more than 10 countries and areas. The stable quality and timely service obtain the positive feedback and are high praised.
“Quality, integrity, innovation, service”is the aim of our company. We would like to promote cooperation with national new and old customers and foreign clients and seek common development.
production picture
support trade assurance
when sending enquiry ,for precise quotation
k indly tell me
what product to extrude?
extruded size?
production capacity?
