Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
factory
-
Brand Name:
-
JinNuo
-
Wire diameter:
-
2.0-4.5mm
-
Mesh opening:
-
100x100,150x150mm,200x200mm
-
Width:
-
1-2.4m
-
Weaving type:
-
Welded Wire Mesh
-
Usage:
-
it is widely used on construction or fence
-
Surface treatment:
-
Black Oxide
-
Packing:
-
in Bluk
Quick Details
-
Material:
-
Black Wire
-
Type:
-
Welded Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
factory
-
Brand Name:
-
JinNuo
-
Wire diameter:
-
2.0-4.5mm
-
Mesh opening:
-
100x100,150x150mm,200x200mm
-
Width:
-
1-2.4m
-
Weaving type:
-
Welded Wire Mesh
-
Usage:
-
it is widely used on construction or fence
-
Surface treatment:
-
Black Oxide
-
Packing:
-
in Bluk

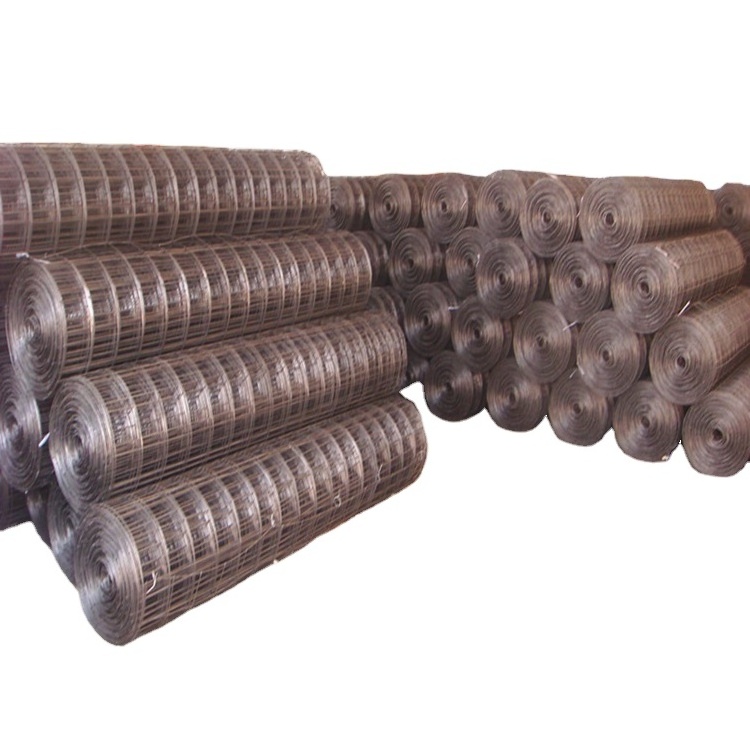

Black Concrete Reinforcement steel Welded Wire Mesh formed by corrugated longitudinal strings and corrugated wire segments distributed as transverse distances determinded and whose contact points are connected by electric welding
It is used in pouring concrete as floors,ceilings,walls, fence, and protective closures,etc.
Mechanical properties:
- Tensile Strength:80,000psi minimun-550N/mm2
- Limit yield strength:70,000psi minimun-480N/mm2
- Reduction of area:30% minimum
Specification Detail
|
Wire Dimater |
Mesh Size |
Roll size |
|
2.0-4.5mm |
100x100mm |
-1.0/1.2/1.5/1.8/2.1/2.4x30m -1.0/1.2/1.5/1.8/2.1/2.4x40m -1.0/1.2/1.5/1.8/2.1/2.4x50m -1.0/1.2/1.5/1.8/2.1/2.4x60m |
|
100x150mm |
||
|
150x150mm |
||
|
150x200mm |
||
|
2.5-5.0mm |
200x200mm |
|
|
300x300mm |
Packing:
1) plastic films
2)in bluk
Shipping:
1.within 20days can ship the order
2.based on customer's request or negoation
1.price:we are the factory ,we make sure our price is cost price compared other factory.if you buy the high price from us compared others,pls kindly tell us, we could remove the different cost
2.Quatity:we make sure the Mesh good protect the rust,and also the quantity have any question, we could change that any time.
3.others services, if you would, pls kindly let us know.your request is our services
