Quick Details
-
Brand Name:
-
Huali brand carton box thin blade slitter scorer
-
Weight:
-
3600 KG
-
color:
-
according to clients
-
usage:
-
carton box making machine
-
thin blade:
-
tungsten steel blade
-
style:
-
add shaft type ,suitable for small cardboard
-
quality:
-
meet EU standard
-
configuration:
-
the most advanced
Quick Details
-
Voltage:
-
380v, or according to your demand
-
Power:
-
4kw
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Huali brand carton box thin blade slitter scorer
-
Weight:
-
3600 KG
-
color:
-
according to clients
-
usage:
-
carton box making machine
-
thin blade:
-
tungsten steel blade
-
style:
-
add shaft type ,suitable for small cardboard
-
quality:
-
meet EU standard
-
configuration:
-
the most advanced

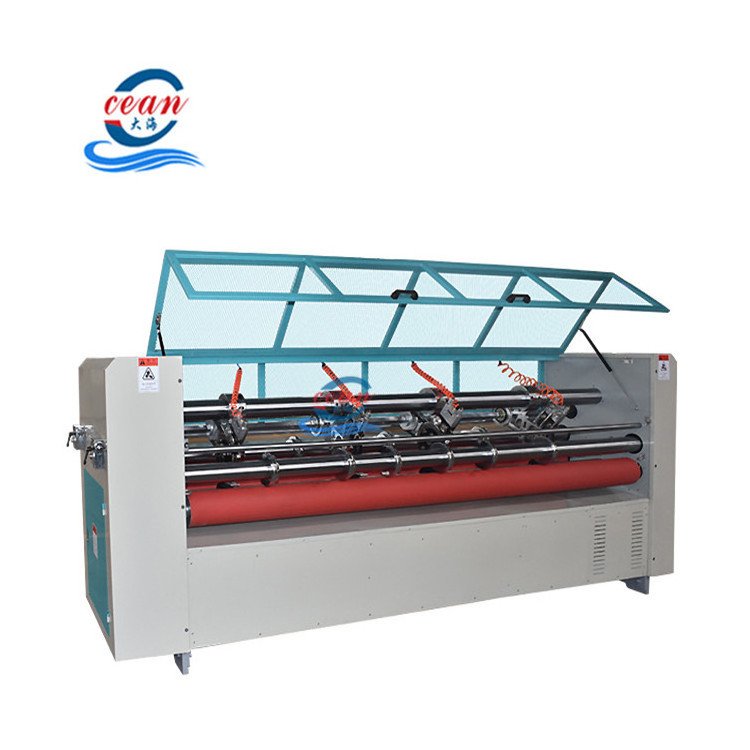

Thin blade slitter scorer , carton box producer , carton box making machine (add shaft type )
1. The blades slitting paper adopt thin blade technology, the thickness of blade is only 1.2mm .after
thin blade slitting , the raw edge of carboard is more tidy, no burr, Without flat tening , and the
straightness is good ,cardboard quality has been greatly enhanced.
2.grinding blade device:the blades can be grinded by two ways ,manually and automatically ,grinding
while working ,improve working efficiency.
3.creasing function:creasing technology is from French,with hard press soft,suitable for
high,medium ,low-grade cardboard,creasing without tearing appearance.
4.thin blade transmission,adopt Synchronous belt (import),transmission noise is small,long using
life.
5. electrical elements,some of them are from Siemens,Schneider
6.this machine is specially designed for small cardboard,the spacing is small between
shafts,belong to 9 shafts machine ,(first feeding paper-then slit-then receiving paper-pressing
paper), so some smaller cardboard can also through ,to adapt the current carton industry.
|
Model |
2000 |
2300 |
2600 |
|
|
Machine dimension(mm) |
2600*750*1400 |
2900*750*1400 |
3200*750*1400 |
|
|
Motor power |
3 |
4 |
4 |
|
|
Max slitting width(mm) |
Inverse |
1900 |
2200 |
2500 |
|
Positive blade |
1800 |
2100 |
2400 |
|
|
Min slitting width(mm) |
Inverse |
305 |
305 |
305 |
|
Positive blade |
140 |
140 |
140 |
|
|
Min slitting length(mm) |
435 |
435 |
435 |
|
|
Min scoring width(mm) |
Positive scoring |
30 |
30 |
30 |
|
Inverse scoring |
80 |
80 |
80 |
|
|
Scoring height(mm) |
0-10 |
0-10 |
0-10 |
|
|
Blade(mm) |
200×122×1.2 |
|||
|
Slitting scoring composed type |
Three blade Four scoring/Four blades Six scoring/Five blade Eight scoring |
|||
