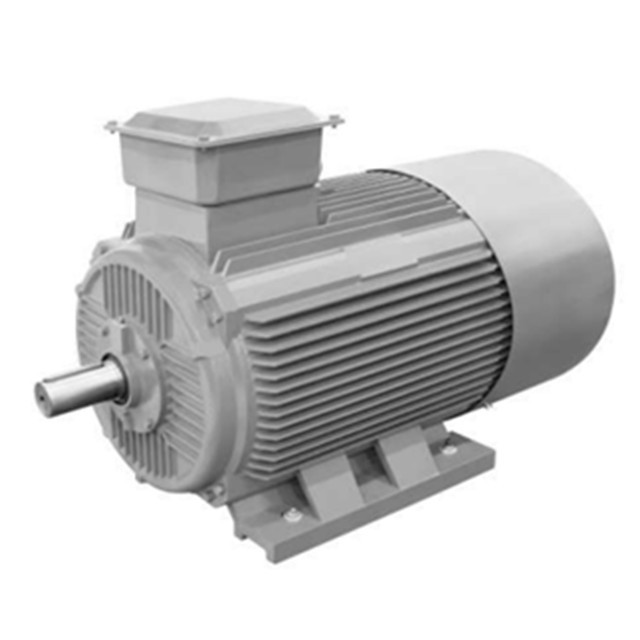

Variable Frequency Three Phase Synchronous Motor

Variable Frequency Three Phase Synchronous Motor

FOB Reference Price: Get Latest Price

≥2 Pieces

US $77

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Seenly

Model Number:: YCP

Frequency:: 150Hz

Product Name:: Parmanent Magnet Synchronous Frequency Coversion Motor

Application:: Compression machinery

Protection class:: IP54/IP55

Cooling method:: IC416

Power:: 0.18kw-200kw

Mounting Type:: B3 B5 B14 B35 B34

Material:: Copper Core

Motor Bearing:: C & U

Insulation class:: B\F

MOQ:: 1

Quick Details

AC Voltage:: 220/380

Warranty:: 12 months

Place of Origin:: Zhejiang, China

Brand Name:: Seenly

Model Number:: YCP

Frequency:: 150Hz

Product Name:: Parmanent Magnet Synchronous Frequency Coversion Motor

Application:: Compression machinery

Protection class:: IP54/IP55

Cooling method:: IC416

Power:: 0.18kw-200kw

Mounting Type:: B3 B5 B14 B35 B34

Material:: Copper Core

Motor Bearing:: C & U

Insulation class:: B\F

MOQ:: 1

Product Overview

Parmanent Magnet Synchronous Frequency Coversion Motor

Feature

1) Strong common ability:IEC standard frame,it can simply interchange with frequency conversion three phase asynchronous motor,without any extra cost.

2) High efficiency:low loss silicon steel sheet,high grade rare earth permanent magnet.Optimization of simulation design verfication,the efficiency grade reaches level 1 energy efficiency.

3) High performance:steady torque,wide constant power range,strong magnetic weakening ability,wide speed range,rated condition,the temperature rise in electric motors is ≦80k.

4) Adaptive capacity:This series motors can be used with a variety of frequency,low temperature rise,high effiency.

5) High strength:the motor structure is made of cast iron,it can protect against strong external shocks.Ensure reliable operation of motor in harsh environment.

6) Control mode:No PG or PG vector control.

7) Vibration level:The maneuvering balance precision of the motor is high.The vibration is level R.

8) Application:Widely used on compression machine,plastic injection machine,textile
machine,printing machine,blower,water pump and so on.

FEATURES AT A GLANCE

Technical characteristic:
Output power:0.18kw-200kw
Rated voltage:380V,220V
Protection class:IP54,IP55
Cool type:IC416
Working system:S1-100%
Mounting type:B3,B5,B35,B14,B34
Installation dimension:IEC standard.
Condition:Altitude:≦1000m,
environment terperature:-15°C ~ +40°C,

relative humidity:≦80%

Fan Cover

Side View

Shaft View

PRODUCT SPECIFICATIONS

Type	Rated Power (kW)	Rated output speed(r/min)	Rated Frequency(Hz)	Rated Torque(N.m)
TYCP90S-2.2-30	2.2	3000	150	7.0
TYCP90L-3.0-30	3	3000	150	9.6
TYCP90L-4.0-30	4	3000	200	12.7
TYCP100L-5.5-30	5.5	3000	200	17.5
TYCP100L-7.5-30	7.5	3000	200	23.9
TYCP132S-11-30	11	3000	200	35.0
TYCP132S-15-30	15	3000	200	47.8
TYCP132M-18.5-30	18.5	3000	200	58.9
