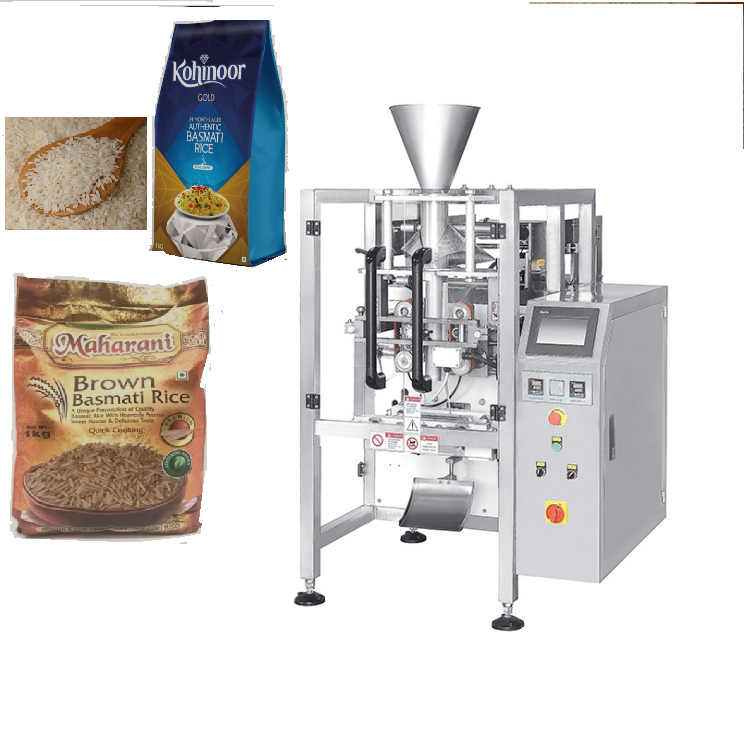

420 automatic 1kg vertical form fill seal pillow bag gusseted bag rice packing machine

420 automatic 1kg vertical form fill seal pillow bag gusseted bag rice packing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

≥5 Sets

US $4880

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 400

Place of Origin:: Guangdong, China

Product name:: vertical Packaging Machine

Bag type:: top, bottom and back seal

Main Function:: Forming Filling Sealing date printing

Packing speed:: 5-60bags/min

Bag width:: 60-200mm

Bag length:: 50-300mm

Film material:: POPP/CPP,POPP/VMCPP, BOP/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET

Capacity:: 150-1300m.

Film thickness:: 0.04-0.08mm

date printer:: include

Quick Details

Function:: FILLING, Sealing

Packaging Type:: Stand-up Pouch, Bags, Film, Foil, Pouch

Packaging Material:: Plastic

Weight (KG):: 400

Place of Origin:: Guangdong, China

Product name:: vertical Packaging Machine

Bag type:: top, bottom and back seal

Main Function:: Forming Filling Sealing date printing

Packing speed:: 5-60bags/min

Bag width:: 60-200mm

Bag length:: 50-300mm

Film material:: POPP/CPP,POPP/VMCPP, BOP/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET

Capacity:: 150-1300m.

Film thickness:: 0.04-0.08mm

date printer:: include

Certifications

Items	420 Vffs packing machine
Packing speed	5-100 bag/min
Bag size	(L)50-300mm (W)60-200mm
Bag making mode	Pillow-type bag, standing bag, punch bag, link bag, hanging bag
Range of measuring	150-1300ml
The maximum width of packing film	420mm
Thickness of film	0.04-0.08mm
Film Material	aluminum laminate foil, POPP/CPP，POPP/VMCPP，BOP/PE，PET/VMPET/PE，PET/AL/PE，NY/PE，PET/PET
Air consumption	200L/min 0.7×105Pa
Main power/voltage	2.2KW/220V 50-60Hz
Dimension	1400×970×1600mm
Gross weight	400kg

Introduction:

1. Suitable: packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips ,Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .
2. The major performance and structural feature:

* Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;

* Precise positioning with servo film transporting system; excellent complete machine performance and nice packing;
* Minimize the loss with complete automatic warn protection function;
* Supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag making;
* The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

What we can do for the bags

You can see, we can do date printing, fill with nitrogen, link bag, hole punching and so on.

Gusset bag making

Our machine can do pillow bag as well as the gusset bag.

Gusset bag

When make gusset bag, please tell us in detail the sealing.

The types of back seal you can choose:

Ready machines:

We can make the standard machines, as well as OEM special for you.

For example this model max roll film is 420mm, but if you want it for 450mm, it is ok, we can do it for you.

Factory room:

we assemble them in this room

Packing Case

All our machines are packed by new and strong polly case, suitable for long transportation by sea or by air

More Packing case

All packages are new and strong, this is for the convecyor/ elevator machines

Container loading

LCL shipment for FCL shipment is accepted.

Working process:

The mechanical process most of them are done by ourselves.

The metal cutting, welding, polishing, cable assembling, electrics assembling and so on.

FRQ

1. What’s the payment terms:

Normally 100% by T/T in advance; for big order can be 30% prepayment and balance before shipment. Sometimes we accept L/C. You canplace order on Alibaba and pay here or contact us for our bank account.

2.What’s the delivery time:

That depends, if we have them in stock, normally after receiving payment we will arrange the earliest shipment for you, within 7days. If production is busy and no stock, that will depends on order quantity. Better to chat with us on Alibaba before you pay.

3. Warrantee:

All the machines we warrantee them for 12 months.

4.After sales service:

We have experienced people who can help you on line by wechat or email.
