Quick Details
-
Product Weight（kg）:
-
2.3
-
Input Voltage(V):
-
3.6v
-
Lamp Luminous Flux(lm):
-
120
-
CRI (Ra):
-
80
-
Beam Angle(°):
-
≥10°
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
NANHUA
-
Products name:
-
low intensity solar power beacon light
-
Light source:
-
LED
-
Intensity:
-
>10cd
-
Flash settings:
-
60time/min(other type can be customized)
-
Light color:
-
Red, (Amber, Green, Blue, White Optional)
-
Vertical divergence:
-
≥10°
-
Continuous operation in rainy time:
-
20 days
-
Weight:
-
2.3Kg
-
IP rate:
-
IP 65
-
solar power:
-
1.8 W
Quick Details
-
Warranty(Year):
-
3-Year
-
Light Source:
-
LED
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
2.3
-
Input Voltage(V):
-
3.6v
-
Lamp Luminous Flux(lm):
-
120
-
CRI (Ra):
-
80
-
Beam Angle(°):
-
≥10°
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
NANHUA
-
Products name:
-
low intensity solar power beacon light
-
Light source:
-
LED
-
Intensity:
-
>10cd
-
Flash settings:
-
60time/min(other type can be customized)
-
Light color:
-
Red, (Amber, Green, Blue, White Optional)
-
Vertical divergence:
-
≥10°
-
Continuous operation in rainy time:
-
20 days
-
Weight:
-
2.3Kg
-
IP rate:
-
IP 65
-
solar power:
-
1.8 W
Product Description

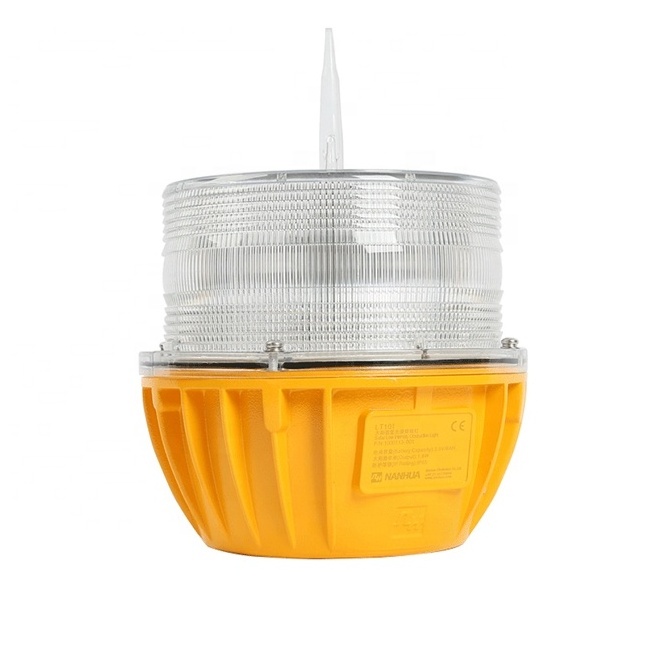

LT101 Solar Aviation Warning Light for Masts & Tower obstacles (Telecommunication, GSM, Radio & TV), tall cranes, chimney, tall buildings, sport stadiums, Light pylons, high voltage towers and any other potentially hazardous obstructions to air traffic.
·
ICAO medium intensity Type B obstacle lights
· FAA type L-864/L-885 Steady-burning red obstruction light & Flashing red obstruction light
· Application: Chimneys, Tall buildings, Large bridges, Port machineries and Wind turbines
Product Size
Product Presentation
General Specifications
|
OPTICS
|
|
|
|
|||
|
Light source
|
LED
|
Flash settings
|
60time/min（other type can be customized）
|
|||
|
Light color
|
Red
|
Intensity
|
≥10cd
|
|||
|
Vertical Divergence
|
≥10°
|
Life time
|
≥100.000h
|
|||
|
Horizontal Divergence
|
360°
|
|
|
|||
|
ELECTRIC
|
|
|
|
|||
|
Solar Battery power consumption
|
1.8W
|
|
|
|||
|
Battery Capacity
|
3.6V/8AH(Maintenance-free)NiMH
|
|
|
|||
|
Continuous operation in rainy time
|
20 days
|
|
|
|||
|
MECHANICA
|
|
|
|
|||
|
Material
|
Base：Aluminum Housing：PC
|
Humidity
|
10%~95%
|
|||
|
Ambient temperature
|
-30℃~+70℃
|
IP Protection
|
IP65
|
|||
|
International standard
|
|
|
|
|||
|
ICAO
|
ICAO(Aerodromes Annex 14)low intensity light TYPE-A
|
|
|
|||
Major Functions&Features
* Based on LED technology.
* Base material-Die casting aluminum LM6, housing with polycarbonate with UV resistance and bird spike.
* Built-in photocell
* Steel wire is used to connect base to housing against falling in operation.
* Built in NiMH battery, ease for replacement.
* No RF-radiations, EMC Compliant
* Shockproof and corrosion resistance
* Extremely Reliable-Major Maintenance cost saving.
* Base material-Die casting aluminum LM6, housing with polycarbonate with UV resistance and bird spike.
* Built-in photocell
* Steel wire is used to connect base to housing against falling in operation.
* Built in NiMH battery, ease for replacement.
* No RF-radiations, EMC Compliant
* Shockproof and corrosion resistance
* Extremely Reliable-Major Maintenance cost saving.
