Quick Details
-
Conductor:
-
CCA/CCS/BC
-
Number of conductor:
-
1-400pairs
-
Shiled:
-
UTP/Polyester Tape/Al Foil
-
Color:
-
Any
-
Key words:
-
Cat3 Multipair Cable 10 Pair
-
Insulation:
-
PE/HDPE
-
PVC:
-
LSZH/ROHS
-
Application:
-
audio transmission/communication
Quick Details
-
Brand Name:
-
ADP or OEM
-
Model Number:
-
Multipair cable B
-
Place of Origin:
-
China(Mainland)
-
Conductor:
-
CCA/CCS/BC
-
Number of conductor:
-
1-400pairs
-
Shiled:
-
UTP/Polyester Tape/Al Foil
-
Color:
-
Any
-
Key words:
-
Cat3 Multipair Cable 10 Pair
-
Insulation:
-
PE/HDPE
-
PVC:
-
LSZH/ROHS
-
Application:
-
audio transmission/communication

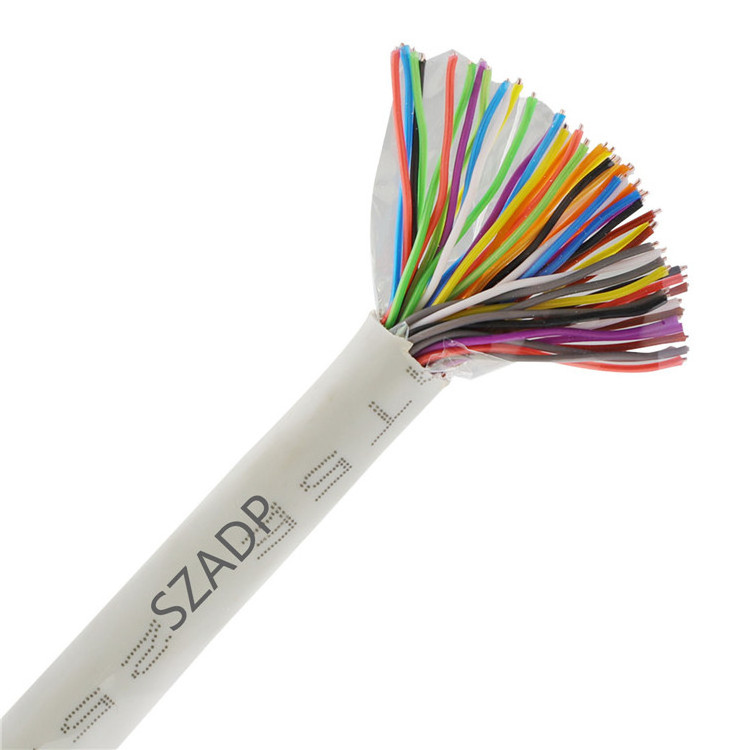

Bare Copper Conductor Cat3 Multipair Cable 10 Pair Wooden Spool
Product description:
- Feature different strand lay-length, keeping good NEXT and FEXT, anti-electromagnetic disturb improvement .
- Structure bare copper, PE insulation, FR PVC/LSOH PVC jacket, twinning structure, flexible added, easily cabling.
- Telephone cable trunk transmission .
| Model NO. | Cat3 Multipair Cable 10 Pair |
| Conductor Dimension | 0.37mm/0.40mm/0.50mm, 24AWG |
| Conductor Material | OFC/CCC/CCA/CCS |
| Insulation | 1. Water blocking swellable tape (optional) |
| 2. HD-PE (High density polyethylene) | |
| 3. 1.0mmHD-PE(Highdensity polyethylene) | |
|
Number of Twisted Pair |
2P/5P/7P/10P/16P/20P/25P/30P/32P/
50P/100P/150P/200P |
| Shielding | UTP/Polyester Tape/Al Foil |
| Ripcord yes/no | Yes with Nylon |
| Jacket | PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)/PE |
| Separator | Mylar Spirally Wrapped |
| Color | Different color is available |
| Operating temperature | -20 ° C - +75 ° C |
| Service Life | 20~25 years |
