Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vatti glass
-
Model Number:
-
Solar glass
-
Size:
-
Can be customized by the customer's request
-
Colors:
-
Ultra clear, clear
-
Function:
-
Heat reflective glass, acid etched
-
Technique:
-
Clear glass, coated glass, figuerd glass, tempered glass
-
Packing:
-
Wooden Cases
-
Certificate:
-
CE, ISO, CCC
Quick Details
-
Application:
-
Supermarket, Outdoor, Office Building, Mall, Apartment, Villa, Hotel, Hall
-
Usage:
-
Solar, Greenhouse
-
Thickness:
-
1mm-19mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vatti glass
-
Model Number:
-
Solar glass
-
Size:
-
Can be customized by the customer's request
-
Colors:
-
Ultra clear, clear
-
Function:
-
Heat reflective glass, acid etched
-
Technique:
-
Clear glass, coated glass, figuerd glass, tempered glass
-
Packing:
-
Wooden Cases
-
Certificate:
-
CE, ISO, CCC

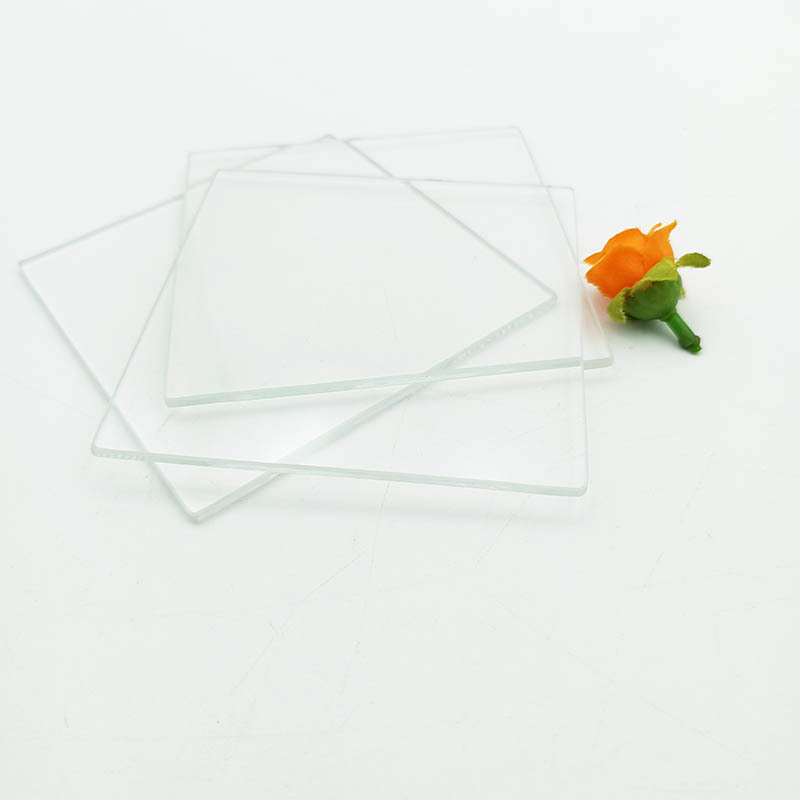

Solar AR coating ultra clear glass is a kind of low iron glass with transmittance higher than 94%. It adopted special process and proprietary formula, speciallyapplied in solar-thermal and solar-PV fields, with superior weather resistance and processability.
Application:
1. Front panel glass of thin film PV module : High solar transmittance and photoelectric conversion efficiency.
2. Flat plate solar collector : high transmittance andsolar thermal conversion efficiency.
3. CSP solar mirror : Make full use of high reflectivity of solar mirror; improve the thermal efficiency, thereby enhancing the overall efficiency ofthermal power generation.
4. BIPV Projects : solar low iron float glass can be used as front panel and encapsulated glass of thin film PV modules, its application in BIPV, not only meets the requirement of building indoor day lighting, but also satisfies the function of power generation, BIPV is the main trend in the development of the future buildings.
5. Greenhouse glass : It can promote the photosynthesis of plants, shorten the growth period of plants and achieve greater economic benefits for customers.
|
Product Name |
Ultra white clear AR coating solar glass |
|
Thickness(mm) |
3.2mm 4mm |
|
Color |
Ultra Clear |
|
Visible light transmittance |
91.60% |
|
Visible light reflectance |
7.3% |
|
Iron Content |
100 ppm |
|
Density |
2.5g/cc |
|
Solar transmittance |
92% |
|
Solar reflectance |
7.4% |
|
Total solar heat gain coefficient |
92.2% |
|
UV transmittance |
86.8% |
|
Shading coefficient |
1.04% |
