Quick Details
-
Model Number:
-
Y2-160L-6 11KW 970RPM
-
Frequency:
-
50HZ
-
Motor Center Height:
-
H160(mm)
-
Protection Degree:
-
IP54/IP55
-
Cooling Method:
-
IC411
-
Insulation Class:
-
F Class
-
Mounting Type:
-
IMB3 / IMB5 / IMB35 / IMV1
-
Function:
-
the machine tools for cutting metals, exhaust fan, compressors, etc
-
Gereral Use 01:
-
Ordinary industry , rolling mill machine, plastic extruding
-
Gereral Use 02:
-
Driving equipments, mining, metallurgy, printing, paper making, etc
Quick Details
-
AC Voltage:
-
220/380V, 380/660V or on your request
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WPDJ
-
Model Number:
-
Y2-160L-6 11KW 970RPM
-
Frequency:
-
50HZ
-
Motor Center Height:
-
H160(mm)
-
Protection Degree:
-
IP54/IP55
-
Cooling Method:
-
IC411
-
Insulation Class:
-
F Class
-
Mounting Type:
-
IMB3 / IMB5 / IMB35 / IMV1
-
Function:
-
the machine tools for cutting metals, exhaust fan, compressors, etc
-
Gereral Use 01:
-
Ordinary industry , rolling mill machine, plastic extruding
-
Gereral Use 02:
-
Driving equipments, mining, metallurgy, printing, paper making, etc
Y2-160L-6 11KW 15HP 380 v volt 970RPM brushless ac 3 three phase asynchronous induction electric motor
Y2 Series Cast Iron Three Phase Asynchronous Induction Motor
| Power: | 0.75kw - 315KW |
| Voltage: | 380V/400V |
| Speed: | 750RPM/1000RPM/1500RPM/3000RPM |
| Protection Degree: | IP54/IP55 |
| Cooling method: | IC411 |
| Insulation Class: | F |
| Duty: | S1 |
| Package: | Export Wooden Package |
| Payment: | 30% in advance, balance by T/T or L/C at sight |
The Y2 series motor is fully enclosed three-phase industrial standard motors with self-fan cooling system and a mouse-cage construction.
Y2 series has been designed and engineered in compliance with the latest
technical knowledge and production process,and has reached EFF1 & EFF2 efficiency
Standard.
It features it's high efficiency, energy saving, low noise, low vibration, light weight and reliability of running.
It is widely used on the mechanical equipment in common place where there are no inflammable, explosive and corrosive gases and in place with no special requirements, suchas the machine tools for cutting metals, exhaust fan, compressors, etc.
Working Condition
1. Ambient Working Temperature: Ambient temperature varying with seasons should be between 40℃ and -15 ℃ .
2. Altitude: Not over 1000m above sea level.
3. The average relative humidity in the most moisture month is 90%. And meanwhile, the average lowest temperature should not be over 25℃ .
4. Termination: Y connection below 3KW. Delta connection if over 4KW.
5. Operation Mode(duty): S1.
Mounting
Frame Size(H80-H160): IM B3, B5, B35, V1, B14, B34, V3,V5, V6, V15, etc.
Frame Size(H180-H280): IM B3, B5, B35, V1.
Frame Size(H315-H355): IM B3, B35, V1

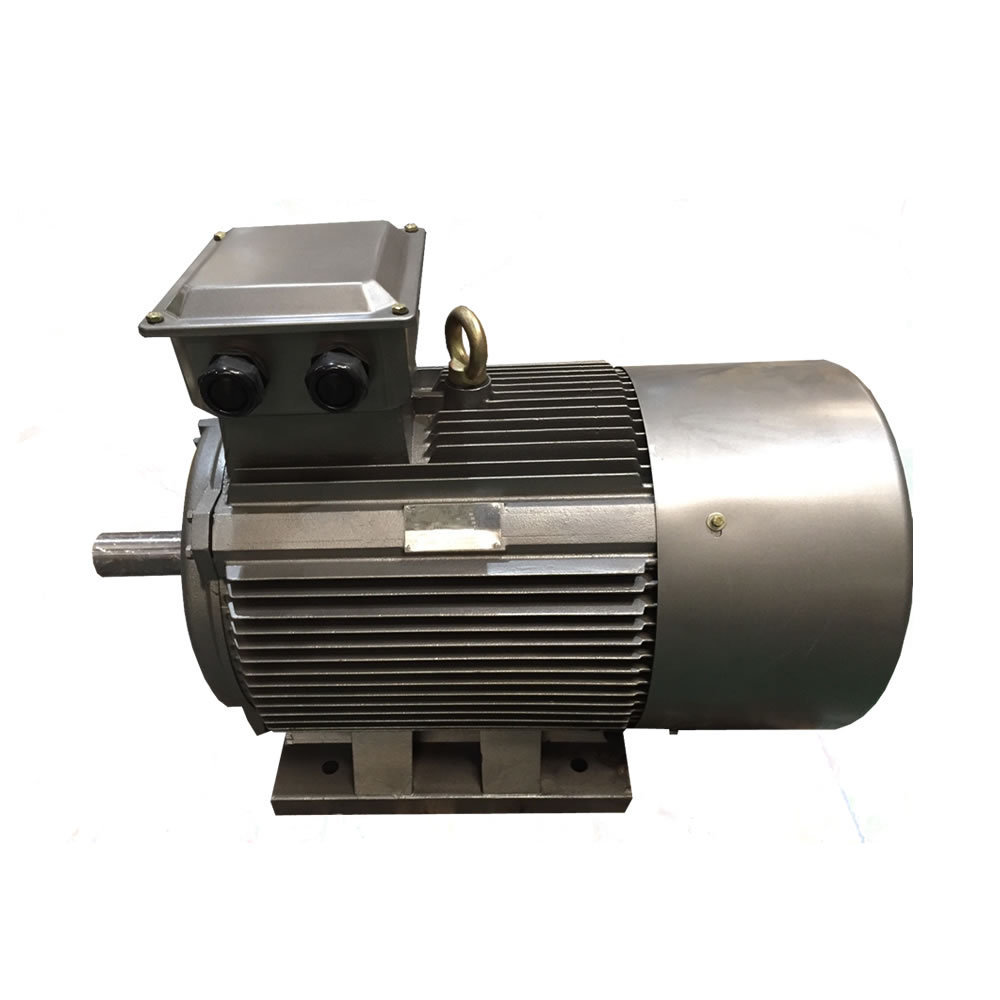

Product show
