Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ez-Cad
-
Place of Origin:
-
China
-
Brand Name:
-
Baikeopto
-
Weight (KG):
-
30 KG
-
Marking Area:
-
110*110/150*150mm
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
CO2
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ez-Cad
-
Place of Origin:
-
China
-
Brand Name:
-
Baikeopto
-
Weight (KG):
-
30 KG
-
Marking Area:
-
110*110/150*150mm
Product Description
Product Paramenters
|

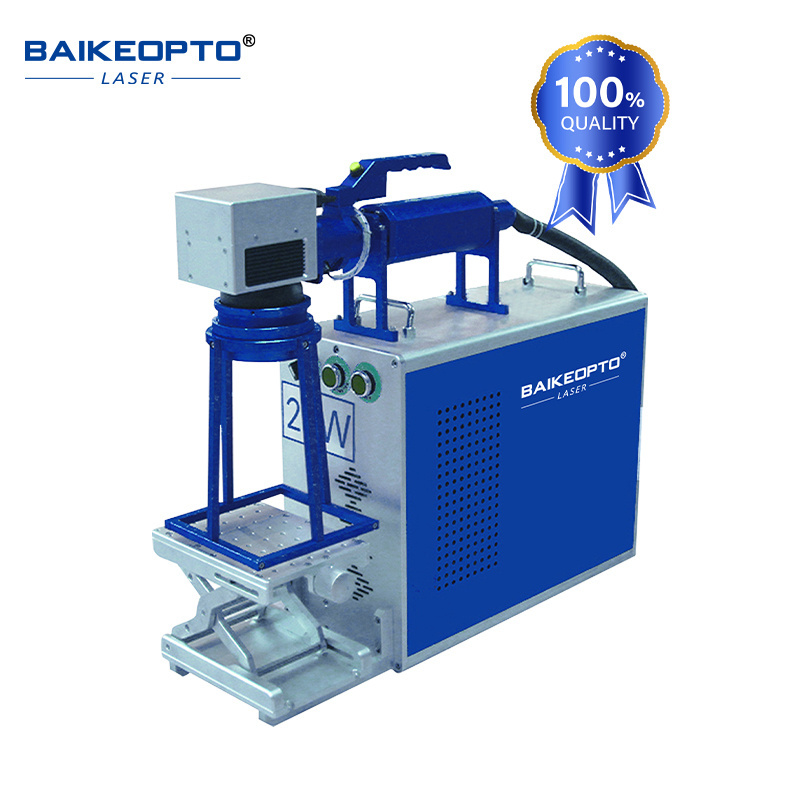

Model:
|
FM-400S
|
|
Laser Power：
|
20W/30W
|
|
Laser wavelength：
|
1064nm
|
|
Laser quality:
|
M2＜1.4
|
|
Output frequency:
|
20KHZ-80KHZ
|
|
Marking area:
|
110*110/150*150(mm)
|
|
Min line width：
|
0.01mm
|
|
Repetition accuracy:
|
±0.0001mm
|
|
Electrical requirement:
|
AC 90-250V/50HZ 5A
|
|
Marking speed：
|
0-5000mm/s
|
|
Cooling system:
|
Air-cooling
|
|
N.W.：
|
30KGS
|
|
G.W.：
|
43KGS
|
|
machine size(mm):
|
220*630*680(MM)
|
Detail Images
Galvanometer
The galvabometer is an important factor to determine the marking quality. The small size of the galvanometer is suitable for harsh enviroment.
Worktable
Standard positioning hole, convenient for fast positioning,
adjustable position can achieve a variety of combinations ,multi-station printing with software to improve work efficiency.
Field lens
The field lens scanning system adopts new technology,new materials,new technique and new working principle to design and manufacture.
control switch
Humanized control system ,control switch,power switch,power switch,laser switch,USB interface with leakage protection .
Vents
The laser machine has a heat dissipation desigh on the back and sides,which dissipates heat quickly and improves work efficiency.
.
