Quick Details
-
Product name:
-

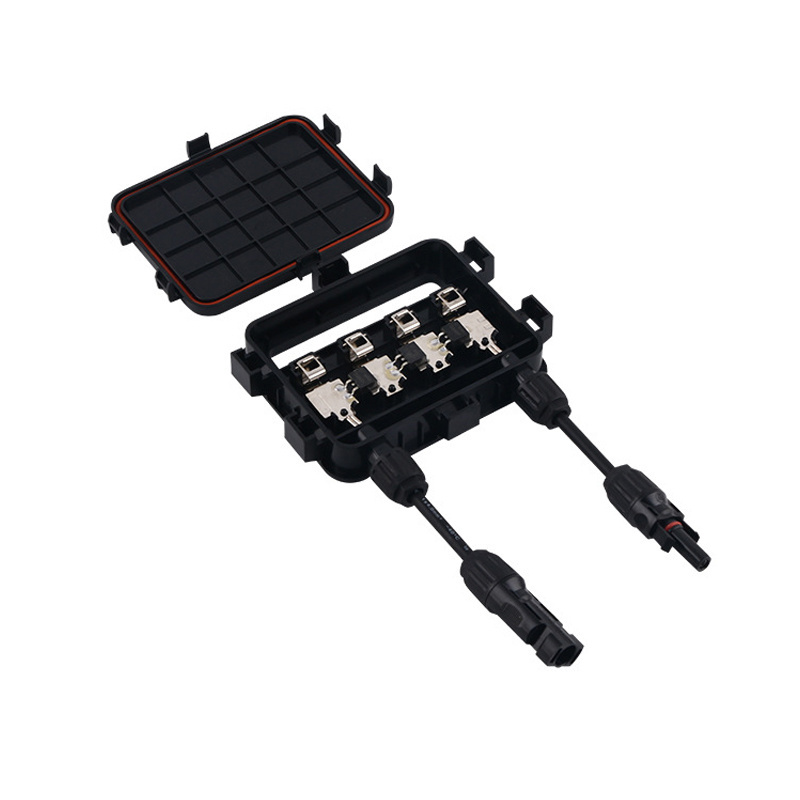

Solar junction box
-
Size:
-
127.2*105.7*24.0mm
-
Rated Voltage:
-
1000V
-
Rated Current:
-
12-16A
-
Working Temperature Range:
-
-40℃~+85℃
-
IP Grade:
-
IP68
-
Safety Class:
-
Class II
-
Insulation Material:
-
PPO
-
OEM&DOM:
-
Acceptable
-
Packing:
-
Carton
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Solar Point
-
Model Number:
-
SP-LH0702
-
Product name:
-
Solar junction box
-
Size:
-
127.2*105.7*24.0mm
-
Rated Voltage:
-
1000V
-
Rated Current:
-
12-16A
-
Working Temperature Range:
-
-40℃~+85℃
-
IP Grade:
-
IP68
-
Safety Class:
-
Class II
-
Insulation Material:
-
PPO
-
OEM&DOM:
-
Acceptable
-
Packing:
-
Carton
OEM&ODM Services
Products Description
|
Certificate
|
TUV SUD
|
|
|
Overall Dimension
|
127.2*105.7*24.0mm
|
|
|
Rated Voltage
|
1000V
|
|
|
Rated Current
|
12-16A
|
|
|
Power
|
200-400W
|
|
|
Working Temperature Range
|
-40℃～+85℃
|
|
|
Diode Model
|
20SQ045~30SQ045 (R6) or (TO263)
|
|
|
Diode number
|
3
|
|
|
Safety Class
|
Class II
|
|
|
IP Grade
|
IP68
|
|
|
Section area of cable
|
1*2.5~6.0mm²
|
|
|
Contact Material
|
Copper Tin Plated
|
|
|
Insulation Material
|
PPO
|
|
|
Flame class
|
UL94-V0
|
|
|
Optional Connector
|
MC 4 compatible
|
|
|
The rated current will be changed when the box is fixed with different types of diode.
|
|
|
LH858A
Main characteristic
●
The junction box is sealed by sealing ring.
●
The cable is connected by stamping, the ribbon bands are connected by clamping.
●
Certification: TUV SUD,
Stand: IEC62790
●
With the capacity of age and UV-resistance.
●
The PV junction box can be used atrocious weather.
