egg tray making machine for small business egg carton egg box cup holder machines manufacturing

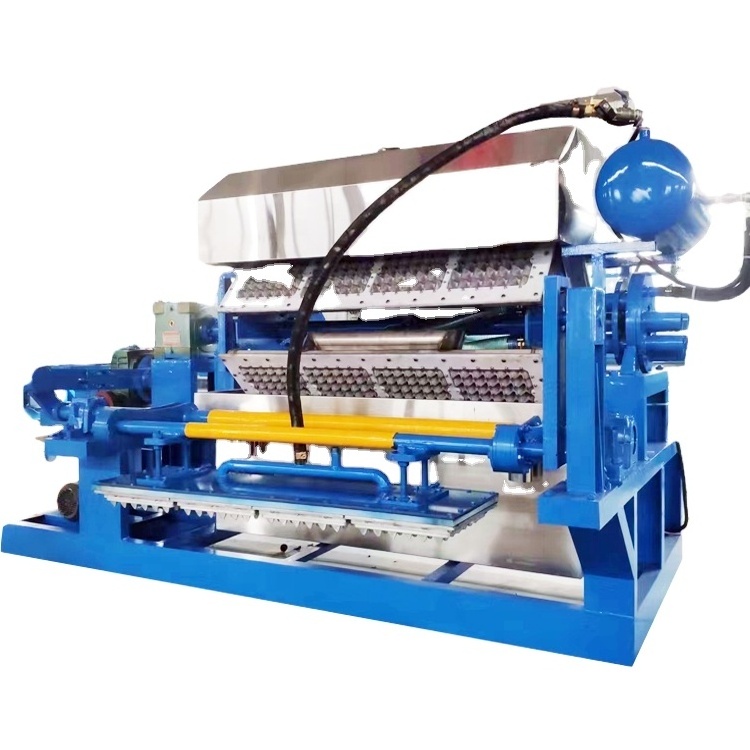

Paper Egg Tray Machine is used to process raw material waste paper into egg tray/carton/box, bottle holder, fruit tray and shoe cover etc. Whole production will be finished by one production line. In this production line, their main engine has three types reciprocating type, Tumblet Type and rotation type which working method is different. Usually rotation type machine capacity is bigger.

pulp making system : Put the waster paper in to the Hydraulic pulper,, the paper and water will mix in Hydraulic pulper,r ,then go to the refiner machine, refiner machine make  the pulp more small  and uniform, then the pulp pump absorb the pulp to the pulp pool. after the second mix in the pulp pool, the pulp will go to the form machine pulp tank. forming system : 1.The vacuum pump will give the vacuum to make the forming mold absorb the pulp from the pulp tank. 2.there is a PLC control the pulp absorb time,the finished product will be shaped on the forming mold, then the transfer mold transfer the products to the drying line, the air compressor will give the air to blow the products, then the products will be fall from the mold. 2.the products delivery to the drying line automatic. the water will be go back to the water pool. will be recycle. drying system (can use gas,diesel,coal on the drying line)1.There are burners and blowers on the drying line. 2. burner give the hot power and the blower increase it, there will be hot air mouth in the drying line also blow the hot air. 3.the drying line is protect by the insulation board. the degree can reach 200 degree. automatic counting:

Packaging 1. Out package: Standard marine export wood cases; 2. Inner package:Stretch film and plastic film for humidity; 3. Customized according to your requirement. Shipping Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements. Sea freight: FOB/CIF/DDU quotation are all available. Transport method: By logistics; by automobile; by train; by shipping; by air etc.

The machine not only produces egg trays, but also can produce paper trays of various shapes and sizes, such as egg boxes, fruit trays, coasters, shoe trays, various industrial packaging trays, etc., just by changing the mold. Pallet molds can also be customized according to your needs to meet different market requirements.
