Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
UESEN
-
Model Number:
-
PWM 1.2KW/12V
-
Input Voltage:
-
110VAC
-
Output Voltage:
-
110VAC
-
Output Frequency:
-
50HZ or 60HZ
-
Size:
-
352*235*110MM
-
Certificate:
-
CE
-
Warranty:
-
1 years
-
Weight:
-
8.3-10kg
-

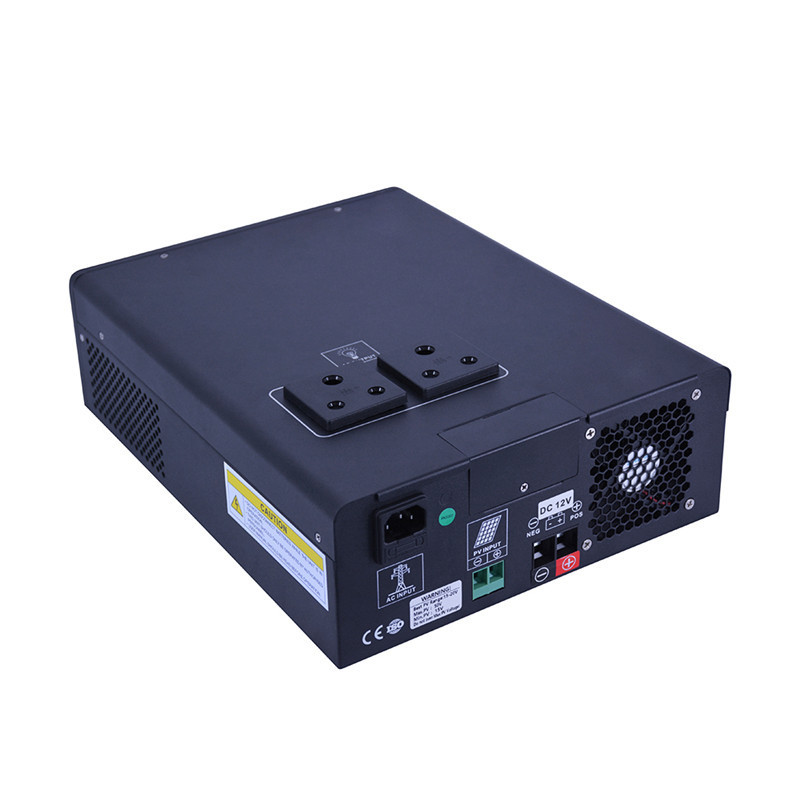

Product name:
-
Solar inverter
-
Inverter type:
-
Pure sine wave inverter+Solar controller+ups
-
Voltage:
-
12V
-
Output Watt:
-
1200W
-
PV Charging Method:
-
PWM
-
MAX Solar Charge Current:
-
60A
-
Battery type:
-
Lead-acid battery/ water battery / lithium battery
-
Output waveform:
-
Sine Wave Output
-
Protection:
-
Overvoltage,Overload,Short circuit,Overheat
-
Display:
-
LED
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/DC Converters, DC/AC Inverters, AC to DC
-
Inverter Efficiency:
-
>98%
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
UESEN
-
Model Number:
-
PWM 1.2KW/12V
-
Input Voltage:
-
110VAC
-
Output Voltage:
-
110VAC
-
Output Frequency:
-
50HZ or 60HZ
-
Size:
-
352*235*110MM
-
Certificate:
-
CE
-
Warranty:
-
1 years
-
Weight:
-
8.3-10kg
-
Product name:
-
Solar inverter
-
Inverter type:
-
Pure sine wave inverter+Solar controller+ups
-
Voltage:
-
12V
-
Output Watt:
-
1200W
-
PV Charging Method:
-
PWM
-
MAX Solar Charge Current:
-
60A
-
Battery type:
-
Lead-acid battery/ water battery / lithium battery
-
Output waveform:
-
Sine Wave Output
-
Protection:
-
Overvoltage,Overload,Short circuit,Overheat
-
Display:
-
LED
Product Description
Specification
|
Product name
|
Solar inverter
|
|
|
||
|
Rated input voltage
|
220VAC(standard)/110VAC(customized)
|
|
|
||
|
Voltage range
|
220V：154-284VAC±3V(Normal mode)185-264VAC±3V(UPS mode
110V：77-132VAC±3V(Normal mode)92-132VAC±3V(UPS mode)
|
|
|
||
|
Frequency range
|
50/60Hz±5%
|
|
|
||
|
Qutput rated power
|
1000W
|
1200W
|
1600W
|
||
|
AC model output Voltage
|
The output voltage under the mains is the same as the input voltage
|
|
|
||
|
AC model outout frequency
|
The output frequency under the mains is the same as the input frequency
|
|
|
||
|
Output voltage under inverter
|
220VAC±10%(110VAC±10%)
|
|
|
||
|
Output frequency under inverter
|
550HZor60HZ±1%
|
|
|
||
|
Output waveform under inverter
|
Pure sine wave
|
|
|
||
|
Battery Type
|
External lead-acid battery or water battery or lithium battery
|
|
|
||
|
Battery voltage
|
12VDC/24VDC
|
|
|
||
|
battery charging voltage
|
13.7VDC/27.4VDC
|
|
|
||
|
Maximum photovoltaic array power
|
12V:800W 24V:1600W
|
|
|
||
|
PV input voltage ronge(PWM)
|
12V:PWM 15V-30VDC(50VDC) 24V:PWM 30V-60VDC(105VDC)
|
|
|
||
|
Maximum photovoltaic array open circuit voltage
|
12V:PWM 30VDC(50VDC) 24V:PWM 60VDC(105VDC)
|
|
|
||
|
Optimal Vmp working range
|
12V:PWM 15V-20VDC, 24V:PWM 30V-40VDC
|
|
|
||
|
Maximum Solar Charging Current
|
60A
|
|
|
||
|
Maximum AC charging current
|
25A/13A
|
29A/15A
|
19A
|
||
|
Transfer time
|
≤10ms(UPS mode)/≤20ms(INV mode)
|
|
|
||
|
load peak ratio
|
(MAX)3:1
|
|
|
||
|
Standby power consumption (w)
|
Toroidal Transformer12VMachine:8W 24VMachine:16W
|
|
|
||
|
Protective function
|
Under mains power:input overcurrent non-fuse awitch protection ( Under inverter.overload protection,short circuit protection,low voltage protection,battery reverse polarity protection(fuse)
|
|
|
||
|
Status Display
|
Color segment code screen plus LED display .
You can view parameters such as AC voltage,AC frequancy,PV voltage.PV current,output voltage,output frequency battery voltage,and load current
through the page turning key.
LED display mains power.charging status,inverter status,foult status
|
|
|
||
|
Voice prompt
|
Tho buzzer has different alarm sounds according to different fault codes,which are distinguished by long and short sounds
|
|
|
||
|
Operating temperature
|
0-40℃
|
|
|
||
|
Storage temperature
|
-15℃-45℃
|
|
|
||
|
size(L*W*H)mm
|
352*235*110mm
|
|
|
||
