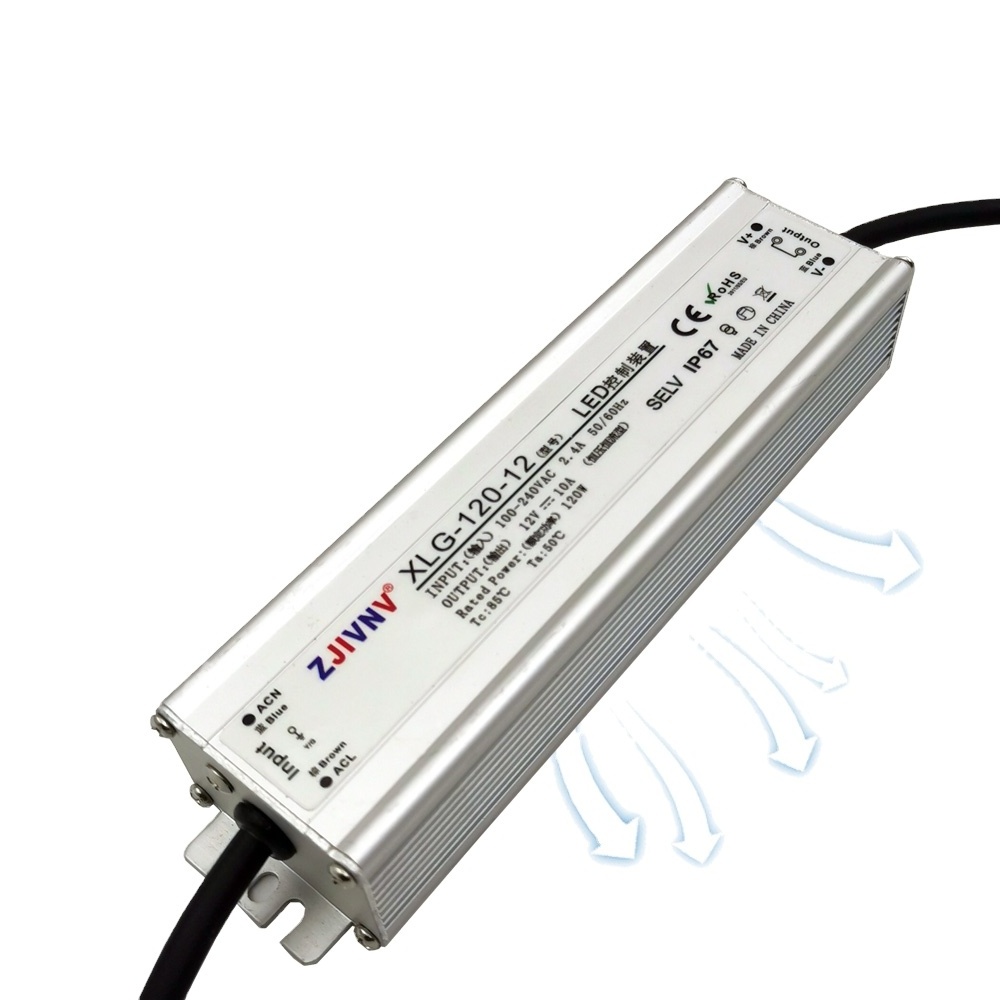

Mini size 100W 120W waterproof ac dc switching led power supply 12V 24V 36V 48V led driver IP67 mini Size outdoor smps 10A 5A

Mini size 100W 120W waterproof ac dc switching led power supply 12V 24V 36V 48V led driver IP67 mini Size outdoor smps 10A 5A

FOB Reference Price: Get Latest Price

≥2 Pieces

US $9.5

≥200 Pieces

US $9.12

≥500 Pieces

US $8.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ZJIVNV

Model Number:: XLG-120w/100w

Output Frequency:: Above 24KHZ

Output Current:: 10

Color:: XLG-120-12, XLG-120-24, XLG-120-36, XLG-120-48, XLG-100-12, XLG-100-24, XLG-100-36, XLG-100-48

name:: High-frequency waterproof power supply

Size:: 190*49*34mm

input voltage:: 100VAC~220VAC

Characteristics:: Mini size, saving space.

Output Power:: 120w

Quick Details

Input Voltage:: 220VAC

Output Voltage:: 12V

Place of Origin:: Zhejiang, China

Brand Name:: ZJIVNV

Model Number:: XLG-120w/100w

Output Frequency:: Above 24KHZ

Output Current:: 10

Color:: XLG-120-12, XLG-120-24, XLG-120-36, XLG-120-48, XLG-100-12, XLG-100-24, XLG-100-36, XLG-100-48

name:: High-frequency waterproof power supply

Size:: 190*49*34mm

input voltage:: 100VAC~220VAC

Characteristics:: Mini size, saving space.

Output Power:: 120w

Product Paramenters

Advantage:

· ·International universal AC input voltage range ·-Constant voltage, constant current, constant power mode output ·-Protection characteristics: short circuit/overload -- Natural air cooling ·-Fully filled with adhesive, meeting IP65/IP67 protection level, can be installed indoors/outdoors --Suitable for dry, humid, and rainy environments ·-2 years quality guarante e

Can sure for ·Street lighting, Wall washing lamp, Patio lamp, Fishing lantern, Floodlight, Plant lighting, Building lighting, Electronic instruments, equipment, and devices

	Model	XLG-100-12	XLG-100-24	XLG-100-36	XLG-100-48
Output	DC Output voltage	12V	24V	36V	48V
		Rated output current	8.3A	4.2A	2.8A	2.1A
		Constant current range	6~12V	12~24V	18~36V	24~48V
		output power	99.6W	100W	100W	100W
		Ripple and Noise	150mVp-p	150mVp-p	180mVp-p	200mVp-p
		Voltage accuracy	±3%	±1.5%	±2%	±2%
		Linear adjustment rate	±0.5%	±0.5%	±0.5%	±0.5%
		Load adjust rate	±2%	±0.5%	±0.5%	±0.5%
		Setup rise hold up time	500ms, 80ms, 16ms/230VAC at full load
Input	Input voltage range	95~264VAC 47~63Hz 135~373VDC
		AC input current	1.2A/230VAC
		Efficiency	88%	88%	88%	91%
		Impact current	Cold-start current 25A/230VAC
		leakage current	<2mA/240VAC
Proctection	Overload proctection	95%~108% of rated output power start overload protection
	Overload proctection			Protection mode: isolation mode, which can automatically restore normal output after abnormal conditions are removed
		Short circuit protection	hiccup mode, which can automatically restore normal output after abnormal conditions are removed
Environment	Working temperature and humidity	-20°C~+60°C(Refer to output derating curve),20%~90%RH
		Storage temperature and humidity	-40°C~+85°C 10%~95%RH
		Shock resistance	10-500Hz,3G 10min/cycle,60min
Safety	Withstand voltage	Input and output internal(I/P~O/P):1.5KVAC,Input and enclosure(I/P~FG):1.5KVAC,Output and enclosure(O/P~FG):0.5KVAC
Safety		Isolation resistance	Input and output internal(I/P~O/P),Input and enclosure(I/P~FG),Output and enclosure(O/P~FG):100M Ohms/500VDC/25℃/70%RH
Compliance with standards	Safety standards	IEC 60950-1,GB4943
		EMC emission	EN55022 Class A,GB9254 Class A
		EMC immunity	EN61000-4-2,3,4,5,6,8,11
Other	Dimension	1904934mm (LWH)
Other		Weight	0.65kg

	Model	XLG-120-12	XLG-120-24	XLG-120-36	XLG-120-48
Output	DC Output voltage	12V	24V	36V	48V
		Rated output current	10A	5A	3.3A	2.5A
		Constant current range	6~12V	12~24V	18~36V	24~48V
		output power	120W	120W	118.8W	118.8W
		Ripple and Noise	150mVp-p	180mVp-p	180mVp-p	200mVp-p
		Voltage accuracy	±3%	±2%	±2%	±2%
		Linear adjustment rate	±0.5%	±0.5%	±0.5%	±0.5%
		Load adjust rate	±2%	±0.5%	±0.5%	±0.5%
		Setup rise hold up time	500ms, 80ms, 16ms/230VAC at full load
Input	Input voltage range	95~264VAC 47~63Hz 135~373VDC
		AC input current	1.4A/230VAC
		Efficiency	88%	88%	90%	91%
		Impact current	Cold-start current 25A/230VAC
		leakage current	<2mA/240VAC
Proctection	Overload proctection	95%~108% of rated output power start overload protection
	Overload proctection			Protection mode: isolation mode, which can automatically restore normal output after abnormal conditions are removed
		Short circuit protection	hiccup mode, which can automatically restore normal output after abnormal conditions are removed
Environment	Working temperature and humidity	-20°C~+60°C(Refer to output derating curve),20%~90%RH
		Storage temperature and humidity	-40°C~+85°C 10%~95%RH
		Shock resistance	10-500Hz,3G 10min/cycle,60min
Safety	Withstand voltage	Input and output internal(I/P~O/P):1.5KVAC,Input and enclosure(I/P~FG):1.5KVAC,Output and enclosure(O/P~FG):0.5KVAC
Safety		Isolation resistance	Input and output internal(I/P~O/P),Input and enclosure(I/P~FG),Output and enclosure(O/P~FG):100M Ohms/500VDC/25℃/70%RH
Compliance with standards	Safety standards	IEC 60950-1,GB4943
		EMC emission	EN55022 Class A,GB9254 Class A
		EMC immunity	EN61000-4-2,3,4,5,6,8,11
Other	Dimension	1904934mm (LWH)
Other		Weight	0.65kg
Note	1. Unless otherwise specified, all parameters are measured at 230VAC voltage input, rated load and 25℃. 2. Ripple and noise voltage are measured at 20MHz bandwidth oscilloscope with 12-inch twisted pair terminal plus 0.1μ and 47μ. 3. Rongmei is the sum of the setting error, voltage regulation rate and current regulation rate of electric medicine. 4. The power supply shall be considered as a part of the components in the system, and electromagnetic compatibility shall be confirmed in combination with the terminal equipment.
