Quick Details
-
Product Name:
-
WL20
-
Color:
-
Gold
-
Usages:
-
Welding Stainless Steel Plate
-
Standard:
-
EN26848/ISO6848
-
Certification:
-
ISO9001
-
Material:
-
2%LaO and the rest is tungsten
-
Place of origin:
-
Zibo Shandong China
-
Length:
-
175mm
-
Diameter:
-
3.2mm
-
Operating current:
-
DC/AC
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Really
-
Model Number:
-
WL15
-
Product Name:
-
WL20
-
Color:
-
Gold
-
Usages:
-
Welding Stainless Steel Plate
-
Standard:
-
EN26848/ISO6848
-
Certification:
-
ISO9001
-
Material:
-
2%LaO and the rest is tungsten
-
Place of origin:
-
Zibo Shandong China
-
Length:
-
175mm
-
Diameter:
-
3.2mm
-
Operating current:
-
DC/AC
WL20 3.2mm*175mm Gold tip tig welding tungsten
The description of WL20 welding tungsten
Lanthanum Tungsten Electrode is well known its good welding performance,it is the electrode added with 1-2% of LaO the power of its electronic transgression is 2.7-2.8ev Bearing the closest features to those of thorium-Tungsten Electrode.Its arc features and burn spoilage endurance are better when used in small or medium currents conditon
Lanthanaum-Tungsten Electrode is the most prodising substitutin product of thorium -tungsten electrode because of its nonradiation. Its another advantage is the endurance of high current but low burn spoilage rate.

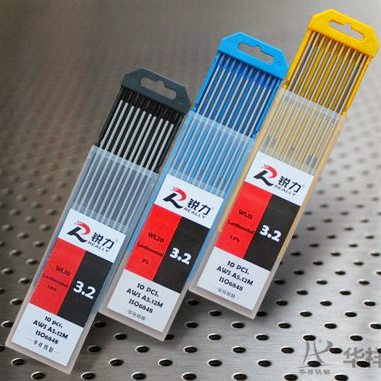

The Picture of tip tig welding tungsten
The Technical Date of welding lanthanum- tungsten
| Model | Oxide Addictive | Impurities Conntent% | Tungsten Content% | Color Standard | Standard | |
| Varieties | Content% | |||||
| WL10 | La2O3 | 0.80-1.20 | <0.2 | Remainder | Black | ISO 6848 AWS A5.12M |
| WL15 | La2O3 | 1.30-1.70 | <0.2 | Remainder | Golden | |
| WL20 | La2O3 | 1.80-2.20 | <0.2 | Remainder |
Sky blue
|
|
The Usage of lanthanum- tungsten
It is used Now Thorium -tungsten electrode is widely used in welding carbon steel stainless nickel alloy and titanium metal It
becomes the first selection material for high quality welding.
