Quick Details
-
Displacement:
-
168.9cc
-
Parking Brake:
-
Hand-Actuated
-
Front Tires:
-
AT21x7-10
-
Rear Tires:
-
AT22x10-10
-
Front Suspension:
-
Dual A-Arm
-
Rear Suspension:
-
Dual Shock Swing arm
-
Cooling:
-
Air cooled
-
Volumetric Compression Ratio:
-
9.2:1
-
Fuel System:
-
Carburetor / Electronic Fuel Injection
-
Ignition type:
-
C.D.I / E.C.U
-
Start type:
-
Electric
Quick Details
-
Brand Name:
-
ZIMO
-
Dimension:
-
2450x1220x1530mm
-
Place of Origin:
-
Shanghai, China
-
Displacement:
-
168.9cc
-
Parking Brake:
-
Hand-Actuated
-
Front Tires:
-
AT21x7-10
-
Rear Tires:
-
AT22x10-10
-
Front Suspension:
-
Dual A-Arm
-
Rear Suspension:
-
Dual Shock Swing arm
-
Cooling:
-
Air cooled
-
Volumetric Compression Ratio:
-
9.2:1
-
Fuel System:
-
Carburetor / Electronic Fuel Injection
-
Ignition type:
-
C.D.I / E.C.U
-
Start type:
-
Electric

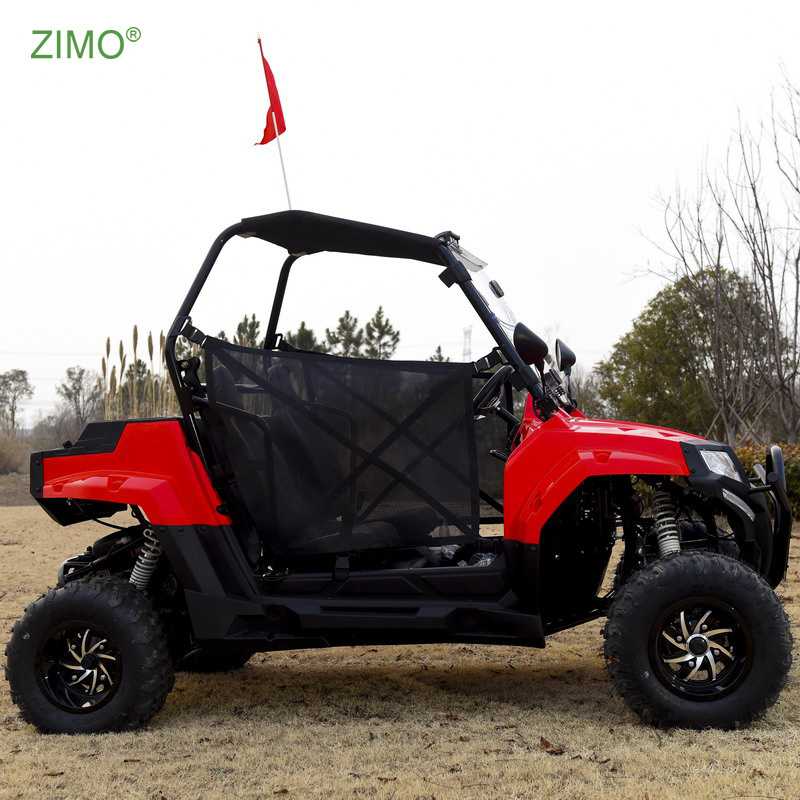

UTV200S 4X2 4 Seat 200cc UTV
ZIMO UTV is the global patented products, both appearance and structural inverntion patent. Unique stylish vehicle design, special safe structural design make driving experience more exciting and safer. With reverse as standard, engines technology is mature and reliable, parts are readily available everywhere. Equipped with more spacious cockpit, play drift freely, throw slide, never roll over. Could drive through river, crossing with water 20cm deep in it and run it over.
|
Vehicle Specification
|
|
|
|
Overall Vehicle Size (L x W x H)
|
2450x1220x1530mm
|
|
|
Ground Clearance (mm)
|
152mm
|
|
|
Wheelbase (mm)
|
1860mm
|
|
|
Weight with full equipments
|
283kg
|
|
|
Front/Rear Brakes
|
Front Dual Hydraulic Disk
Rear Single Axle Hydraulic Disk |
|
|
Parking Brake
|
Hand-Actuated
|
|
|
Front Tires
|
AT21x7-10
|
|
|
Rear Tires
|
AT22x10-10
|
|
|
Front Suspension
|
Dual A-Arm
|
|
|
Rear Suspension
|
Dual Shock Swing arm
|
|
|
Cargo Box Dimensions (L x W x H)
|
554×1220×165mm
|
|
|
Box Capacity (kg)
|
30kg
|
|
|
Fuel Capacity (L)
|
9.5L
|
|
|
Engine specification
|
|
|
|
Cooling
|
Air cooled
|
|
|
Engine Capacity (cc)
|
168.9cc
|
|
|
Volumetric Compression Ratio
|
9.2:1
|
|
|
Drive System Type
|
2WD
|
|
|
Engine Type
|
Single Cylinder 4-Stroke
|
|
|
Fuel System
|
Carburetor / Electronic Fuel Injection
|
|
|
Ignition type
|
C.D.I / E.C.U
|
|
|
Start type
|
Electric
|
|
|
Horsepower
|
11HP
|
|
|
Transmission/Final Drive
|
CVT F/N/R; Chain Drive
|
|
|
Maximum power (Kw /r/min)
|
8.3KW/8000RPM
|
|
|
Maximum Torque (Nm /r/min)
|
11N·m/6000RPM
|
|
|
Top Speed (km/h)
|
40 / 50km/h
|
|
