Quick Details
-
Place of Origin:
-
Guangxi, China
-
Core material:
-
Rock Wool Board
-
Thickness:
-
50/75/100/150/200mm
-
Steel Thickness:
-
0.2-0.6mm
-
Surface material:
-
Aluminum Zinc Plated Steel Plate
-
application scenarios:
-
walls of building
-
design style:
-
modern
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Others
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangxi, China
-
Core material:
-
Rock Wool Board
-
Thickness:
-
50/75/100/150/200mm
-
Steel Thickness:
-
0.2-0.6mm
-
Surface material:
-
Aluminum Zinc Plated Steel Plate
-
application scenarios:
-
walls of building
-
design style:
-
modern
|

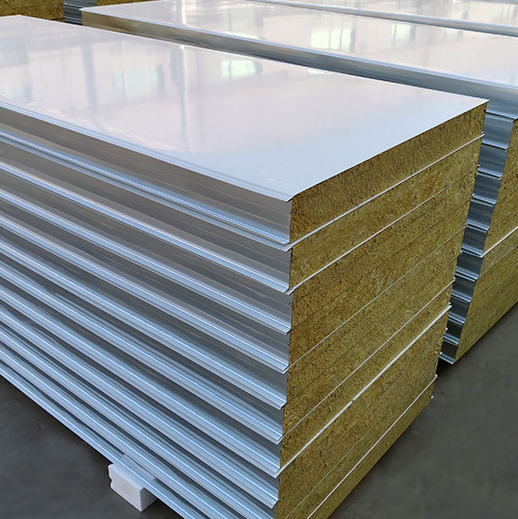

Product Name
|
Rock wool sandwich panel (for wall or roof use)
|
|
Surface Material
|
Aluminium zinc plated colour steel (PPGL)
|
|
Core material
|
rockwool material
|
|
density
|
60-120KG/m3
|
|
Steel furface thickness
|
0.2-0.6mm
|
|
Width
|
standard width 950mm, 1150mm
|
|
Length
|
Customized, maximum 11980mm
|
|
Thickness
|
50/75/100/150/200mm
|
Sound damping value
Note: These data bases refer to steel thickness of 0.4mm
the rock wool density is 100kg/m³
|
Core Material Thickness
（mm) |
Sound Reduction Index
(dB) |
Spectrum Adaption Factors
|
|
|
|
|
|
C ( dB )
|
Ctr ( dB )
|
|
|
50
|
30
|
-1
|
-4
|
|
|
75
|
31.5
|
-2
|
-4
|
|
|
100
|
34
|
-2
|
-4
|
|
|
150
|
35
|
-3
|
-5
|
|
Thermal Transmittance Coeffcient ( U value )
|
Panel Thickness
|
U（W/M²K)
|
|
50
|
0.78
|
|
75
|
0.58
|
|
0.41
|
100
|
|
150
|
0.28
|
20GP loading 400-600 square meters
40HQ loading 800-1400 square meters
CO (Certificate of Origin)
We provide certificate of origin to our customers to help them reduce the cost of destination country， please contact me for the
details
We can assist customers in customs import affairs
We provide certificate of origin to our customers to help them reduce the cost of destination country， please contact me for the
details
We can assist customers in customs import affairs
