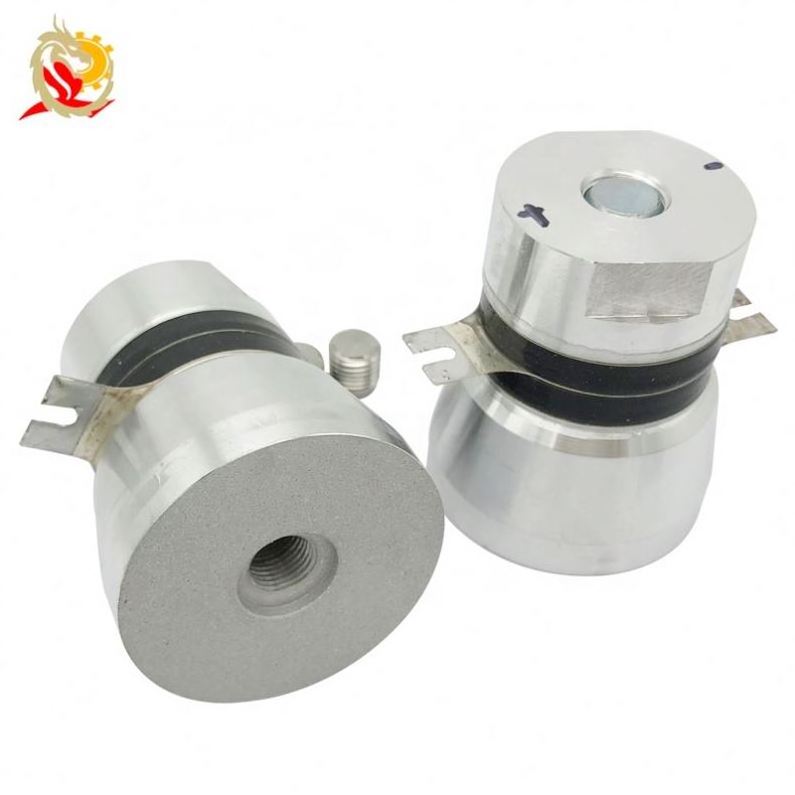

28Khz 60W Piezo Transducer Submersible Underwater Ultrasonic Transducer for Plating Components Cleaning

Ultrasonic transducer uses the piezoelectric effect to realize transduction between electricity and kinetic energy. It is made of radiation head, electrode, cap, prestressed bolt, piezoelectric chip and insulating tube. ultrasonic welding transducer is widely used in Ultrasonic welding,

Ultrasonic polishing. Ultrasonic Drilling. Ultrasonic beauty transducer is widely used in cosmetic industrial. Cleaning transducer are used in the automotive and aerospace industry, mechanical industry, plating industry etc

The mechanism of ultrasonic cleaning is to make use of the physical effects such as cavitation, radiation pressure and sound flow in the cleaning liquid. It can exfoliate the machinery produced by the dirt on the cleaning parts, and can also promote the chemical reaction between the cleaning liquid and the dirt, so as to achieve the purpose of cleaning the object. The frequency of the ultrasonic cleaning machine can be selected by 10~500 kHz according to the size and purpose of the cleaning material, generally more than 20~50 kHz. With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleaning has become more and more widely used in various industries, agriculture, household equipment, electronics, automobile, rubber, printing, aircraft, food, hospital and medical research.

1. Good heat resistance
2.Large range of working temperature
3.Low resonance impedance and heat productivity
4.Good construction
5.Fastened by bolt
6. Easy for assembling
7.Ultrasonic transducer for cleaning ,beauty and welding.
High frequency from 60-200KHZ,low frequency from 17-23KHZ,multi-frequcncy from 28-200KHZ

This specification is called "ultrasonic transducer", commonly known as "ultrasonic vibrator" or "ultrasonic oscillator". For ultrasonic cleaning applications, it is called "ultrasonic cleaning transducer".

The ultrasonic cleaning transducer generally adopts a horn type composite array structure (which belongs to the Langewen vibrator structure), and is composed of a front and a rear metal cover plate, a piezoelectric ceramic wafer, a prestressed screw, an electrode sheet, and an insulating sleeve. Applying appropriate pre-stress, the transducer has good electromechanical conversion efficiency under high power and high amplitude conditions.

Ultrasonic cleaning is the ultrasonic vibration generated by the transducer. The high-pressure cavitation generated by the cavitation effect in the water impacts the object to be cleaned and achieves a good cleaning effect.

Ultrasonic cleaning transducers are continuous-working medium-power transducers that are typically calculated from the average of continuous operation and their power levels.

We can offer customize product as your design

Passed the ISO9001:2008 quality system

We can reply you in 24 hours.

Packing Details  : Packing in standard package

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample but not free.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
