Quick Details
-
Power:
-
7500W
-
Dimension(L*W*H):
-
4750*1550*2400mm
-
Weight (KG):
-
2500 kg
-
Product name:
-

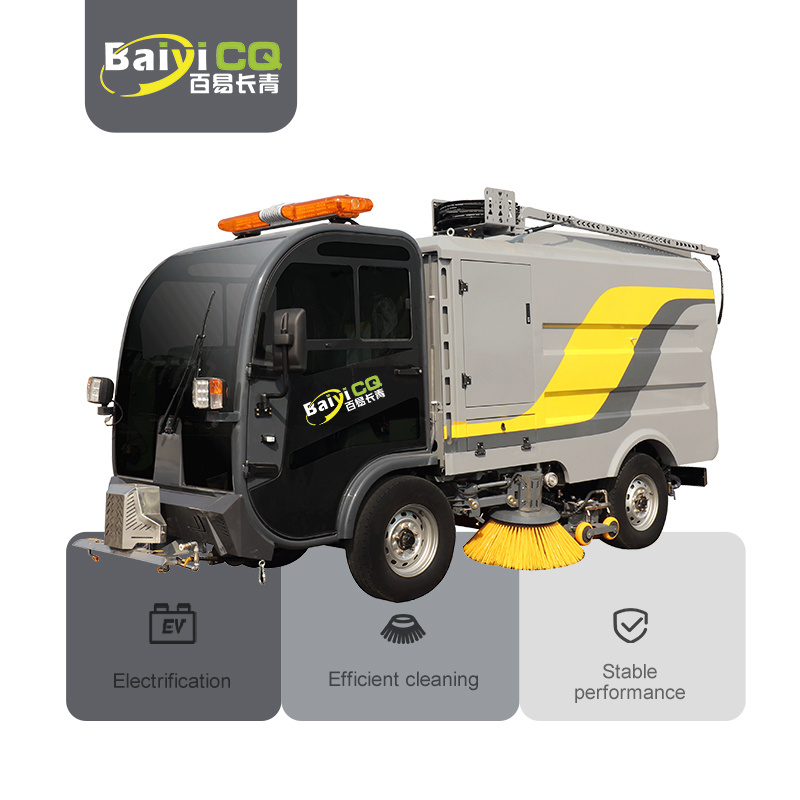

Electric sweeper seriesB-S50 street sweeper machine
-
Wheelbase:
-
2510mm
-
Top speed:
-
40Km/h
-
Front/rear wheelbase:
-
1350/1350mm
-
Cleaning speed:
-
2-10km/h
-
Working speed:
-
10Km/h
-
Maximum cleaning capacity:
-
25000| ㎡/h
-
Load capacity:
-
≤2500KG
Quick Details
-
Applicable Industries:
-
park, Sanitation, property, cleaning, city street, rural roadway, factory, school, community
-
Place of Origin:
-
Jinan, China
-
Brand Name:
-
BAIYI
-
Power:
-
7500W
-
Dimension(L*W*H):
-
4750*1550*2400mm
-
Weight (KG):
-
2500 kg
-
Product name:
-
Electric sweeper seriesB-S50 street sweeper machine
-
Wheelbase:
-
2510mm
-
Top speed:
-
40Km/h
-
Front/rear wheelbase:
-
1350/1350mm
-
Cleaning speed:
-
2-10km/h
-
Working speed:
-
10Km/h
-
Maximum cleaning capacity:
-
25000| ㎡/h
-
Load capacity:
-
≤2500KG
|
Vehicle size |
4750*1550*2400mm |
|
Wheelbase |
2510mm |
|
Front/rear wheelbase |
1350/1350mm |
|
Top speed |
40km/h |
|
Minimum turning radius (turn in place) |
5m |
|
Minimum ground clearance |
≥145mm |
|
Approach angle/departure angle |
21°— 25° |
|
Gradeability |
25% with full load, 30 without load |
|
Load capacity |
≤2500kg |
|
Cabinet length |
3300mm |
|
Cabinet width |
1500mm |
|
Cabinet height |
1580mm |
|
Curb weight |
2500 kg |
|
Maximum climbing ability |
30% |
|
Drive motor model |
72V 7.5kW |
|
Working speed |
2-8 km/h |
|
Sweeping width |
2.5m |
|
Working hours |
8-10h |
|
Cleaning speed |
2-10 km/h |
|
Rated cleaning water flow |
8L/min |
|
Maximum cleaning capacity |
25000 |
|
Maximum suction particle size |
100mm |
|
Discharge angle |
≥45° |
|
One working cycle time of unloading operation |
s ≤35 |
|
Trash bin volume |
2.7 -4.3m³ |
|
Fan motor power |
5.5kW |
|
High pressure water pump contro |
5.5kW motor drive |
|
High pressure water pump pressure |
Mpa 25 |
