Quick Details
-
Model Number:
-
EWR600
-
Weight:
-
600 g/m2 (+/-5%)
-
Width:
-
150--3000mm
-
Standing Temperature:
-
260 Degree Celsius
-
Product No.:
-
EWR600
-
Unit weight:
-
600g/m2 (+/-5%)
-
Product type:
-
ECR glass woven roving tape
-
Product structure:
-
Direct roving in 90 degree direction only
-
Glass type:
-
E-glass or ECR glass, both available
-
Packing:
-
Roll packing, per carton, per pallet
-
MOQ:
-
1000kgs
-
Usage process:
-
Hand lay-up, Filament winding, Vaccum infusion...etc;
-
H.S Code:
-
7019610090
Quick Details
-
Application:
-
Filter Cloth
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZHONGJIE
-
Model Number:
-
EWR600
-
Weight:
-
600 g/m2 (+/-5%)
-
Width:
-
150--3000mm
-
Standing Temperature:
-
260 Degree Celsius
-
Product No.:
-
EWR600
-
Unit weight:
-
600g/m2 (+/-5%)
-
Product type:
-
ECR glass woven roving tape
-
Product structure:
-
Direct roving in 90 degree direction only
-
Glass type:
-
E-glass or ECR glass, both available
-
Packing:
-
Roll packing, per carton, per pallet
-
MOQ:
-
1000kgs
-
Usage process:
-
Hand lay-up, Filament winding, Vaccum infusion...etc;
-
H.S Code:
-
7019610090

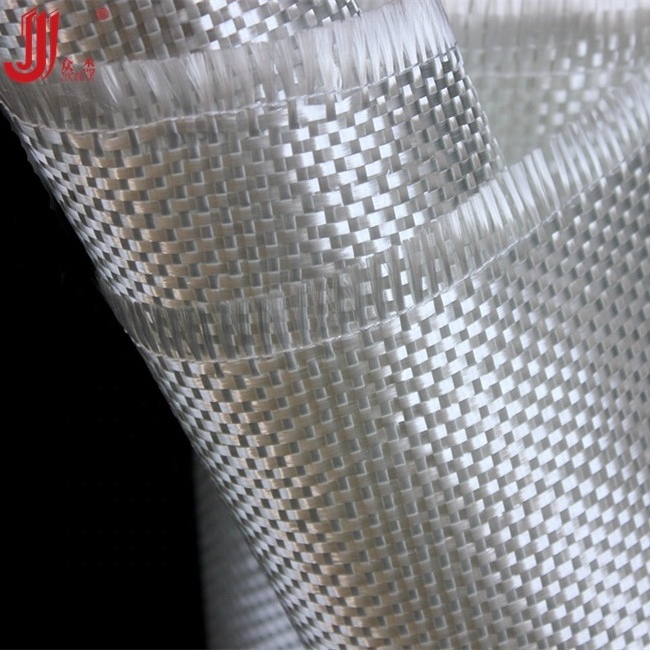

ECR glass woven roving tape
ECR glass woven roving is made of direct roving rovings in plain pattern. The input rovings are designed to give control wet-out and excellent laminate preperties. Structure in 0/90 degree, no stitch, textiled.
It is compatiable with polyester, Vinyl, Epoxy resins as normals.
It is suitable for hand lay up, SMC, Filament winding, Vaccum infusion working process
It is widely used in boats building, Storange tanks, Bathroom equipments, FRP covers, Auto/Train parts etc;
|
Product Name:
|
ECR glass woven roving tape
|
|
|
||
|
Produce Code:
|
EWR600
|
|
|
||
|
Unit Weight:
|
600 g/m
2
|
|
|
||
|
Structure Design:
|
Direct roving in 0 and 90 degree direction, then textiled
|
|
|
||
|
Density Range:
|
From 80g/m
2
to 1000g/m
2
|
|
|
||
|
Gauge refer:
|
1200tex*1200tex in 2.6*2.4ends/cm
|
|
|
||
|
Roll Width:
|
1000mm as normal, other sizes from 150-3200mm available for producing
|
|
|
||
|
Size/Coupling agent:
|
Silane
|
|
|
||
|
Moisture Content:
|
≤0.20%
|
|
|
||
|
Wet Speed:
|
≤60s
|
|
|
||
|
Working Process:
|
Suitable for Hand lay up, Filament winding, Continuous plating etc;
|
|
|
||
|
Application Fields:
|
FRP sheet, Boats building, Storange tanks, Waterslides, Manual pipes etc;
|
|
|
||
|
Exporting H.S Code:
|
7019610090
|
|
|
||
Established in 2009, factory occupied more than 35,000 square meters. More than 60 sets working machines for various products.
Yearly turn over about 18,000tons for fiberglass fabrics/mats, with sales value more than 150millions RMB in 2018.
Professional and experienced both for materials and FRP products. Your best one-stop composites solution provider.
