Quick Details
-
Place of Origin:
-
Hunan, China
-
Pressure:
-
Standard
-
Structure:
-
Standard
-
Weight:
-
1.5
-
Power:
-
25W
-
Dimension(L*W*H):
-
6*6*14
-
Maximum pressure:
-
31 Mpa
-
Maximum Flow Rate:
-
standrad
-
After Warranty Service:
-
Technical Support/on line support
-
Material:
-
Aluminum/Stainless steel
-
MOQ:
-
1 PCS
-
Voltage:
-
Standard
Quick Details
-
Warranty:
-
1 years
-
Valve type:
-
Directional Control Valve
-
Brand Name:
-
OEM/ODM/Kai enli
-
Place of Origin:
-
Hunan, China
-
Pressure:
-
Standard
-
Structure:
-
Standard
-
Weight:
-
1.5
-
Power:
-
25W
-
Dimension(L*W*H):
-
6*6*14
-
Maximum pressure:
-
31 Mpa
-
Maximum Flow Rate:
-
standrad
-
After Warranty Service:
-
Technical Support/on line support
-
Material:
-
Aluminum/Stainless steel
-
MOQ:
-
1 PCS
-
Voltage:
-
Standard
PRODUCT SPECIFICATIONS
Product name

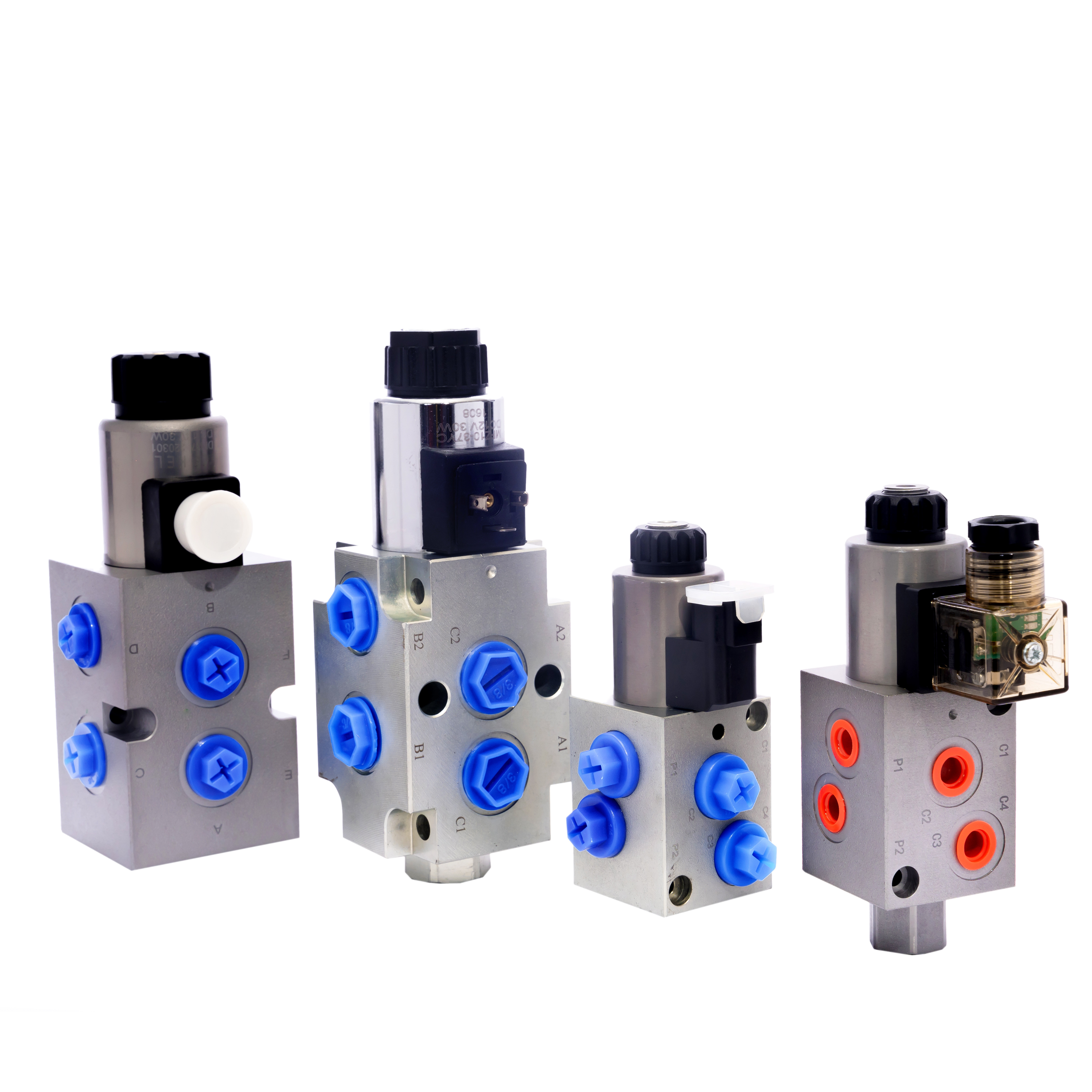

Hydraulic Cartridge Valves,6-way 2-position valve manifolds,,Hotsales hydraulic press machine components
Advantage and Features
1.
Body Material ： High quality ductile iron bodies QT500-7
produced by hard treatment which are durable .
2.enviroment surface treatment of Zinc Coating
will have the good surface protection ability.
3.
Coil voltage and terminal are optional.
4.
valve spool adopts nitriding treatment, high surface hardness and good wear resistance.
technical data
0
|
Item
|
Data
|
|
|
|
Cavity /Connector
|
DTO4-2P
|
|
|
|
Rated Pressure
|
250Bar
|
|
|
|
Rated Flow
|
25L/Min
|
|
|
|
Port type
|
G1/4 DIN3852 (Standard)
|
JIS B G1/4 (optional)
|
|
|
Working Temperature
|
(-20°C to +90°C)
|
|
|
|
water-proof class
|
IP69K
|
|
|
|
Power
|
25W
|
|
|
|
Voltage of Solenoid Valves
|
DC 13V +- 15%
|
DC 27V +- 15% ( optional)
|
|
|
Nominal Load for Coil
|
Continuous from 85% to 115% of nominal voltage
|
|
|
|
Fluid
|
Mineral-based fluids with viscosities of 7.4 to 420 cSt.(矿物油粘度) NAS< grade 9
|
|
|
|
Body Material
|
material QT500-7, Steel & Ductile Iron rated to 350 Bar
|
|
|
Working Principle
Dimension
0
How to Order
Item NO
KL710 210 6A R933 DG (optional) ( Please see the below for more order details, special design are also available, Welcome to contact us !)
