Quick Details
-
Voltage:
-
380V/415V/Customized
-
Dimension(L*W*H):
-
2680*1660*1637 mm
-
Weight:
-
2350kg
-
Working Pressure:
-
15 bar
-
Product name:
-
Portable Compressor
-
Keywords:
-
Portable Diesel Screw Air Compressor
-
Application:
-
Disel screw compressor for mining custruction
-
Air end:
-
Single Stage Compression
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
ABT
-
Model Number:
-
LUY150-15
-
Voltage:
-
380V/415V/Customized
-
Dimension(L*W*H):
-
2680*1660*1637 mm
-
Weight:
-
2350kg
-
Working Pressure:
-
15 bar
-
Product name:
-
Portable Compressor
-
Keywords:
-
Portable Diesel Screw Air Compressor
-
Application:
-
Disel screw compressor for mining custruction
-
Air end:
-
Single Stage Compression
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
Product Description

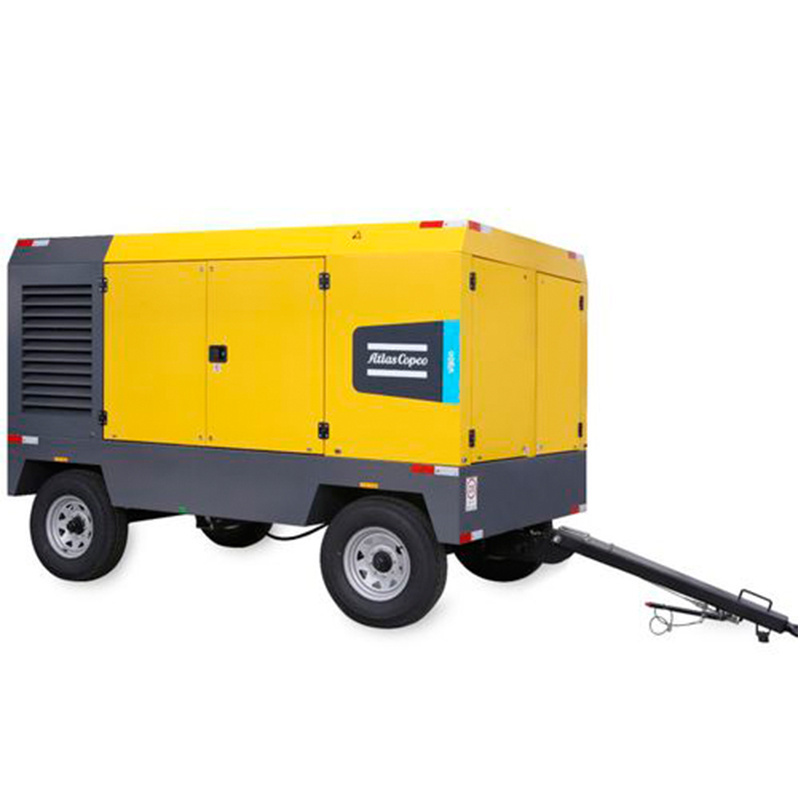

Portable Compressor
1.Strong reliability:
firm design ensures long - term reliability and durability of the equipment.
2.
Easy maintenance:
open door design, convenient for daily maintenance.
3.
Low noise:
Mobile locomotive hood and hood design have a strong noise reduction and attraction effect.
Details Images
Ground Engineering Drilling
Pneumatic rock drills,block cutters,dewatering pumps and hand-held pneumatic breakers. They are suited for stabilization projects on roads and building sites,as well as basement and foundation excavation for apartment blocks and other buildings.
Blast Hole Drilling
Common applications include aggregate production for costruction stabilization,cement production in limestone quarries and open pit mining.
Specification
|
Model: LUY150-15
|
|
|
|
|
|
|||||
|
Working pressure (bar)
|
Flow
(m3/min)
|
Noise sound level
(at 7m distance, dBA)
|
Fuel tank capaticy(L)
|
Compressor oil capaticy (L)
|
Outlet valves
(qty; size)
|
|||||
|
15
|
15
|
83±3
|
250
|
32
|
1*G3/4 1*G2
|
|||||
|
Engine
|
|
|
|
|
|
|||||
|
Engine maker
|
Engine model
|
Engine power(kW)
|
Norminal engine speed(rpm)
|
Unloading engine speed(rpm)
|
Engine inspiration
|
|||||
|
Yuchai
|
YC6A205-H300
|
151
|
2050
|
1200
|
torbue charger
|
|||||
|
Dimension&Weight
|
|
|
|
|
|
|||||
|
Box mounted
|
|
|
|
|
|
|||||
|
Length(mm)
|
Width(mm)
|
Height(mm)
|
Weight(mm)
|
|
|
|||||
|
2680
|
1660
|
1637
|
2350
|
|
|
|||||
|
With undercarriage, adjustable two bar horizontally
|
|
|
|
|
|
|||||
|
Length(mm)
|
Width(mm)
|
Height(mm)
|
Weight(kg)
|
|
|
|||||
|
4322
|
1950
|
1980
|
2550
|
|
|
|||||
