Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
HB-3000-f
-
Output Frequency:
-
50/60HZ
-
Size:
-
512*320*136MM
-
Weight:
-
16.8KG
-
Display:
-
LCD Display
-
Warranty:
-
1 Year
-
Feature:
-
Energy Saving solar inverter and Hybrid Inverter
-
Application:
-
Solar Power System Home
-
Color:
-
Yellow, Red, White, Green.Grey
-
Protection:
-
Short Circuit Protection Overload
-
MPPT Efficiency:
-
98-100%
-
OEM:
-
Accept OEM and ODM
-
Charging Current:
-
28A
-
Certificate:
-
ISO9001, ISO14001
Quick Details
-
Output Current:
-
15A, 30 A
-
Network:
-
RS232
-
Customized support:
-
OEM/ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
HB-3000-f
-
Output Frequency:
-
50/60HZ
-
Size:
-
512*320*136MM
-
Weight:
-
16.8KG
-
Display:
-
LCD Display
-
Warranty:
-
1 Year
-
Feature:
-
Energy Saving solar inverter and Hybrid Inverter
-
Application:
-
Solar Power System Home
-
Color:
-
Yellow, Red, White, Green.Grey
-
Protection:
-
Short Circuit Protection Overload
-
MPPT Efficiency:
-
98-100%
-
OEM:
-
Accept OEM and ODM
-
Charging Current:
-
28A
-
Certificate:
-
ISO9001, ISO14001

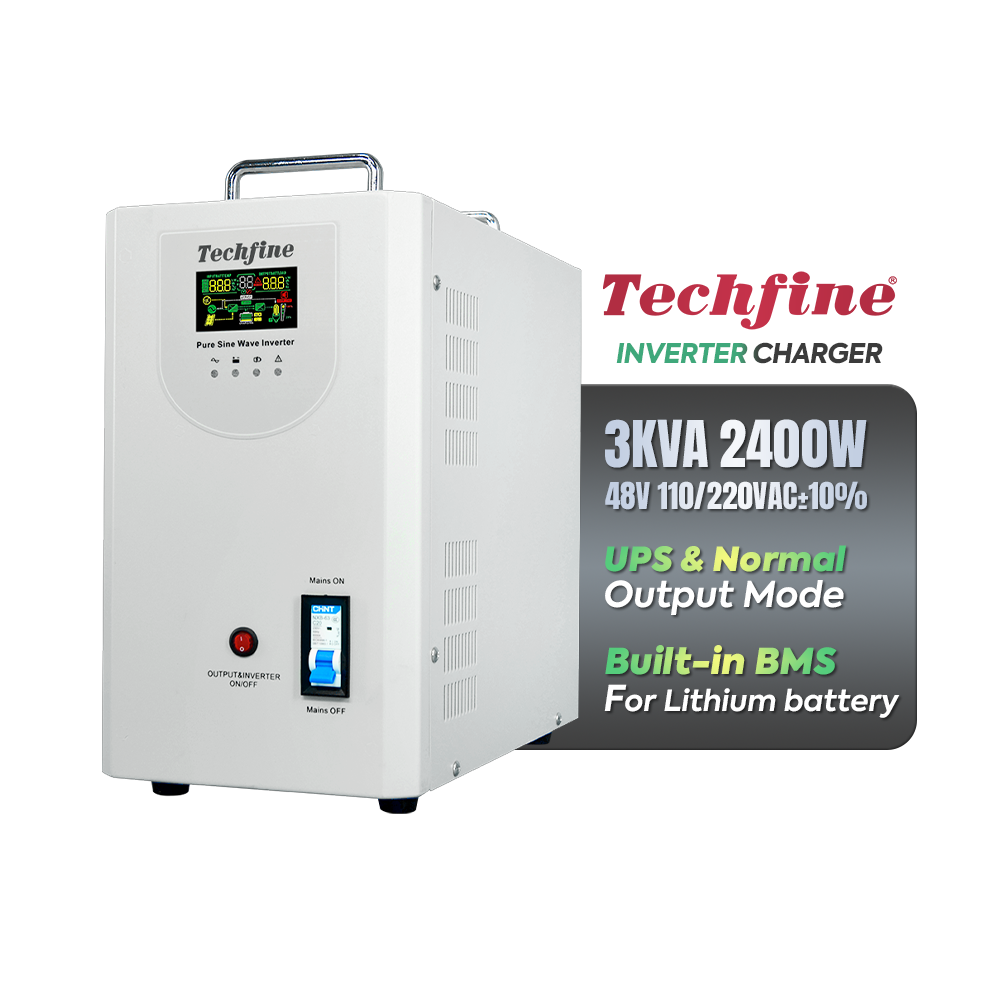

Source Factory
500va 800va 1000va 1500va 2000va 3000va 5000va
12/24/48VDC 110~ 275VAC 230VAC
Power Inverter Charger
Strictly comply with ISO quality management system
Products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
Product Overview
Feature
1.DC Start & Automatic Self-Diagnostic Function
2.High Efficiency Design
“Power Saving Mode” & to Conserve Energy
3.Auto restart when
Ac in
recovering.
4.Smart battery charger design for optimized
battery performance
5.Selectable charging
current based on
applications.
6.Auto Restart Voltage
lt can also be used as an emergency power source for devices that require continuous power supply,
a device for uninterrupted power
supply.
Such as installation of central heating (pumps, drivers, feeders, CO furnaces, etc.)
automatic gates, automation devices, power tools, circulation pumps for thermal power plants,
submersible water Pumps computers,
servers, computer sets, automatic gates compressors and any other AC motors that require pure sinusoidal voltage.
We offer customized services for different types of sockets
Product Parameter
|
Model
|
|
HB0812
|
HB1012
|
HB1512
|
HB2024
|
HB3024
|
HB3048
|
HB5048
|
|||||||
|
Rated Capacity
|
|
800VA
|
1000VA
|
1500VA
|
2000VA
|
3000VA
|
3000VA
|
5000VA
|
|||||||
|
Rated Power
|
|
640W
|
800W
|
1200W
|
1600W
|
2400W
|
2400W
|
4000W
|
|||||||
|
Nominal Voltage
|
|
220VAC(Standard）/110VAC（custom）
|
|
|
|
|
|
|
|||||||
|
Output Voltage(AC)
|
|
The output voltage under AC is the same as the input voltage
|
|
|
|
|
|
|
|||||||
|
Output Frequency (AC)
|
|
The output voltage frequency under AC is the same as the input frequency
|
|
|
|
|
|
|
|||||||
|
Input
|
Voltage range
|
220V：154-264VAC±3V（Normal mode) 185-264VAC±3V（UPS mode）
110V：77-132VAC±3V（Normal mode) 92-132VAC±3V（UPS mode）
|
|
|
|
|
|
|
|||||||
|
|
Frequency
|
50/60Hz±5%
|
|
|
|
|
|
|
|||||||
|
Output
|
Voltage
|
220VAC±10%(110VAC±10%)
|
|
|
|
|
|
|
|||||||
|
|
Frequency
|
50HZor60HZ±1%
|
|
|
|
|
|
|
|||||||
|
|
Wave Form
|
Pure sine wave
|
|
|
|
|
|
|
|||||||
|
Load Peak Ratio
|
|
（MAX)3:1
|
|
|
|
|
|
|
|||||||
|
Static Power（W）
|
|
9W
|
11W
|
12W
|
15W
|
16W
|
16W
|
23W
|
|||||||
|
Protection
|
|
overload/high temperature/output high voltage /output low voltage/
|
|
|
|
|
|
|
|||||||
|
|
|
battery low voltage shortcircuit/over-charge/over-discharge/reversed polarity(optional)
|
|
|
|
|
|
|
|||||||
|
LCD indicator status
|
|
AC input voltage, AC input frequency, PV voltage, PV current , Output Voltage, Output Frequency, Battery voltage, Load current
etc.
|
|
|
|
|
|
|
|||||||
|
Transfer Time
|
|
≤10ms
|
|
|
|
|
|
|
|||||||
|
Battery Type
|
|
External lead-acid battery,water battery,Lithium battery
|
|
|
|
|
|
|
|||||||
|
Battery Voltage
|
|
12VDC
|
12VDC
|
12VDC
|
24VDC
|
24VDC
|
48VDC
|
48VDC
|
|||||||
|
Battery Charge Voltage
|
|
13.75VDC
|
|
|
27DC
|
|
54DC
|
|
|||||||
|
MAX AC Charge Current
|
|
13A
|
18A
|
30A
|
20A
|
30A
|
15A
|
22A
|
|||||||
|
Battery Charging voltage range
|
|
150-280VAC
|
|
|
|
|
|
|
|||||||
|
Audible alarm
|
|
Low battery protection-continuous beeping
|
|
|
|
|
|
|
|||||||
|
|
|
Low battery protection-1 second beeping
|
|
|
|
|
|
|
|||||||
|
|
|
Overload-continuous beeping
|
|
|
|
|
|
|
|||||||
|
|
|
Overload less than 130%-1 second beeping and shutdown the output after 30 seconds; Overload more than 150%,shutdown the output
after 300ms
|
|
|
|
|
|
|
|||||||
|
|
|
Malfunction-continuous beeping
|
|
|
|
|
|
|
|||||||
|
Environmental
|
Operating Temperature
|
0~40℃
|
|
|
|
|
|
|
|||||||
|
|
Relative Temperature
|
—10℃~90 no condensation
|
|
|
|
|
|
|
|||||||
|
|
Storage Temperature
|
-15-45℃
|
|
|
|
|
|
|
|||||||
|
Packing
|
Machine Size(mm)
|
300*144*213
|
|
|
385*190*382
|
|
|
|
|||||||
