Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Laser
-
Voltage:
-
AC220V/50Hz
-
Dimension(L*W*H):
-
3200*2020*1250mm
-
Power (kW):
-
3
-
Weight (KG):
-
1680
-
Power stroke of X,Y,Z axis:
-
1300*2500*80mm
-
Power of main axle:
-
3KW
-
Table material:
-
Aluminium Alloy woodworking cnc router
-
Running location precision of X,Y,Z axis:
-
±0.03mm
-
Repeating location precision:
-
±0.01mm
-
Power stroke of Z axis:
-
120mm
-
Working style:
-
Stepping motor
-
Spindle speed:
-
6000-24000rpm/min
-
Working voltage:
-
AC220V/50HZ
-
XY Running sensitivity:
-
0.02mm
Quick Details
-
Working Table Size(mm):
-
1300*2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Laser
-
Voltage:
-
AC220V/50Hz
-
Dimension(L*W*H):
-
3200*2020*1250mm
-
Power (kW):
-
3
-
Weight (KG):
-
1680
-
Power stroke of X,Y,Z axis:
-
1300*2500*80mm
-
Power of main axle:
-
3KW
-
Table material:
-
Aluminium Alloy woodworking cnc router
-
Running location precision of X,Y,Z axis:
-
±0.03mm
-
Repeating location precision:
-
±0.01mm
-
Power stroke of Z axis:
-
120mm
-
Working style:
-
Stepping motor
-
Spindle speed:
-
6000-24000rpm/min
-
Working voltage:
-
AC220V/50HZ
-
XY Running sensitivity:
-
0.02mm
Perfect Laser 1325 Stone Marble Granite Tombstone CNC Router Engraving Carving Machine For ABS PVC MDF Wood Plastic Sheet
( Model: PE-1325C)
Contact:Lydia Skype:perfectlaser019 Email:Lydia@perfectlaser dot net
Product Description
Our
cnc router for stone
is designed with pure aluminum, which ensures the parallelism, verticality and concentricity and greatly increases the precision and speed of the engine bed.
cnc router for stone
is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the
cnc router for stone
is calculated and customized according to optimization rules in market Statistics.

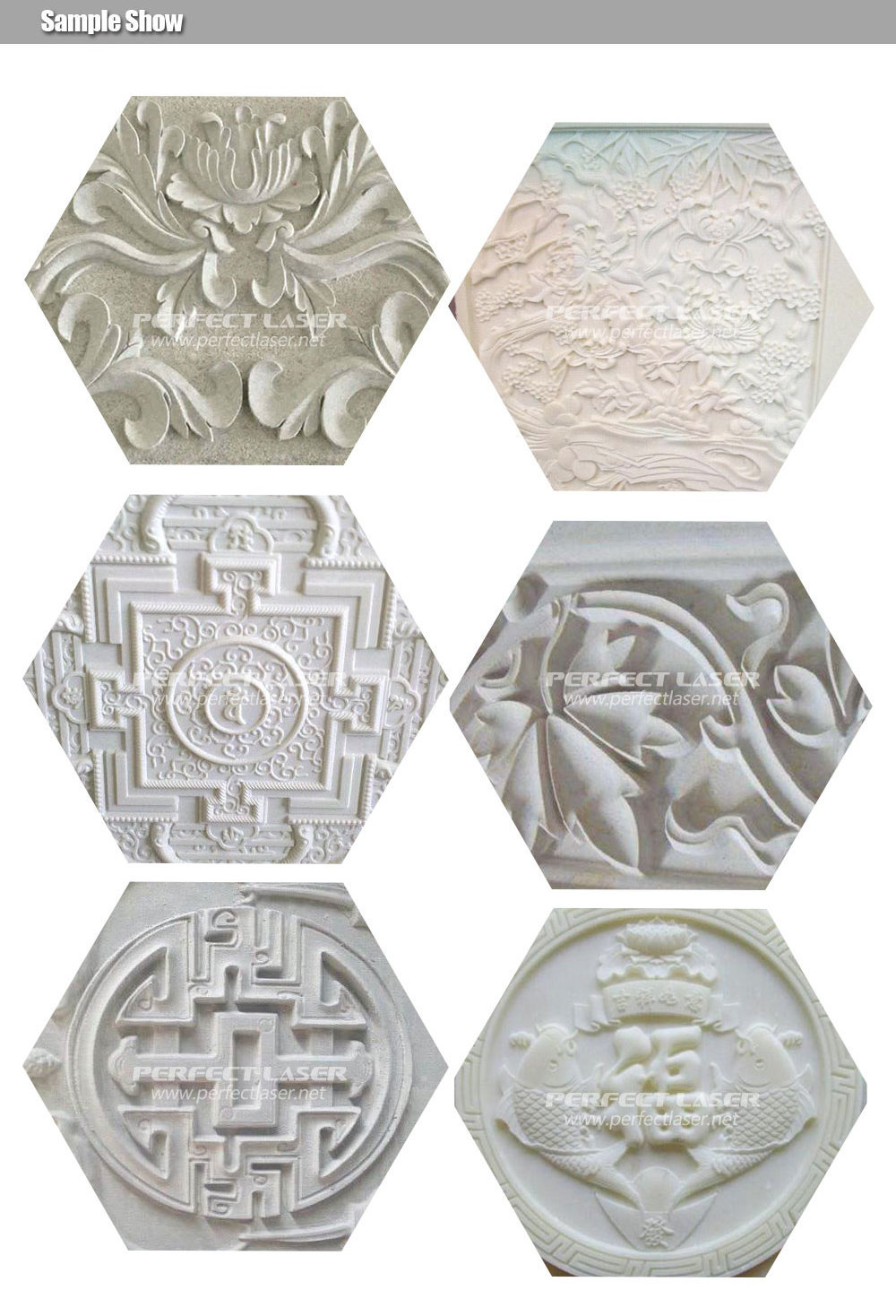

Samples & Application
Suitable industries: billboards, model industry,decoration industry, toys and gifts,furniture manufacturing, etc.
Available materials: stone, marble, granite, tombstone, acrylic, double color boards, plastic, wood, ABS, PVC, MDF, PCB,copper,aluminum and various non-ferrous metals.It is also called stone engraving machine,marble engraving machine,granite engraving machine,tombstone engraving machine,engraving stone,3D engraving machine,3D CNC router engraving machine.
Available materials: stone, marble, granite, tombstone, acrylic, double color boards, plastic, wood, ABS, PVC, MDF, PCB,copper,aluminum and various non-ferrous metals.It is also called stone engraving machine,marble engraving machine,granite engraving machine,tombstone engraving machine,engraving stone,3D engraving machine,3D CNC router engraving machine.
Product Features
1.Adopt overall body cast iron beds, and secondary tempering precision machining; widen and thicken beams and columns design,can carve 15mm natural marble with one knife.
2.The marble engraving machine device with automatic water system and tank design, to ensure that longer use of the tools.
3.Uses water-proof design, to ensure the transmission parts and circuit parts are durable and safe.
4.The spindle motor frequency spindle high power water-cooled, water-proof design.
5.To work long hours, which can realize power, breakpoints, and the next processing, convenient and save labor.
6.High speed machining: high kinetic energy, Y axis double motor drive, curve, straight line speed. Unique save way of multiple work-piece machining zero .
2.The marble engraving machine device with automatic water system and tank design, to ensure that longer use of the tools.
3.Uses water-proof design, to ensure the transmission parts and circuit parts are durable and safe.
4.The spindle motor frequency spindle high power water-cooled, water-proof design.
5.To work long hours, which can realize power, breakpoints, and the next processing, convenient and save labor.
6.High speed machining: high kinetic energy, Y axis double motor drive, curve, straight line speed. Unique save way of multiple work-piece machining zero .

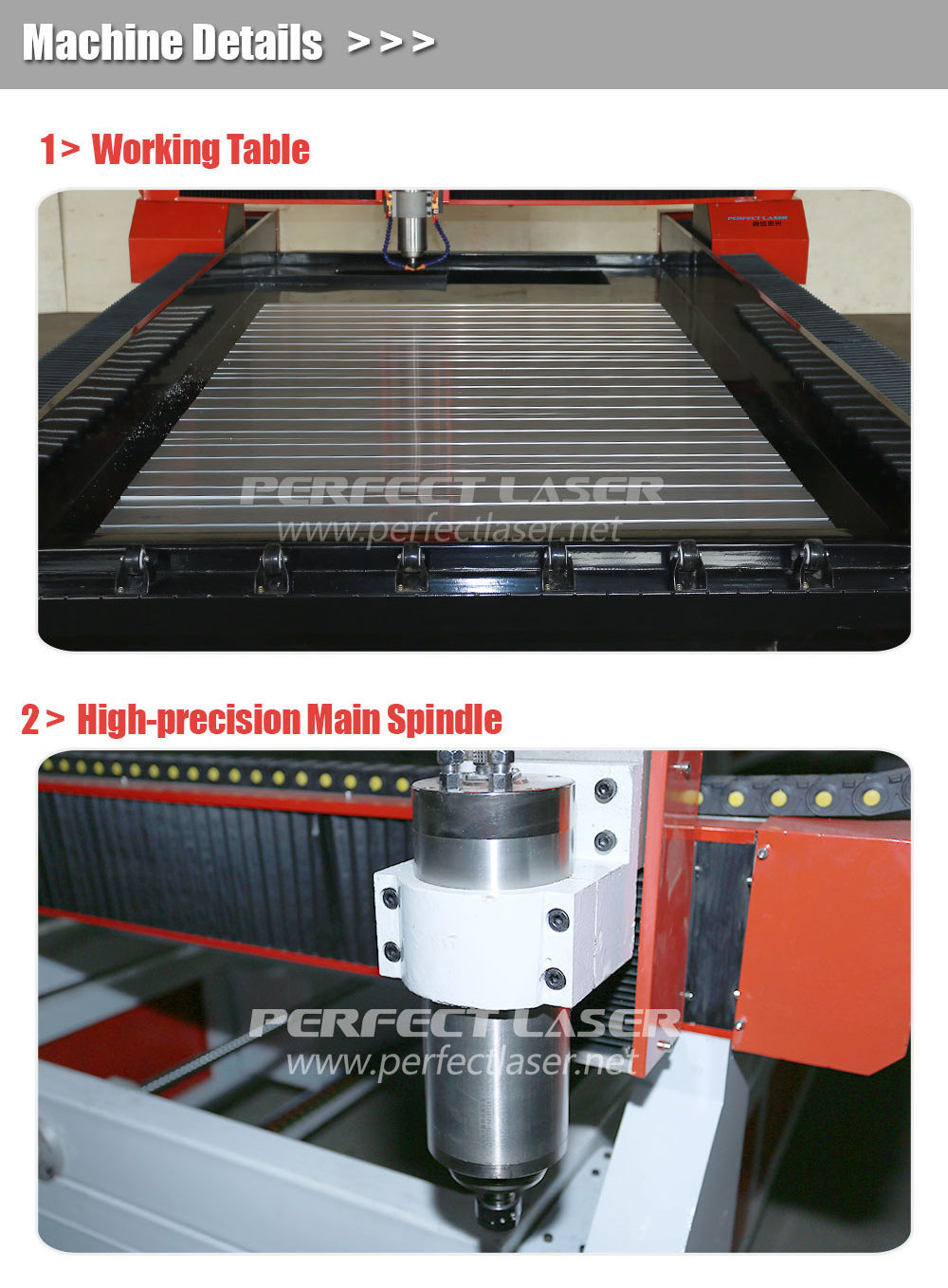

Machine Details
Specification
|
Model
|
PE-1325C
|
|
Working area
|
1300*2500*200mm
|
|
Machine Volume
|
3200*2020*1250mm
|
|
Main axle power rate
|
2.2/3/4.5/5.5KW(optional)
|
|
Main axle rotating speed
|
6000-24000 rpm/min
|
|
Max.Working speed
|
8000mm/min
|
|
Feeding height
|
200mm
|
|
Engraving tools
|
3.175/4/6/12.7mm
|
|
Re-positioning Accuracy
|
0.02mm
|
|
Supported File Format
|
DXF,PLT,G code,MMG,U00,NC,ENG
|
|
Power
|
AC220V(380V)/50HZ (optional:AC110V/60HZ )
|
|
Weight
|
1600 kgs
|
