Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HuaNuo
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8500mm*1500mm*1400mm
-
Weight:
-
8.0 kg
-
Name:
-
Metal Roofing Sheet Iron Sheet Roll Forming Making Machine
-
Usage:
-
Color Steel Construction
-
Application:
-
Roof Sheet Production
-
Control system:
-
Fully Automatic
-
Keywords:
-
Metal Roofing Sheet Iron Sheet Roll Forming Making Machine
-
Machine type:
-
Roll Forming Mahcine
-
Advantage:
-
Automatic Operation
-
Cutting System:
-
Automatic Hydyaulic Cutting
-
Feeding material:
-
Prepainted Galvanized
-
Speed:
-
12-18m/min
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HuaNuo
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8500mm*1500mm*1400mm
-
Weight:
-
8.0 kg
-
Name:
-
Metal Roofing Sheet Iron Sheet Roll Forming Making Machine
-
Usage:
-
Color Steel Construction
-
Application:
-
Roof Sheet Production
-
Control system:
-
Fully Automatic
-
Keywords:
-
Metal Roofing Sheet Iron Sheet Roll Forming Making Machine
-
Machine type:
-
Roll Forming Mahcine
-
Advantage:
-
Automatic Operation
-
Cutting System:
-
Automatic Hydyaulic Cutting
-
Feeding material:
-
Prepainted Galvanized
-
Speed:
-
12-18m/min

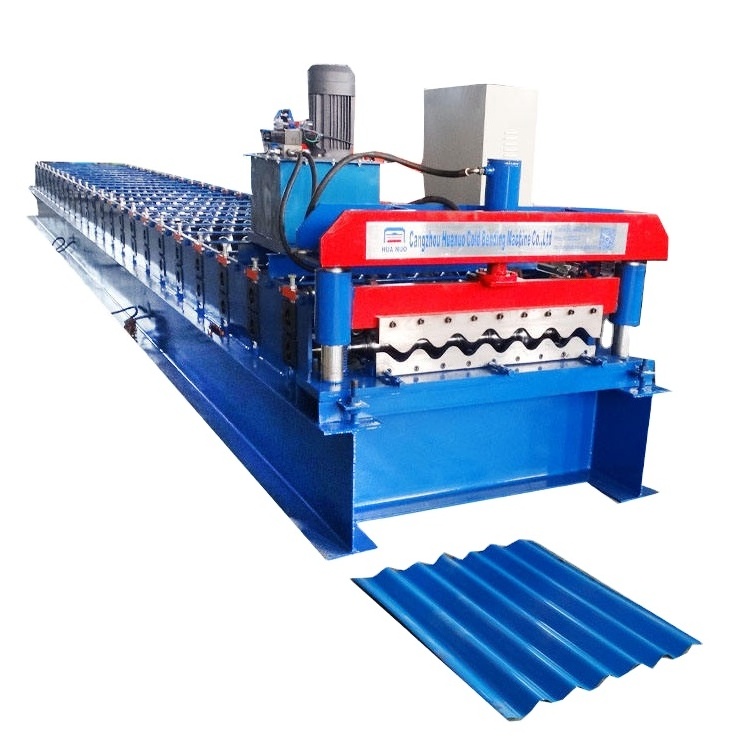

Metal Roofing Sheet Iron Sheet Roll Forming Making Machine, Cold Galvanizing Line
1. Flow Chart
Manual De coiler — Roll F orming M achine — Computer Control System — H ydraulic Cutting S ystem — Receive Table
2. Machine Specifications
|
1 |
Coil Type |
Pre-painted coil,Galvanized steel |
|
2 |
Width |
1200/1220 mm |
|
3 |
Thickness range |
0. 3 -0. 8 mm |
|
4 |
Yield stress(mm) |
Q235 |
|
5 |
Effective width |
as drawing |
|
1 |
Power Requirement
|
Voltage |
(380V 50HZ),or according client require |
|
Main Motor power |
5.5 kw |
||
|
Cutter power |
3.0 kw |
||
|
2 |
Forming speed |
12-18 m/min |
|
|
3 |
Forming stations |
16/16 rows |
|
|
4 |
Main Frame |
350H beam |
|
|
5 |
Sidewall thickness |
16mm |
|
|
6 |
Forming shaft diameter |
70mm 0.01mm-0.03mm(Grinding) |
|
|
7 |
Chains |
1inch chain drive |
|
|
8 |
Type of cutting |
Roll formed and length-set cutting |
|
|
9 |
Control system |
PLC control |
|
|
10 |
Install dimension(depend on the final design) |
8.5 m ×1.5 m × 1.4 m |
|
|
11 |
Total weight (Approx) |
8.0 T |
|
|
12 |
Roller |
High grade 45# steel, hard chrome plated |
|
|
13 |
Feeding system |
Guide type |
|
|
14 |
Cutting blade |
Cr12Mov |
|
|
15 |
Frequency changer |
Delta |
|
