Quick Details
-
Brand Name:
-
Edge
-
Model Number:
-
SW10P
-
Signal To Noise Ratio::
-
>90Db
-
Frequency Response::
-
20Hz - 150Hz
-
High Level Input Sensitivity::
-
10V
-
Low Level Input Sensitivity::
-
0.4V
-
Low Pass Filter::
-
30Hz- 150Hz
-
Bass Boost::
-
0 to +9dB@ 50Hz
-
Dimensions:
-
(4.7"+8.2") x 14.9" x 20.4".
-
Color:
-
BLACK
Quick Details
-
Car Fitment:
-
ABG
-
Frequency Range (Hz):
-
20 - 150 Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Edge
-
Model Number:
-
SW10P
-
Signal To Noise Ratio::
-
>90Db
-
Frequency Response::
-
20Hz - 150Hz
-
High Level Input Sensitivity::
-
10V
-
Low Level Input Sensitivity::
-
0.4V
-
Low Pass Filter::
-
30Hz- 150Hz
-
Bass Boost::
-
0 to +9dB@ 50Hz
-
Dimensions:
-
(4.7"+8.2") x 14.9" x 20.4".
-
Color:
-
BLACK
Product Description
Edge

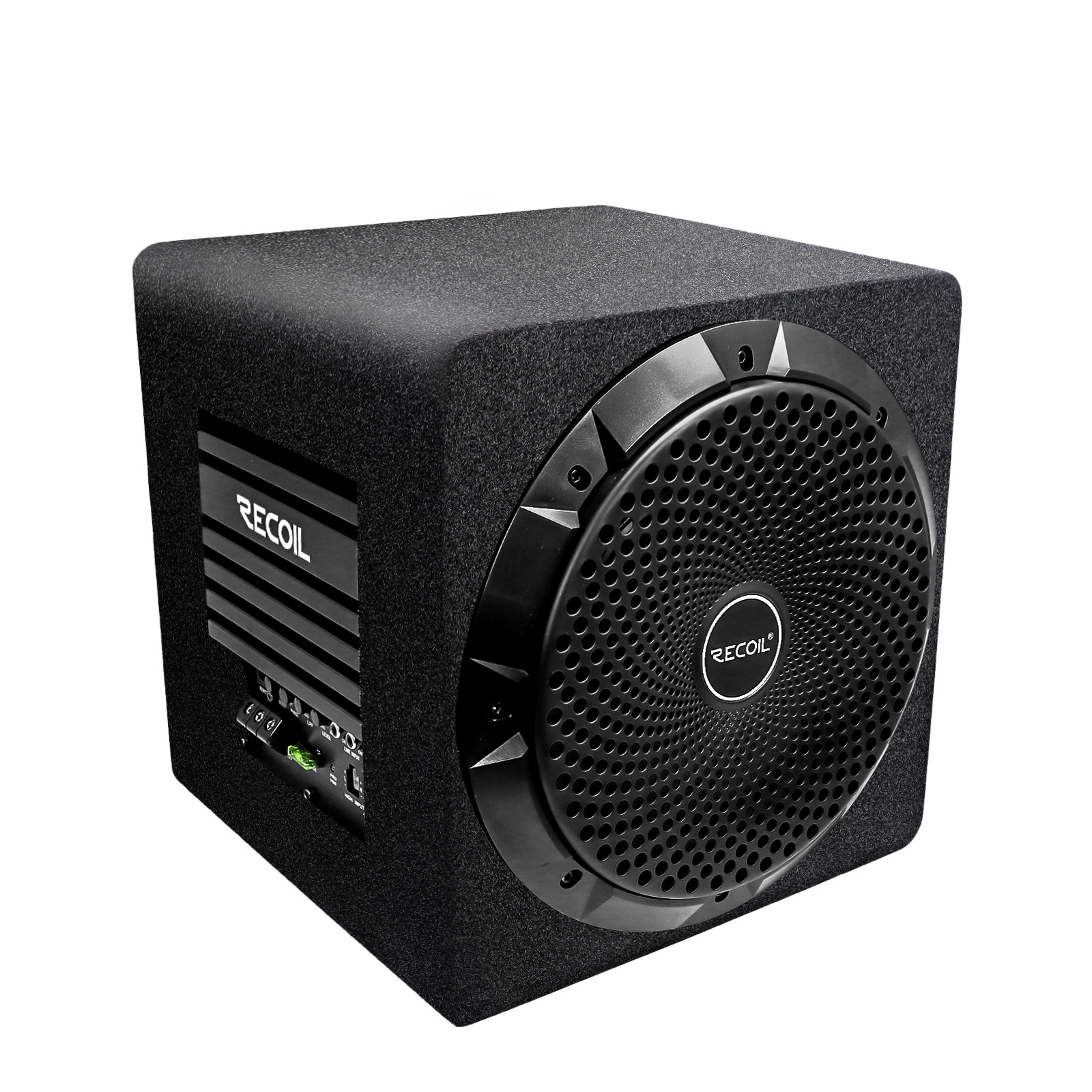

SW10P Car Audio 10 Inch Active Subwoofer with Passive Radiator, Built-in 600W Amplifier, Include Remote Subwoofer Control and 8AWG Complete Wiring Kits
SW10P is a universal all-in-one self-contained 10 inch subwoofer enclosure with built-in 600W amplifier and 10 inch passive radiator. Built-in Amplifier: Peak Power 600 Watts / RMS 300 Watts with PWM MOSFET power supply.
Passive Radiator: A 10” drive unit that has its motor structure (magnet) removed, becomes a passive diaphragm. As a result, there is no chuffing that you would generally get with a ported box, thus enriching and improving bass performance significantly. 8 Gauge Complete Wiring Kits RIK8 Included
Features 1.75" high temperature aluminum voice coil. Non-pressed Paper cone with high density NBR rubber surround.
Blue Power/Red Protection LED Indicator. Phase Switch: 0° or 180°. Low Pass Filter: 30Hz - 150Hz. Bass Boost: 0 - 6dB @ 50Hz. Subwoofer level remote control included.
Compact Dimensions: 13”x11.8”x11.8” (W*D*H)
If you are short on space, this is a great solution for you. The combination of amplifier and subwoofer all into one, makes this ideal for spatially challenged vehicles.
INTRODUCTION:
If you need to quickly add bass to a system or want to alleviate the hassle of separate amplifiers and subwoofers, then
Edge
SW8P & SW10P are the right ones for the job! They feature a 8” or 10” subwoofer and the same size passive radiators in a custom sealed enclosure and is powered by a mighty 350 Watt amplifier. The system is all-inclusive, so you only need to run power, ground and a signal from the source to get this baby moving. A control panel is used to adjust frequency, level and acoustic phase according to one’s own listening tastes. The system was designed to satisfy those who love the most demanding low frequency in a compact size, for use in any vehicle.
FEATURES:
"Closed-loop" design ensures optimum performance between woofer, passive radiator, amplifier and enclosure
A built-in 600 Max watt amplifier
Built-in passive radiator to enrich the bass & making the system more linear
Built-in 0°/180° phase switch
Separate low level and speaker level inputs
Built-in adjustable bass boost EQ
Adjustable 12db/Octave low pass crossover
Intelligent auto turn on/off function
Thermal and over/under voltage protection
High-efficiency, low current design
Remote bass level control included
Proprietary high output woofer
Constructed with 5/8" MDF
Large AWG input terminals
Covered with industrial heat activated vinyl
Packing & Delivery
We can do all kind of OEM packing! Such as: blister packing、neutral packing、hanging packing、bulk pack、consumer pack、large packing、foam-tray package, gift-wrap、plastic bag、zipper bag, etc.
