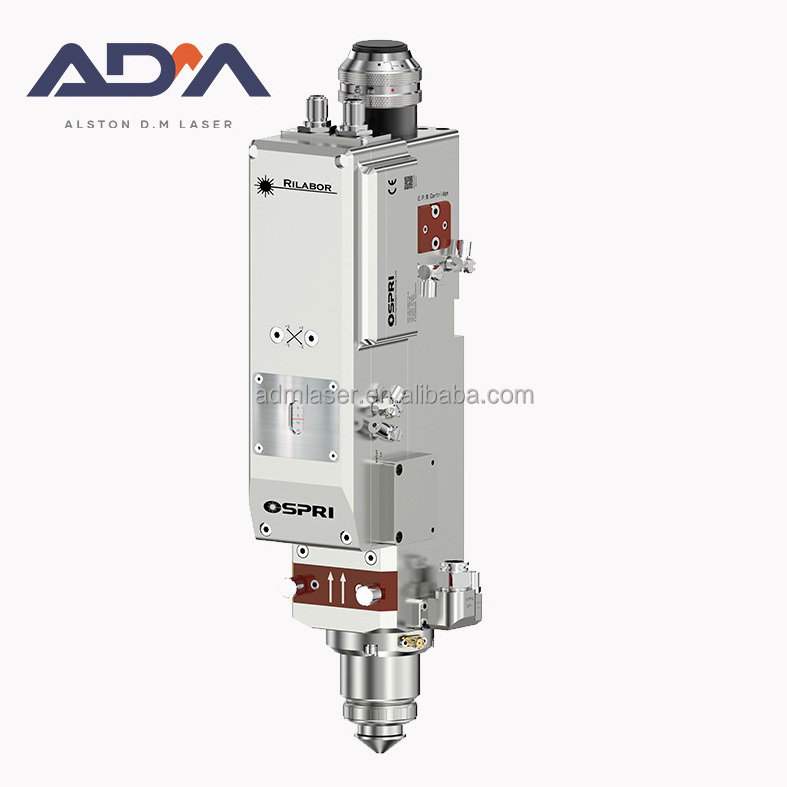

Ospri LC40LS lc40 fiber laser cutting head for 4kw fiber laser cutting machine

Ospri LC40LS lc40 fiber laser cutting head for 4kw fiber laser cutting machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Ospri

Weight (KG):: 8 KG

Product name:: fiber laser cutting head

Laser head:: Auto-Focus

Keyword:: CNC Fiber laser cutting head

Application:: Fiber Laser Cutting Machine

Power:: 4000w

Wavelength:: 1064mm

Certificate:: CE Certification

Package Type:: Carton Package

Used for:: Fiber Laser Marking Cutting Machine

Focal length:: 125/150

Quick Details

Place of Origin:: Jiangsu, China

Spare Parts Type:: cutting head

Marketing Type:: New Product 2021

Brand Name:: Ospri

Weight (KG):: 8 KG

Product name:: fiber laser cutting head

Laser head:: Auto-Focus

Keyword:: CNC Fiber laser cutting head

Application:: Fiber Laser Cutting Machine

Power:: 4000w

Wavelength:: 1064mm

Certificate:: CE Certification

Package Type:: Carton Package

Used for:: Fiber Laser Marking Cutting Machine

Focal length:: 125/150

Features

1.Rated Power——4000W 2. High-speed servo collimation zoom 3. Three protective mirrors are tightly sealed and dustproof 4. Adapt to standard QBH, QD interface 5. Convenient to replace the independent module of the focus protection window 6. Full optical temperature monitoring, air leakage monitoring, protection window installation monitoring

Specifications

Power Rating	Fiber laser≤4KW
Clear Aperture	36.1mm
Auto focus	-16mm~+12mm- 25mm~+20mm
Collimator Focal length	100mm
Focusing Focal length	150mm/125mm
Cover glass size	Collimation side: Φ21.5mm×2mm Focusing Side : Φ30mm×5mm
Assist gas pressure	<30bar
Weight	6.5kg

Cutting parameters

4000W Cutting Parameters
Mild Steel O2
Thickness (mm)	Cutting Power （W）	Focus （mm）	Cutting Gas	Gas pressure（bar）	Nozzle type (S-Single，D-Double)	Cutting Speed (M/Min)
1	1200	1	O2	6	S1.5	9--11
2	1800	2	O2	0.6-1.0	D1.0	5--6
3	3000	3	O2	0.6-1.0	D1.2	4--4.5
4	3200	3	O2	0.6-1.0	D1.2	3.2--3.8
5	3500	3	O2	0.6-1.0	D1.2	3--3.5
6	3500	3	O2	0.6-1.0	D1.2	2.8--3.2
8	3800	3	O2	0.6-1.0	D1.2	2.3--2.6
10	3800	3	O2	0.6-1.0	D1.2	2--2.2
12	3500	3	O2	0.6-1.0	D1.5	1--1.5
14	3500	3	O2	0.6-1.0	D2.5	0.85--1.1
16	3800	3	O2	0.6-1.0	D3.0	0.8--1
20	3800	4	O2	0.6-1.0	D3.5	0.6--0.9
22	4000	4	O2	0.6-1.0	D4.0	0.6--0.7
Mild Steel N2
Thickness (mm)	Cutting Power （W）	Focus （mm）	Cutting Gas	Gas pressure（bar）	Nozzle type (S-Single，D-Double)	Cutting Speed (M/Min)
1	4000	-1	N2	12	S1.5	40--50
2	4000	-1.5	N2	12	S2.0	18--22
3	4000	-2.5	N2	13	S2.0	15--18
4	4000	-3.5	N2	14	S2.0	8--10
5	4000	-4	N2	16	S2.5	4--5
Mild Steel Air
Thickness (mm)	Cutting Power （W）	Focus （mm）	Cutting Gas	Gas pressure（bar）	Nozzle type (S-Single，D-Double)	Cutting Speed (M/Min)
1	4000	-1	N2	16	S2.0	30--40
2	4000	-1.5	N2	16	S2.0	15--20
3	4000	-2.5	N2	16	S2.0	6--12
Stainless Steel N2
Thickness (mm)	Cutting Power （W）	Focus （mm）	Cutting Gas	Gas pressure（bar）	Nozzle type (S-Single，D-Double)	Cutting Speed (M/Min)
1	4000	-1	N2	12	S2.0	40--55
2	4000	-1.5	N2	12	S2.0	20--25
3	4000	-2.5	N2	13	S2.0	12--15
4	4000	-3.5	N2	16	S2.5	7--9
5	4000	-4	N2	16	S2.5	4--5.5
6	4000	-4.5	N2	16	S3.0	2.5--4
8	4000	-5.5	N2	16	S3.0	1.8--2.5
10	4000	-6.5	N2	20	S4.0	1.0--1.6
12	4000	-8	N2	20	S4.0	0.8--1.2
14	4000	-8	N2	20	S4.0	0.5--0.8
16	4000	3	N2	20	S5.0	0.25--0.35
Stainless Steel Air
Thickness (mm)	Cutting Power （W）	Focus （mm）	Cutting Gas	Gas pressure（bar）	Nozzle type (S-Single，D-Double)	Cutting Speed (M/Min)
1	4000	-1	Air	16	S2.0	40--55
2	4000	-1.5	Air	16	S2.0	20--25
3	4000	-2.5	Air	16	S2.0	12--15
4	4000	-3.5	Air	16	S2.5	7--9
5	4000	-4	Air	16	S2.5	4--5.5
6	4000	-4.5	Air	16	S3.0	2.5--4
8	4000	-5.5	Air	16	S3.0	1.8--2.5
10	4000	-6.5	Air	16	S4.0	1.0--1.6
12	4000	-8	Air	16	S4.0	0.8--1.2
AL N2
Thickness (mm)	Cutting Power （W）	Focus （mm）	Cutting Gas	Gas pressure（bar）	Nozzle type (S-Single，D-Double)	Cutting Speed (M/Min)
1	4000	-1.0	N2	12	S2.0	40--55
2	4000	-1.5	N2	12	S2.0	20--25
3	4000	-2.0	N2	12	S2.0	13--15
4	4000	-2.5	N2	13	S2.5	7--9
5	4000	-3.0	N2	14	S2.5	5--7
6	4000	-3.0	N2	14	S3.0	3--3.5
8	4000	-3.5	N2	15	S3.0	1.3--1.8
10	4000	-3.5	N2	15	S3.0	0.8--1
12	4000	-4.0	N2	16	S3.0	0.6--0.8
14	4000	3.0	N2	16	S5.0	0.25--0.4
AL Air
Thickness (mm)	Cutting Power （W）	Focus （mm）	Cutting Gas	Gas pressure（bar）	Nozzle type (S-Single，D-Double)	Cutting Speed (M/Min)
1	4000	-1.0	Air	16	S2.0	40--55
2	4000	-1.5	Air	16	S2.0	20--25
3	4000	-2.0	Air	16	S2.0	13--15
4	4000	-2.5	Air	16	S2.5	7--9
5	4000	-3.0	Air	16	S2.5	5--7
6	4000	-3.0	Air	16	S3.0	3--3.5
Copper
Thickness (mm)	Cutting Power （W）	Focus （mm）	Cutting Gas	Gas pressure（bar）	Nozzle type (S-Single，D-Double)	Cutting Speed (M/Min)
1	4000	0	N2	8	S1.5	22-28
2	4000	-1	O2	10	S1.5	10--15
3	4000	-2.5	O2	10	S1.5	4--5.5
4	4000	-3	O2	10	S2.0	3--3.5
5	4000	-4	O2	10	S2.5	1.8--2
6	4000	-4.5	O2	18	S3.0	1--1.4
Brass N2
Thickness (mm)	Cutting Power （W）	Focus （mm）	Cutting Gas	Gas pressure（bar）	Nozzle type (S-Single，D-Double)	Cutting Speed (M/Min)
1	4000	-1.0	N2	12	S2.0	26--40
2	4000	-2.0	N2	12	S2.0	15--20
3	4000	-2.5	N2	13	S2.0	8--12
4	4000	-3	N2	13	S2.5	5--6.5
5	4000	-3.5	N2	14	S2.5	3--4
6	4000	-4.0	N2	15	S2.5	2.5--3
8	4000	-4.5	N2	16	S2.5	1--1.5
10	4000	-5.5	N2	17	S3.0	0.6--0.8
Note: 1) All the lens inside the laser head need clean. 2) Cutting gas purity meets the requirements O2:99.95%,N2:99.99%. 3) Plate meets laser cutting requirements (smooth surface, no rust, no paint, etc.) 4) AL is high reflection lens, Mass produce thickness is 1-8MM.
