Quick Details
-
Power:
-
20KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KATVO
-
Maximum Digging Height:
-
2740mm
-
Maximum Digging Depth:
-
2000mm
-
Machine Weight:
-
1350 kg
-
Max Digging Radius:
-
2400mm
-
Rated Speed:
-
0-4km/h
-
Product Name:
-
Mini Excavator
-
Type:
-
Hydraulic Crawlerl Excavator
-
Engine Model:
-
Changchai 390
-
Color:
-
Customized
-
Overall Dimension:
-
2400*1100*2300mm
-
Radius of Gyration:
-
1550mm
-
Max Dumping Height:
-
2400mm
-
Min Ground Clearance:
-
400mm
-
Chassis Width:
-
1100mm
-
After-sales Service:
-
Video technical support, Online support, Free spare parts,
Quick Details
-
Operating Weight:
-
1.5TON
-
Bucket capacity:
-
0.03m3
-
Engine Brand:
-
CHANGCHAI
-
Power:
-
20KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KATVO
-
Maximum Digging Height:
-
2740mm
-
Maximum Digging Depth:
-
2000mm
-
Machine Weight:
-
1350 kg
-
Max Digging Radius:
-
2400mm
-
Rated Speed:
-
0-4km/h
-
Product Name:
-
Mini Excavator
-
Type:
-
Hydraulic Crawlerl Excavator
-
Engine Model:
-
Changchai 390
-
Color:
-
Customized
-
Overall Dimension:
-
2400*1100*2300mm
-
Radius of Gyration:
-
1550mm
-
Max Dumping Height:
-
2400mm
-
Min Ground Clearance:
-
400mm
-
Chassis Width:
-
1100mm
-
After-sales Service:
-
Video technical support, Online support, Free spare parts,

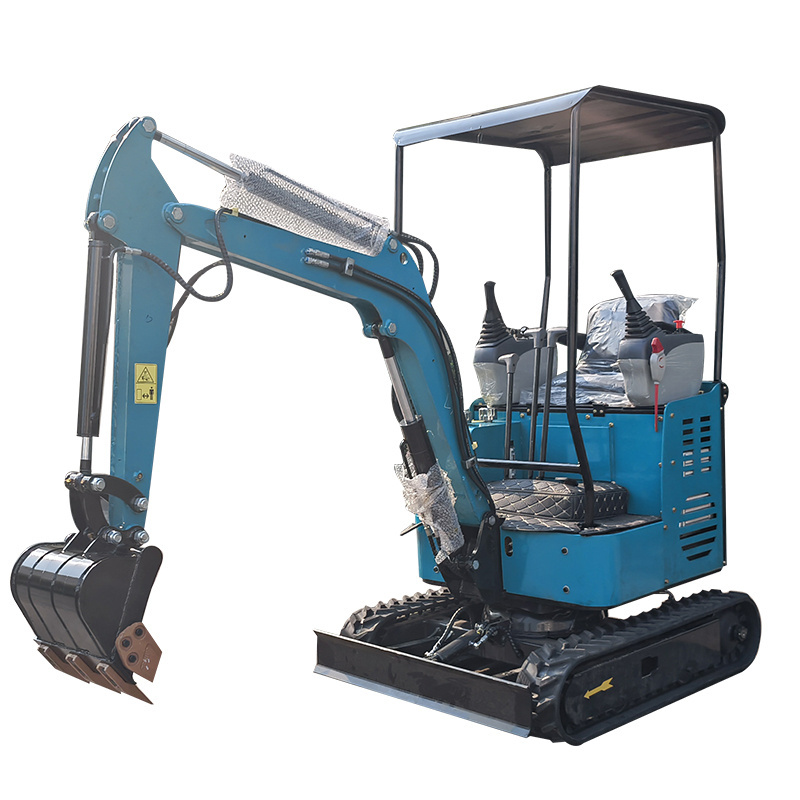

Products Description
Our small excavator is suitable for landscaping, orchard nursery, farmland transformation, mountain planting trees, indoor and concrete crushing, etc., and it has a quick return and low fuel consumption.
Advantages:
1.With its small size, flexibility, versatility and high efficiency, the agricultural mini excavator machine has become an ideal equipment for earthmoving engineering applications, and the user demand is expanding.
2.The excavator structure is made by superior quality steel with professional designing. So the excavator Boom arm can be
withstood strong impact and pressure in the harsh working situation.
3.Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.Optional side swing and retractable chassis.
1.With its small size, flexibility, versatility and high efficiency, the agricultural mini excavator machine has become an ideal equipment for earthmoving engineering applications, and the user demand is expanding.
2.The excavator structure is made by superior quality steel with professional designing. So the excavator Boom arm can be
withstood strong impact and pressure in the harsh working situation.
3.Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.Optional side swing and retractable chassis.
|
specification
|
|
|
|
|||
|
Weight
|
1350kg
|
Tyre gauge
|
1100mm
|
|||
|
Bucket capacity
|
0.03m3
|
Track length
|
1300mm
|
|||
|
Working device mode
|
backhoe
|
Platform ground clearance
|
400mm
|
|||
|
Power
|
10.3kw
|
Width of chassis
|
1100mm
|
|||
|
Max. digging radius
|
2400mm
|
Width of track
|
180mm
|
|||
|
Max. digging depth
|
2000mm
|
Over length
|
2400mm
|
|||
|
Max. digging height
|
2740mm
|
Machine height
|
2300mm
|
|||
|
Max. dumping height
|
2400mm
|
Min. gyration radius
|
1550mm
|
|||
|
Overall Dimensions
|
|
2400mm* 1100mm*2300mm
|
|
|||
Details Images
Swing Boom
The side swing of the boom (deflection device), the left and right swing arms are 60 degrees each,
and both sides can easily dig to the outer edge of the track, which can be used in space restricted
positions such as walls and corners.
Adjustable Track
1.The width adjustment range of the retractable walking frame is 850mm-1100mm,which improves the stability of the whole machine.
2.The exchange of steel track and rubber track can be realized to meet the needs of various working conditions.
2.The exchange of steel track and rubber track can be realized to meet the needs of various working conditions.
Adjustable Seat
The seat cushion is large, the backrest is raised, and the ride comfort is better. The seat can be adjusted back and forth to meet the driving requirements of drivers of different sizes.
Brand Engine
The whole system is equipped with big brand kubota engine, strong power.
With imported hydraulic system, high configuration, superior performance, low fuel consumption.
Walking Device
The walking part has been strengthened as a whole.
Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
Strengthen Design
Related Products
|
MODEL
|
KV08
|
KV09
|
KV10
|
KV15
|
|
Total Weight
|
650kg
|
750kg
|
885kg
|
1200kg
|
|
Rated Power
|
7kw
|
7kw
|
7kw
|
11.4kw
|
|
Engine
|
Koop 192F
|
Koop 192F
|
Koop 192F
|
Youp 2V80
|
|
Bucket Capacity
|
0.02m³
|
0.02m³
|
0.025m³
|
0.025m³
|
|
Max Digging Radius
|
2050mm
|
2050mm
|
2400mm
|
2900mm
|
|
Max Digging Depth
|
1200mm
|
1200mm
|
1600mm
|
1700mm
|
|
Max Digging Height
|
2350mm
|
2350mm
|
2490mm
|
2450mm
|
|
Min Gyration Radius
|
1100mm
|
1100mm
|
1190mm
|
1500mm
|
|
Width of Chassis
|
730mm
|
730mm
|
940mm
|
980mm
|
|
MODEL
|
KV17
|
KV18
|
KV20
|
KV25
|
|
Total Weight
|
1350kg
|
1450kg
|
1800kg
|
2480kg
|
|
Rated Power
|
10.3kw
|
10.4kw
|
13.6kw
|
15kw
|
|
Engine
|
Changchai 390
|
Kubota D722
|
Kubota D902
|
Kubota D1105
|
|
Bucket Capacity
|
0.03m³
|
0.035m³
|
0.045m³
|
0.066m³
|
|
Max Digging Radius
|
2400mm
|
2400mm
|
3470mm
|
2900mm
|
|
Max Digging Depth
|
1850mm
|
1850mm
|
2150mm
|
2320mm
|
|
Max Digging Height
|
2750mm
|
2750mm
|
3275mm
|
3880mm
|
|
Min Gyration Radius
|
1190mm
|
1200mm
|
1440mm
|
1850mm
|
|
Width of Chassis
|
1100mm
|
1100mm
|
1200mm
|
