Quick Details
-
Brand Name:
-
Wonvi
-
Model Number:
-
V20
-
Dimension (L x W x H):
-
279.9*991.4*402.2mm
-
Description:
-
3-way full-range active enclosure
-
Usable bandwidth (-10 dB):
-
46 Hz - 20 kHz
-
System Sensitivity:
-
HF:108dB MF:100dB LF:96dB
-
Rated power:
-
HF:140w MF:800W LF:1500W
-
Material:
-
Birch Plywood
-
Transducers:
-
HF:2*1.75" MF: 4*5.5" LF:2*10"
-
Nominal impedances:
-
HF:16ohms MF:16ohms LF:2*16ohms
-
Certificate:
-
CE, RoHS, CCC
-
Components:
-
10inch
-
HS Code:
-
8518210000
Quick Details
-
Power:
-
HF:140w MF:800W LF:1500W
-
Frequency Range (Hz):
-
46 Hz - 20 kHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wonvi
-
Model Number:
-
V20
-
Dimension (L x W x H):
-
279.9*991.4*402.2mm
-
Description:
-
3-way full-range active enclosure
-
Usable bandwidth (-10 dB):
-
46 Hz - 20 kHz
-
System Sensitivity:
-
HF:108dB MF:100dB LF:96dB
-
Rated power:
-
HF:140w MF:800W LF:1500W
-
Material:
-
Birch Plywood
-
Transducers:
-
HF:2*1.75" MF: 4*5.5" LF:2*10"
-
Nominal impedances:
-
HF:16ohms MF:16ohms LF:2*16ohms
-
Certificate:
-
CE, RoHS, CCC
-
Components:
-
10inch
-
HS Code:
-
8518210000
Products Description
VTX V20
Double 10 Inch Line Array Speakers
Rated power (continuous pink noise / program / peak): HF:140w MF:800W LF:1500W , 46 Hz - 20 kHz Usable bandwidth (-10 dB),2*1.75"HF+4*5.5"MF+2*10"LF
Rated power (continuous pink noise / program / peak): HF:140w MF:800W LF:1500W , 46 Hz - 20 kHz Usable bandwidth (-10 dB),2*1.75"HF+4*5.5"MF+2*10"LF

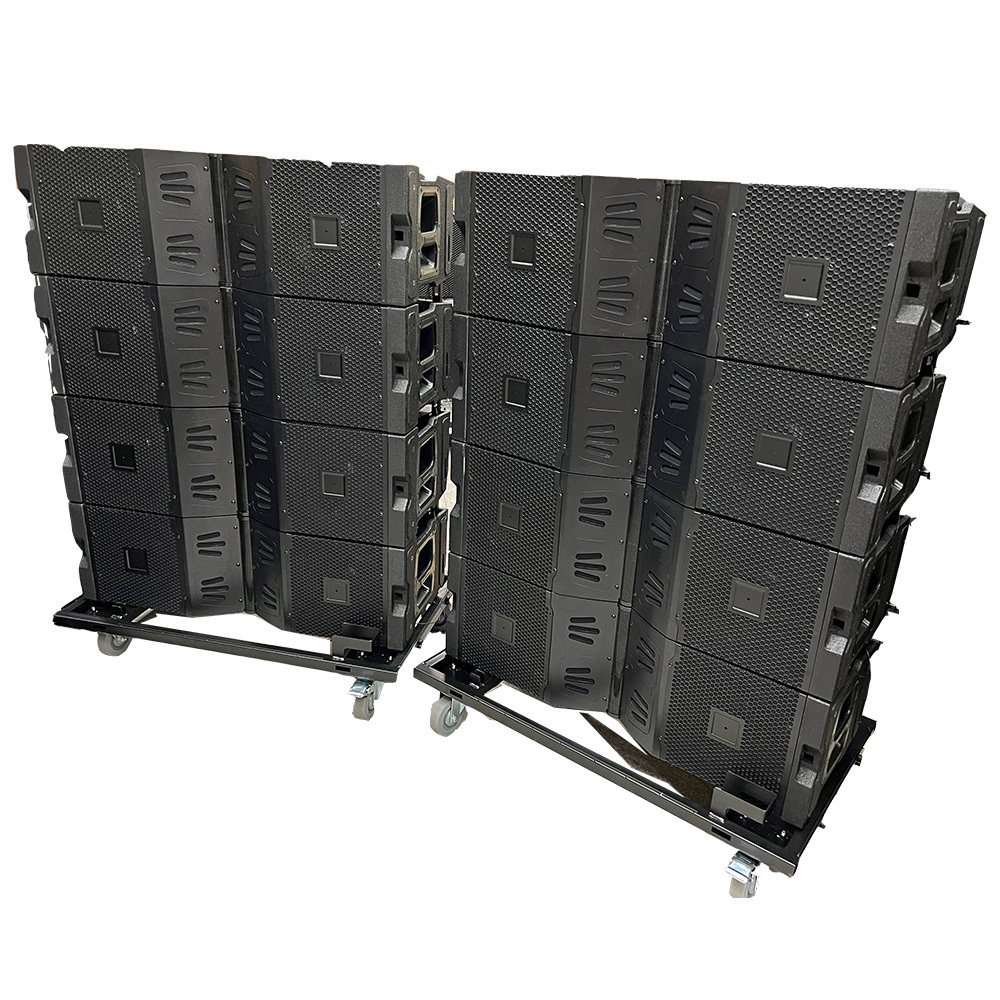

VTX V20 Line Array
The VTX V20 3-way full-range active enclosure. with 2*1.75"HF+4*5.5"MF+2*10"LF .the VTX V20 can perform in the most demanding situations. The housing of the VTX V20-matches the VTX S25 array systems, enabling to build stacked systems in a perfect combination.
Product Specification
Features:
—
Description: 3-way full-range active enclosure
— Usable bandwidth (-10 dB): 46 Hz - 20 kHz
— System sensitivity:HF:108dB MF:100dB LF:96dB
— Nominal directivity: Horizontal 110° Vertical Array shape dependent 0°- 12.5°
— Transducers: HF:2*1.75" MF: 4*5.5" LF:2*10"
— Usable bandwidth (-10 dB): 46 Hz - 20 kHz
— System sensitivity:HF:108dB MF:100dB LF:96dB
— Nominal directivity: Horizontal 110° Vertical Array shape dependent 0°- 12.5°
— Transducers: HF:2*1.75" MF: 4*5.5" LF:2*10"
—
Nominal impedances:HF:16ohms MF:16ohms LF:2*16ohms
— Rated power (continuous pink noise / program / peak): HF:140w MF:800W LF:1500W
— Baltic birch cabinet
— Rated power (continuous pink noise / program / peak): HF:140w MF:800W LF:1500W
— Baltic birch cabinet
|
Specification Sheet:
|
|
|
|
Description
|
3-way full-range active enclosure
|
|
|
Usable bandwidth (-10 dB)
|
46 Hz - 20 kHz
|
|
|
System Sensitivity
|
HF:108dB MF:100dB LF:96dB
|
|
|
Rated power (continuous pink noise / program / peak)
|
HF:140w MF:800W LF:1500W
|
|
|
Transducers
|
HF:2*1.75" MF: 4*5.5" LF:2*10"
|
|
|
Nominal impedances
|
HF:16ohms MF:16ohms LF:2*16ohms
|
|
|
Dimensions
|
279.9mm*911.4mm*402.2mm
|
|
|
Weight
|
40KG
|
|
