Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
MH
-
Model Number:
-
MH-PVS14
-
Weight:
-
370g
-
Effective Visual Distance:
-
220-250
-
Field of view, deg:
-
40°±2
-
Lens system:
-
26.8mm F/1.2
-
Focus range, m:
-
0.25m to infinity
-
Diopter adjustment, D:
-
0
-
Eye relief distance, mm:
-
15
-
Power supply:
-
1AA batteries 1.5v/1 CR 123 batteries
-
Battery life, hour:
-
AA-up to 40,CR123-up to 80
-
Dimension, mm:
-
115x62x42
-
Weight, g:
-
370
-
Photocathode sensitivity,μA/lm:
-
600-900
Quick Details
-
Size:
-
115x62x42mm
-
Type:
-
Monocular
-
Magnification:
-
1x
-
Warranty:
-
1 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
MH
-
Model Number:
-
MH-PVS14
-
Weight:
-
370g
-
Effective Visual Distance:
-
220-250
-
Field of view, deg:
-
40°±2
-
Lens system:
-
26.8mm F/1.2
-
Focus range, m:
-
0.25m to infinity
-
Diopter adjustment, D:
-
0
-
Eye relief distance, mm:
-
15
-
Power supply:
-
1AA batteries 1.5v/1 CR 123 batteries
-
Battery life, hour:
-
AA-up to 40,CR123-up to 80
-
Dimension, mm:
-
115x62x42
-
Weight, g:
-
370
-
Photocathode sensitivity,μA/lm:
-
600-900
Contact Engineer Manager
Sales engineer :
Sarah Du
Whatsapp/WeChat:
0086-187-2939-5177
Email:
sarah@mh-elec.com
Product description

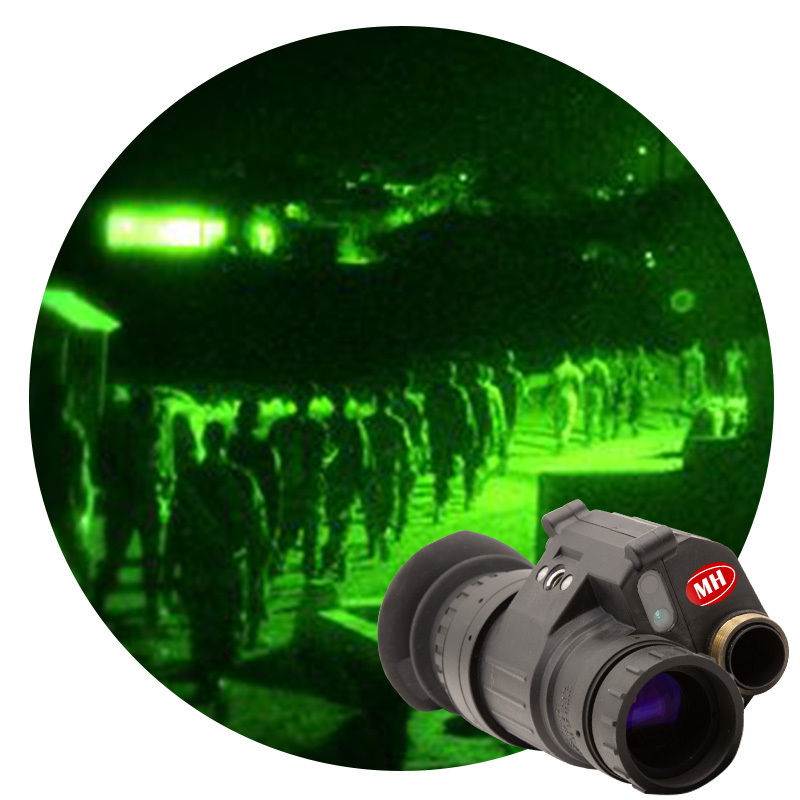

MH-PVS-14 is portable and multi -functional night vision monocular,adopt Generation2/3 image intensifier tube, with
high resolution,small in size, light in weight
. Magnification can be changed by replacing different objective lens.This device guarantees quality
image for observation at night.
Product advantage
Product Specification
|
MH-PVS14
|
|
|
|
Magnification
|
1x
|
|
|
Field of view, deg
|
40°±2
|
|
|
Lens system
|
26.8mm F/1.2
|
|
|
Focus range, m
|
0.25m to infinity
|
|
|
Diopter adjustment, D
|
0
|
|
|
Eye relief distance, mm
|
15
|
|
|
Power supply
|
1AA batteries 1.5v/1 CR 123 batteries
|
|
|
Battery life, hour
|
AA-up to 40,CR123-up to 80
|
|
|
Dimension, mm
|
115x62x42
|
|
|
Weight, g
|
370
|
|
|
GEN III IMAGE INTENSIFIER TUBES
|
|
|
|
Classification
|
OMNI III
|
|
|
Photocathode type
|
18mm S-25
|
|
|
Photocathode sensitivity,μA/lm
|
600-900
|
|
|
Resolution , lp/mm
|
57-70
|
|
|
Luminous gain, fl/fcd
|
19000-30000
|
|
|
Signal-to-noise
|
20:1 or better
|
|
|
Keep time, year
|
10
|
|
|
Tube reliability standard, hour
|
10000
|
|
|
EFFECTIVE DISTANCE
|
|
|
|
Detection range, m
|
220-250
|
|
|
Recognition range, m
|
145-180
|
|
|
ENVIRONMENTAL DATA
|
|
|
|
Operating temperature, ℃
|
-40℃ to +50℃
|
|
|
Storage temperature , ℃
|
0℃ to +50℃
|
|
|
Immersion, hour
|
1 meter for 0.5(optional）
|
|
|
Humidity, ％
|
up to 98%
|
|
