Quick Details
-
Brand Name:
-
YUGONG
-
Year:
-
2021
-
Power (kW):
-
2
-
Weight (KG):
-
300
-
Name:
-
Pipe Bender Easy Manual Electric Steel Tube Pipe Bending Machine
-
Power:
-
CNC
-
Product name:
-
Hydraulic Cnc Bending Machine
-
Usage:
-
Pipe and Tube Bending
-
Voltage:
-
380V/50Hz/3phase
-
Motor power:
-
2-4KW
-
MOQ:
-
1set
-
Available bend profiles:
-
Round Pipe Angle Steel Rolling Machine
-
Max bending angles:
-
180
Quick Details
-
Max. Bending Angle (Deg):
-
360
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Year:
-
2021
-
Power (kW):
-
2
-
Weight (KG):
-
300
-
Name:
-
Pipe Bender Easy Manual Electric Steel Tube Pipe Bending Machine
-
Power:
-
CNC
-
Product name:
-
Hydraulic Cnc Bending Machine
-
Usage:
-
Pipe and Tube Bending
-
Voltage:
-
380V/50Hz/3phase
-
Motor power:
-
2-4KW
-
MOQ:
-
1set
-
Available bend profiles:
-
Round Pipe Angle Steel Rolling Machine
-
Max bending angles:
-
180

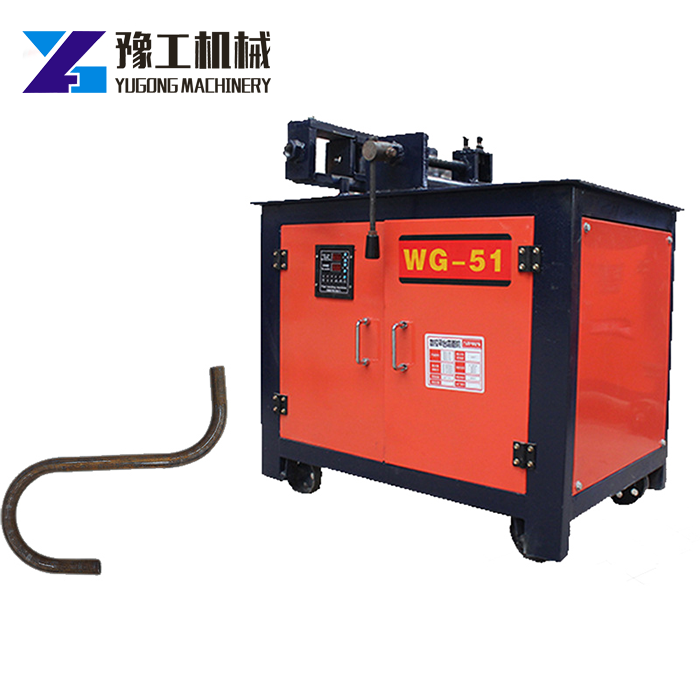

Automatic Hydraulic Pipe Bender Easy Manual Electric Steel Tube Pipe Bending Machine
|
Steel Pipe Bending Machine |
|||
|
|
Model |
WG-26 |
|
|
Diamtere of pipe |
10-26mm |
||
|
Power |
2.2KW |
||
|
Rotating speed |
20r/min |
||
|
Voltage |
380v,50hz |
||
|
QTY of bend angles |
10PCS |
||
|
Thickness of Pipe |
2.0mm |
||
|
Size(mm) |
800*650*900 |
||
|
Weight |
180kg |
||
|
Model |
WG- 38 |
|
|
|
Diamtere of pipe |
16-38 mm |
||
|
Power |
3 KW |
||
|
Rotating speed |
16 r/min |
||
|
Voltage |
380v,50hz |
||
|
QTY of bend angles |
10PCS |
||
|
Thickness of Pipe |
3 .0mm |
||
|
Size(mm) |
85 0* 68 0* 9 00 |
||
|
Weight |
26 0kg |
||
|
|
Model |
WG- 51 |
|
|
Diamtere of pipe |
1 6-51 mm |
||
|
Power |
3 KW |
||
|
Rotating speed |
8 r/min |
||
|
Voltage |
380v,50hz |
||
|
QTY of bend angles |
10PCS |
||
|
Thickness of Pipe |
3 .0mm |
||
|
Size(mm) |
90 0* 70 0*9 5 0 |
||
|
Weight |
30 0kg |
||
|
Model |
WG- 7 6 |
|
|
|
Diamtere of pipe |
1 6 - 7 6mm |
||
|
Power |
4 KW |
||
|
Rotating speed |
6 r/min |
||
|
Voltage |
380v,50hz |
||
|
QTY of bend angles |
10PCS |
||
|
Thickness of Pipe |
3 .0mm |
||
|
Size(mm) |
9 00* 80 0* 10 00 |
||
|
Weight |
40 0kg |
||
Details
1. Gear transmission , wear resistance.
2. Pure copper motor, durable and powerful
3. Abrasives are made of steel for durability
4. The pressing device can be operated by one person, and the tube is pressed tightly, which is not easy to be deformed.
5. Intelligent numerical control chip, the angle input is digitized, and 9 sets of bending angles can be saved at the same time.
Features
1. Smart chip control
2. Configurable intelligent control system with fast response
3. Can be molded at one time, suitable for mass production
4. During the process of tube bending , the wheel mold rotates, and the hydraulic cylinder supports the roller to advance and retreat.
5. For pipes of different outer diameters, only need to change different abrasive tools.
6. It can bend the angle of 0-180 °, the angle can be controlled.
If you don't know how to test the tube bending radius,please check the picture below.
WG-26/38/51/78 steel pipe bending machine is mainly used for the variety of materials of different thickness of various diameters of steel pipe,stainless steel pipe .
This series machine only used for bending the tube angles from 5 to 180 degrees.If you want to bending arc,we have another series tube bender machine.
