Quick Details
-
Product name:
-
Motorcycle Speedometer Odometer Tachometer
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUPP
-
Warranty:
-
1 year
-
Product name:
-
Motorcycle Speedometer Odometer Tachometer
-
Certification:
-
CE
Products Description
|

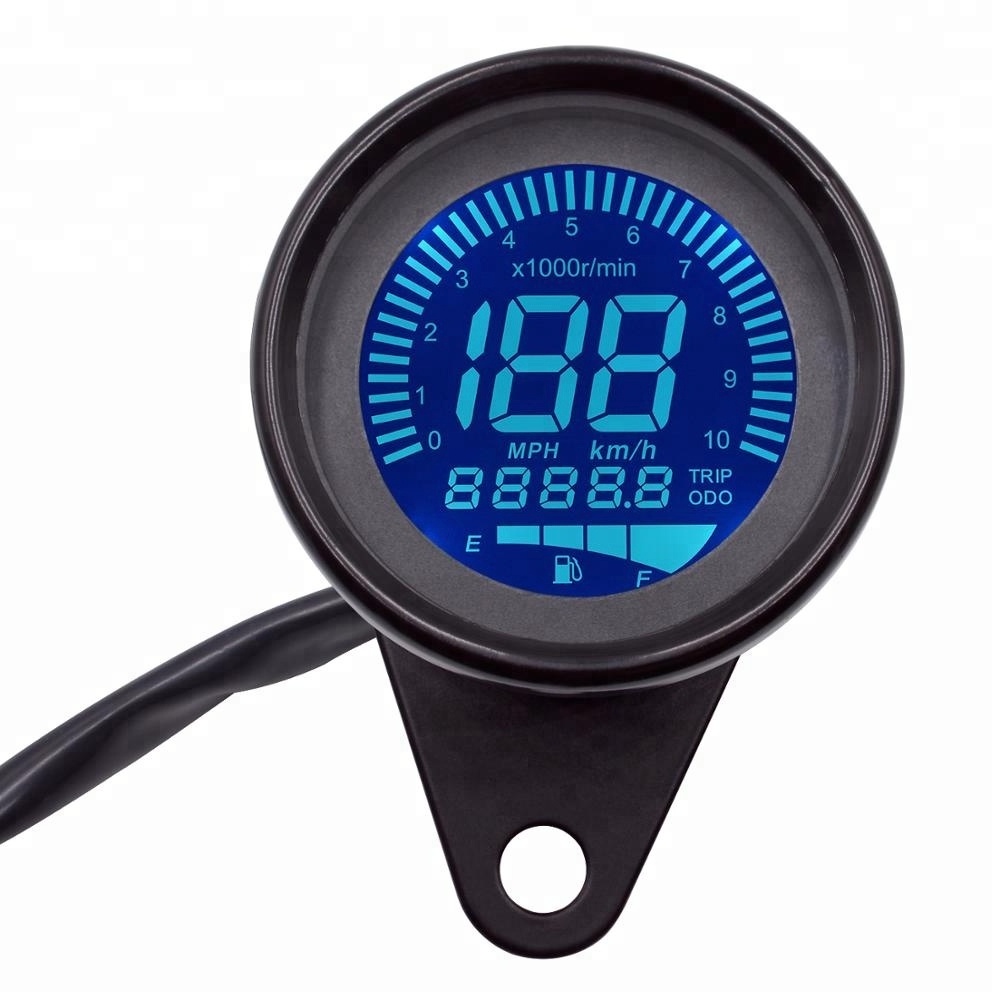

Product Name
|
Motorcycle universal multi-function refitted instrument
tachometer/odometer/fuel gauge/speedometer combination
|
|
Product Model
|
CS-636B1
|
|
Net Weight
|
236G
|
|
Gross Weight
|
268G
|
|
Product Size
|
5.5*6.5*7.5cm
|
|
Product Material
|
Aluminum alloy material
|
|
Operating Voltage
|
12V
|
|
Installation Scope
|
12V motorcycle
|
Product function：
【2】 Tachometer, maximum display 10000 rpm
【3】 Oil gauge, with two lines (8-98 Ω) and three lines (33-565 Ω)
【4】 Odometer, including cumulative ODO and zero return TRIP, displays ODO by default
Setting method:
【1】
Backlight, 7 colors in total, can be switched freely:
press and hold the key for 3 seconds to switch the backlight color when the odometer is ODO
【2】
Switch between KM/H and MPH:
*press and hold the key and do not release the switch again, the screen displays P0000, and then the bit 0 flashes;
*Long press and hold to skip to the tenth position 0 and flash, the short safety tenth position is displayed as 1, and then long press and hold to skip to the hundredth position to flash, and short press 6 and the hundredth position is displayed as 6;
*Press and hold the thousand-bit flash again, press and hold the thousand-bit display for 6 times, then the screen will display 00466, which means 46.6HZ corresponds to 60KM/H;
*Short press to skip (this item does not need to be set). At this time, the screen displays 10011001 to indicate KM/H. If you want to switch to MPH, long press to flash one bit, and long press to switch to 1002 to indicate that it has been set to MPH. Short press to skip to the next item
【3】
To set the number of rotating speed cylinders
(continue with the above step), press the screen for a short time to display 2002,
which means that it is now 2 cylinders (166HZ corresponds to 10 * 1000RPM/MIN), press the screen for a short time to skip the long press of one position flash, and then press the long press of one position 2 to switch to 4, which means that it has been switched to 4 cylinders (333HZ corresponds to 10 * 1000RPM/MIN), and press the screen for a short time to skip to the next item 【4】 Set the oil meter (continue with the above steps) . Short press the screen to display 3002, which means it is a 2-wire oil meter at this time. Short press all settings to save and exit. Long press the single digit to flash, and long press the display 3003, which
means it has been switched to a 3-wire oil meter. Short press to save and exit.
which means that it is now 2 cylinders (166HZ corresponds to 10 * 1000RPM/MIN), press the screen for a short time to skip the long press of one position flash, and then press the long press of one position 2 to switch to 4, which means that it has been switched to 4 cylinders (333HZ corresponds to 10 * 1000RPM/MIN), and press the screen for a short time to skip to the next item 【4】 Set the oil meter (continue with the above steps) . Short press the screen to display 3002, which means it is a 2-wire oil meter at this time. Short press all settings to save and exit. Long press the single digit to flash, and long press the display 3003, which
means it has been switched to a 3-wire oil meter. Short press to save and exit.
