Quick Details
-
Chip Material:
-
INGAN
-
Input Voltage(V):
-
110v-380v customized
-
Product Weight（kg）:
-
15
-
Luminous Intensity:
-
100
-
Luminous Flux(lm):
-
10
-
Optical Attenuation(%):
-
10
-
Power:
-
1080W
-
Power Dissipation:
-
10
-
Viewing Angle(°):
-
55
-
Color Rendering Index(Ra):
-
10
-
Color Temperature:
-
55
-
Operating Temperature(℃):
-
-10 - 50
-
Storage Temperature(℃):
-
-10 - 50
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HEIGHT-LED
-
Product Name:
-
High Efficiency 365nm UV Led Array Curing Lamp
-
UV Wavelength:
-
365nm customized
-
Curing area:
-
500*400mm customized
-
Working life:
-
25000-30000H
-
Electric power:
-
1800W
-
Dimension:
-
L570*W406*H88mm
-
Cooling method:
-
Fan cooling/ Water Cooling
-
Main parts:
-
Controller&Lamp&Power Adapt
-
Package Type:
-
carton or wood case
Quick Details
-
Warranty(Year):
-
1-Year
-
Support Dimmer:
-
Yes
-
Luminous Efficacy(lm/w):
-
100
-
Chip Material:
-
INGAN
-
Input Voltage(V):
-
110v-380v customized
-
Product Weight（kg）:
-
15
-
Luminous Intensity:
-
100
-
Luminous Flux(lm):
-
10
-
Optical Attenuation(%):
-
10
-
Power:
-
1080W
-
Power Dissipation:
-
10
-
Viewing Angle(°):
-
55
-
Color Rendering Index(Ra):
-
10
-
Color Temperature:
-
55
-
Operating Temperature(℃):
-
-10 - 50
-
Storage Temperature(℃):
-
-10 - 50
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HEIGHT-LED
-
Product Name:
-
High Efficiency 365nm UV Led Array Curing Lamp
-
UV Wavelength:
-
365nm customized
-
Curing area:
-
500*400mm customized
-
Working life:
-
25000-30000H
-
Electric power:
-
1800W
-
Dimension:
-
L570*W406*H88mm
-
Cooling method:
-
Fan cooling/ Water Cooling
-
Main parts:
-
Controller&Lamp&Power Adapt
-
Package Type:
-
carton or wood case

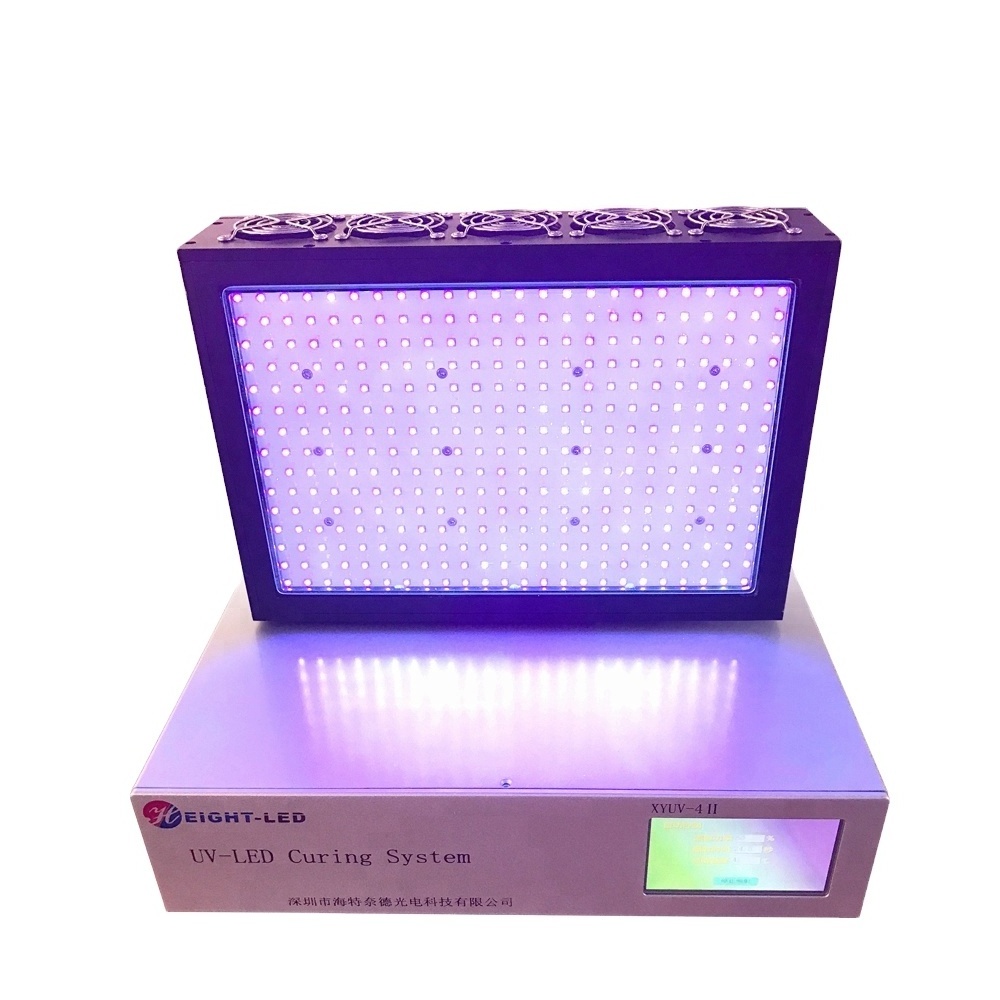

High Efficiency 365nm UV Led Array Curing Lamp
Product Description
Controller dimension draft
Specification
For Controller(XYUV-4II):
Panel display,LCD operation, real-time monitoring of the working status of the irradiation head
Temperature monitoring
External I/O control
Power supply: 110/220VAC 50/60HZ
Dimension: L384*W284*H90mm
Power 0-100% adjustable
Temperature monitoring
External I/O control
Power supply: 110/220VAC 50/60HZ
Dimension: L384*W284*H90mm
UV LED head（HTLD-S600-500X400-365）:
|
Wavelength（±5nm）：
|
365nm
|
|
Electric power：
|
1800W
|
|
Curing area：
|
500x400mm
|
|
Power intensity:
|
600-300mW/cm2(10mm distance)
|
|
Cooling method:
|
fan cooling
|
|
Best Curing distance：
|
10-20mm
|
|
Dimension:
|
L570*W406*H88mm
|
Product Application
Products Advantages
UV LED and Mercury Lamp Parameters Comparison
|
Project
|
Mercury UV Lamp
|
LED UV Lamp
|
|
Life
|
≤1000 Hours
|
≥20000 Hours
|
|
Applicability
|
can not be used in thermal materials
|
Almost all materials
|
|
Start
|
Slow start,completely cooling when start again
|
Instant ON/OFF
|
|
Volume
|
Large volume
|
Small volume,easy to carry and install
|
|
Stability
|
not good
|
good
|
|
Maintenance
|
Difficult
|
Easy
|
|
Energy consumption
|
High
|
low consumption about 1/6 of mercury lamp
|
|
Thermal effects
|
High temperature
|
Cold light source
|
|
Switch
|
Constant light
|
Arbitrary switch
|
|
External control
|
No
|
I/O signal
|
|
Safety
|
Explosive
|
Stable
|
|
Ozon
|
A lot
|
No
|
|
Environment
|
Harmful gases
|
No harmful gases
|
|
Benefits of HEIGHT-LED Curing Systems
|
|
|
|
|
||||
|
1. Faster curing: HEIGHT-LED Curing Systems industry-leading dose output supports the market’s fastest printing speeds.
|
|
|
|
|
||||
|
2. No ozone, no mercury: HEIGHT-LED Curing Systems produce no ozone, so there are no air extraction requirements.
|
|
|
|
|
||||
|
3. Reduced energy consumption: Higher electrical efficiency of LEDs and instant on/off switching allow typical energy savings over 80%.
|
|
|
|
|
||||
|
4. Long work life: Over 20000 hours.
|
|
|
|
|
||||
